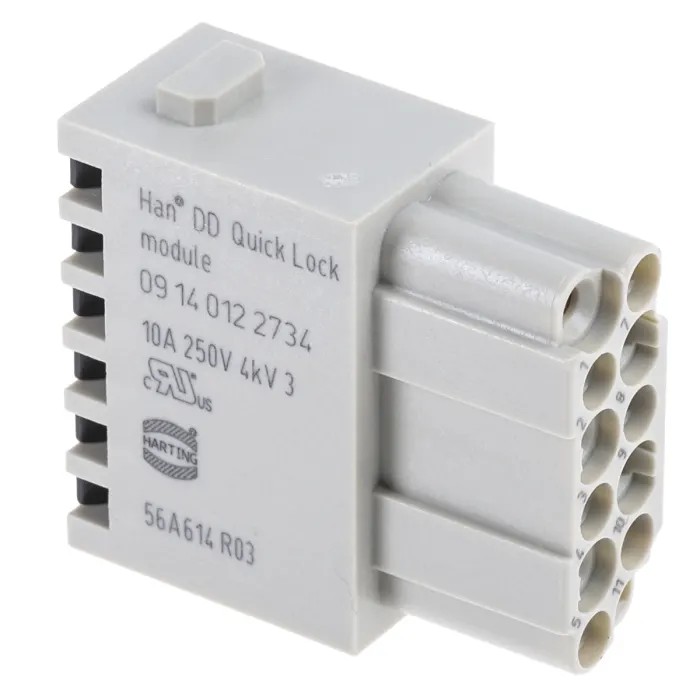

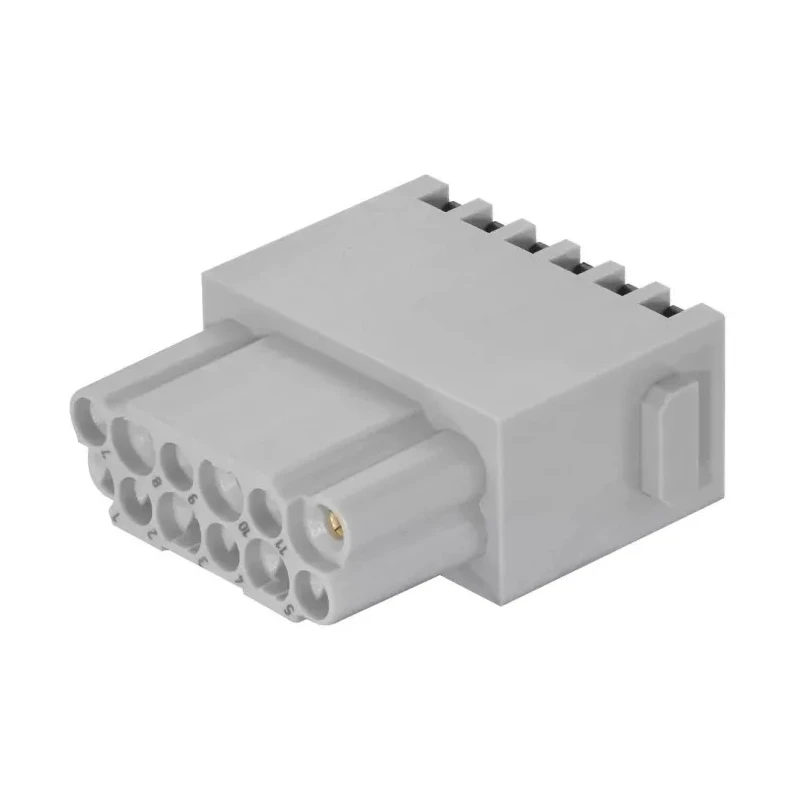

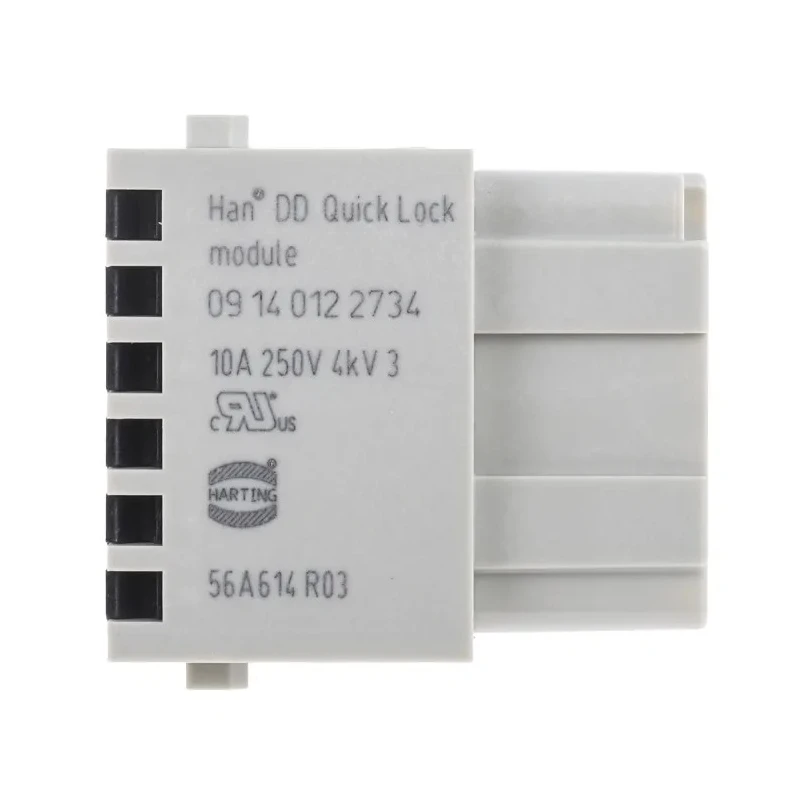

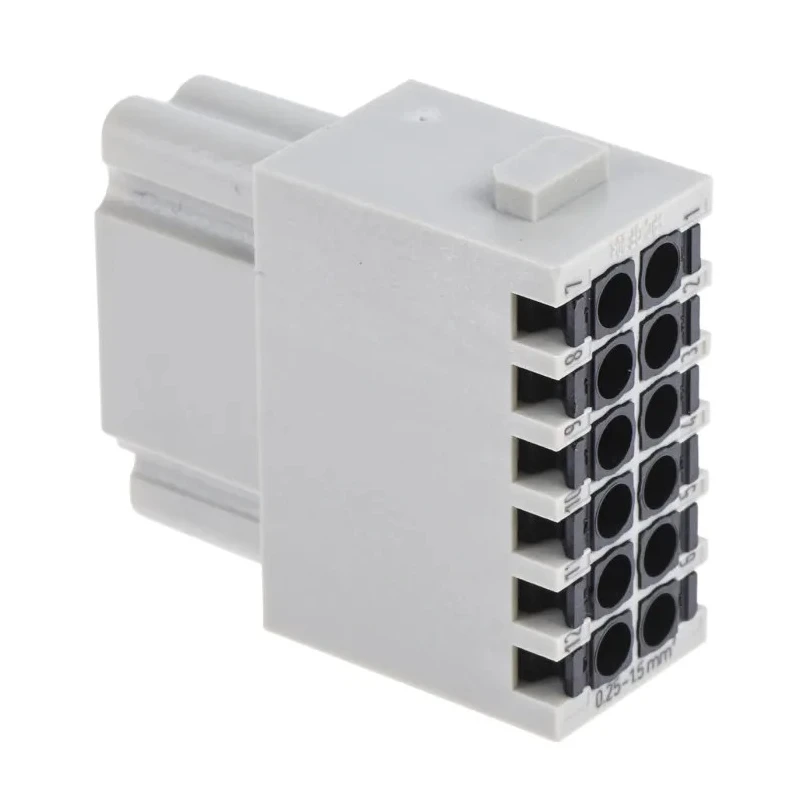

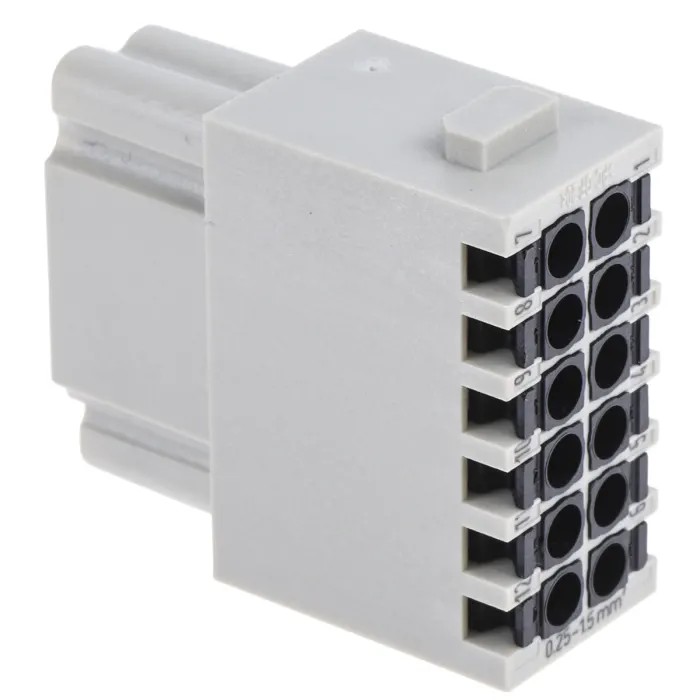

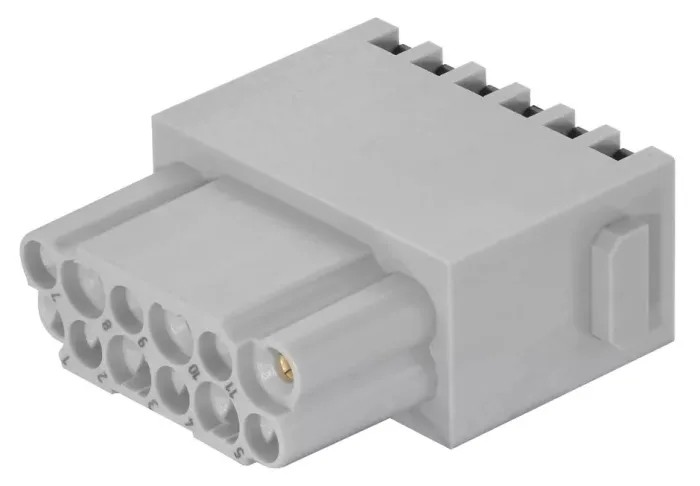

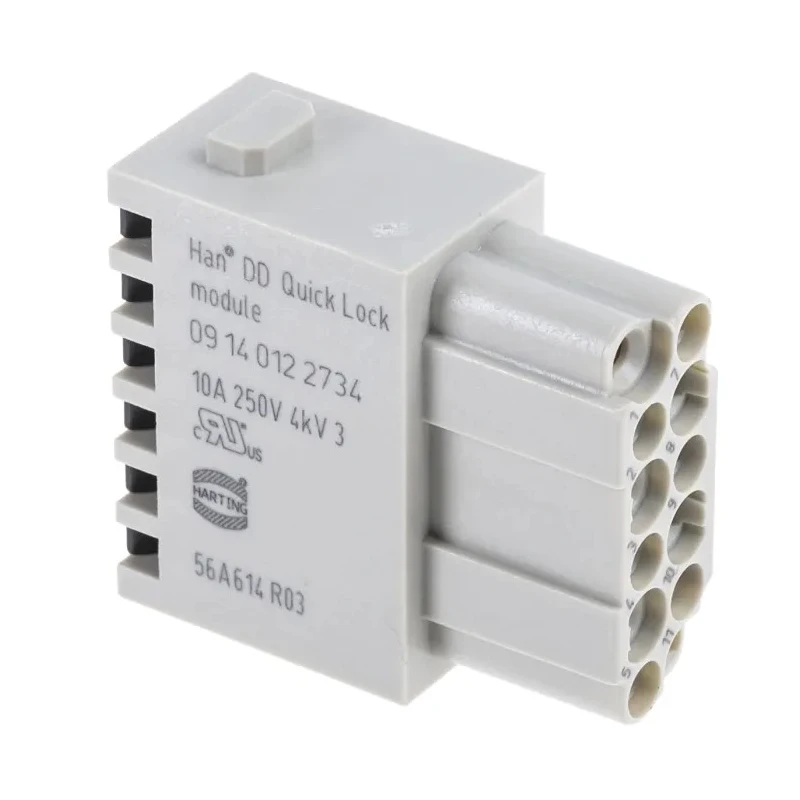

HARTING Heavy Duty Power Connector Module, 10A, HAN Modular Series Female, 12 Contacts 09140122734
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Series | HAN Modular |
| Sub Type | Connector Module |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Standards/Approvals | CSA, IEC 60664-1, IEC 61984, UL |
| Pole Format | 12 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.5mm² |
Key Features
- Rated current of 10 A with a voltage rating of 250 V for reliable power connections.
- Durable copper alloy contacts with gold plating for optimal conductivity and corrosion resistance.
- Includes 12 contacts arranged in 2 rows ensuring secure multipoint connections.
- Easy Han DD Quick-Lock module mounting designed for cable applications with straight orientation.
- Compliance with CSA, IEC 60664-1, IEC 61984, and UL standards ensures safety and quality.
- Supports minimum wire size of 0.25 mm² and maximum wire size of 1.5 mm² for versatility.
- Designed for over 500 mating cycles prolonging operational lifespan.
- Features low contact resistance below 3 mΩ and insulation resistance exceeding 10¹º Ω for superior performance.
Product Description
HARTING 09140122734 Heavy Duty Power Connector Module is a female connector module from the HAN Modular series designed to support up to 10 amperes of current with a voltage rating of 250 volts. It features 12 gold-plated contacts arranged in two rows housed within a quick-lock module mount intended for cable applications. This model delivers reliable connector performance with robust copper alloy contacts, ensuring effective power transmission in demanding conditions.
The module is compliant with international standards including CSA, IEC 60664-1, IEC 61984, and UL, reinforcing its quality and safety credentials. It supports wire sizes ranging from 0.25 mm² to 1.5 mm² and offers an orientation that supports straight connections for ease of installation. The Han DD Quick-Lock design facilitates quick termination for efficiency in setups.
With a contact resistance less than 3 milliohms and insulation resistance above 10¹º ohms, this connector guarantees stable electrical performance and long service life of over 500 mating cycles. The gold-plated contacts improve electrical conductivity and reduce wear due to repeated connections.
This heavy-duty connector module is well-suited for industrial environments, power connectors in electrical assemblies, and electronic component integrations where high reliability and durability are essential. Its configuration allows integration with compatible hoods and housings in ranges 5 to 8 as per Harting size identifiers.
Rated current of 10 A with 250 V voltage support. 12 gold-plated copper alloy contacts arranged in 2 rows. Durable construction with over 500 mating cycles expected lifespan. Compliance with CSA, IEC 60664-1, IEC 61984, and UL standards.
Han DD Quick-Lock cable mount for fast and easy termination. Minimum and maximum wire sizes of 0.25 mm² to 1.5 mm² supported. Low contact resistance and high insulation resistance ensure reliability. Ideal for heavy-duty industrial, electronic, and power distribution applications.
Browse EnvMart's extensive range of power connectors and heavy-duty modules for reliable industrial and commercial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This heavy duty power connector module is rated for a current of 10 A and a voltage of 250 V.
It features 12 contacts arranged in 2 rows.
The contacts are made of copper alloy and are gold-plated for optimal conductivity and corrosion resistance.
This model supports a minimum wire size of 0.25 mm² and a maximum wire size of 1.5 mm².
The contact resistance is less than 3 mΩ, ensuring reliable electrical performance.
It complies with CSA, IEC 60664-1, IEC 61984, and UL standards, ensuring safety and quality.
The connector is designed for straight orientation, facilitating easy installation.
It features a Han DD Quick-Lock mount designed for cable applications, allowing for quick termination.
This connector is designed for over 500 mating cycles, which prolongs its operational lifespan.
It is well-suited for industrial environments, power connectors in electrical assemblies, and electronic component integrations.
The pole format of this module is 12, indicating it has 12 contacts for connection.
This connector module is part of the HAN Modular series.
