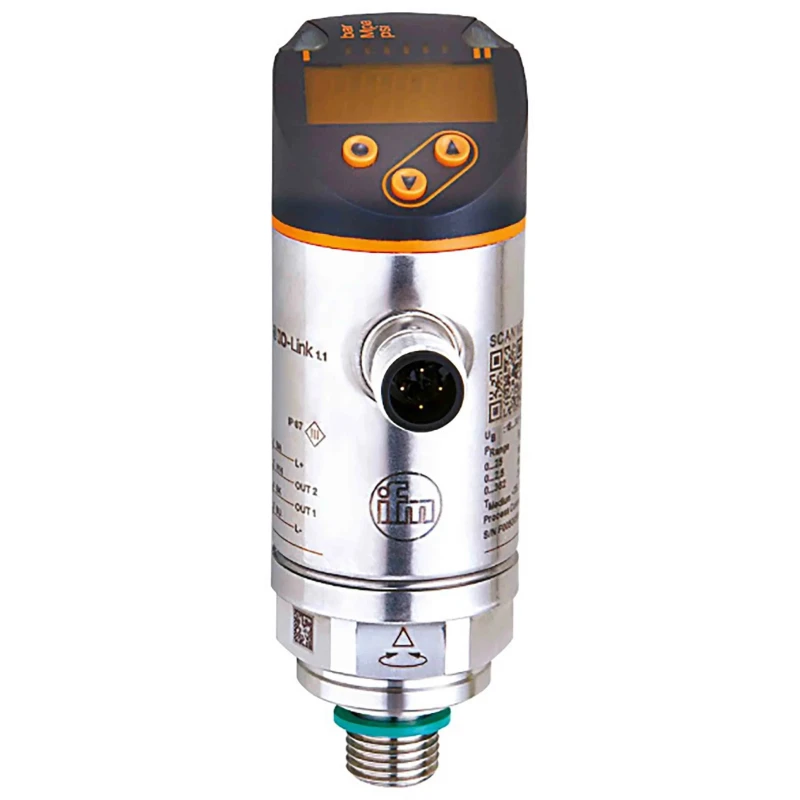

ifm electronic PN Series Pressure Sensor, PNP NO/NC, Analogue Output, -1 bar Minimum Pressure, 10 bar Maximum PN2594

Free Delivery in India | Lowest Global Shipping Charges

ifm electronic PN Series Pressure Sensor, PNP NO/NC, Analogue Output, -1 bar Minimum Pressure, 10 bar Maximum PN2594

Name: ifm electronic PN Series Pressure Sensor, PNP NO/NC, Analogue Output, -1 bar Minimum Pressure, 10 bar Maximum PN2594
Brand: ifm electronic
SKU: 197431
Price: 587.26 USD
Availability: InStock



Category Pressure Sensor Brand ifm electronic Condition New

Specifications

Country of Origin	India
Accuracy	±0.4 %
Brand	ifm electronic
Response time	3ms
Model	PN2594
IP Rating	IP65, IP67
Housing Material	Fibreglass Reinforced PBT GF30, Stainless Steel
Output type	PNP NO/NC, Analogue
Series	PN
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-25°C
Maximum Pressure Measurement	10bar
Minimum Pressure Measurement	-1bar
Maximum Supply Voltage	30V dc
Minimum Supply Voltage	18V
Pressure Reading Type	Relative
Media Measured	Fluid

Key Features

Equipped with a fibreglass reinforced PBT GF30 and stainless steel housing for durability.
Operates within a wide temperature range from -25°C to 80°C.
Features IP65 and IP67 ratings for protection against dust and water ingress.
Fast response time of 3 ms ensures timely pressure monitoring.
Allows rotation in any direction after installation for versatile usage.
Includes IO-Link communication and selectable output for improved control.
High overload protection with a highly stable ceramic measuring element.
Suitable for fluids, providing reliable relative pressure readings.

Product Description

ifm electronic PN2594 Pressure Sensor offers advanced pressure measurement capabilities with PNP NO/NC switching and analogue output. Designed to measure relative pressure between -1 bar and 10 bar with an accuracy of ±0.4%, this sensor is ideal for precise fluid pressure monitoring in industrial environments.

The sensor housing is constructed from fibreglass reinforced PBT GF30 and stainless steel, providing robustness and long service life. Operating temperatures range from -25℃ to 80℃, while the IP65 and IP67 ratings ensure excellent protection against dust and water.

This PN series sensor features fast 3 ms response time and supports IO-Link communication. Its design allows rotation post-installation, enabling flexible positioning in complex setups. The device includes dual switched NC/NO outputs and a scalable analogue output for varied control system integration.

The sensor’s highly stable ceramic measuring element tolerates overpressures with minimal zero offset or drift due to ageing or temperature fluctuations. The bright 4-digit alphanumeric display clearly shows system pressure and switching states, switching color from red to alternating red-green to visually flag states.

Fibreglass reinforced PBT and stainless steel housing for durability. Wide operating temperature range from -25℃ to 80℃. IP65 and IP67 rated protection against environmental ingress. Fast 3 ms response time for real-time pressure monitoring.

IO-Link communication for enhanced automation integration. Selectable dual NC/NO outputs and scalable analogue output. Highly stable ceramic sensor element tolerant to overpressure. Bright alphanumeric display shows pressure and switching conditions.

UL and DIN EN compliance for safety and reliability.

This pressure sensor is well-suited for industrial, automation, manufacturing, and laboratory applications requiring precise fluid pressure measurement. Its durable construction and advanced features ensure reliable performance in demanding environments.
