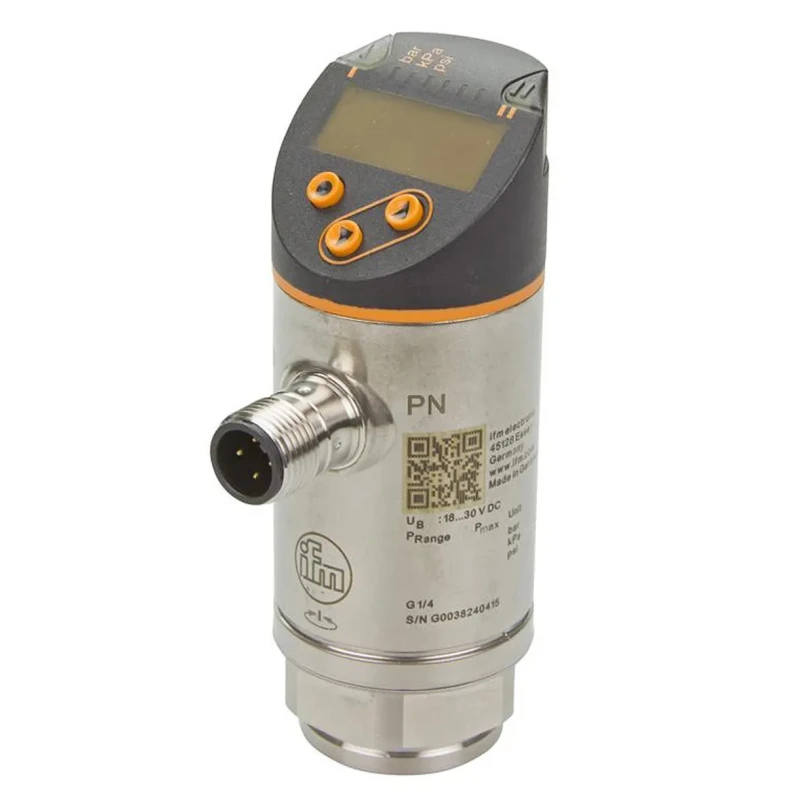

ifm electronic PN Series Pressure Sensor 0 bar to 400 bar Relative Measurement 18-30V dc 80°C PN7570

ifm electronic PN7570 pressure sensor is a high-performance device designed for industrial fluid pressure measurement with a range of 0 to 400 bar relative pressure. Featuring a robust housing made from fibreglass reinforced PBT GF30 and stainless steel, this sensor withstands demanding environments with operating temperatures between -25°C and 80°C. It delivers an accuracy of ±0.5% and a fast response time of 3 ms.

The PN series sensor supports IO-Link communication, allowing independent configuration of set and reset points for the dual switched NC/NO outputs. The large bright 4-digit alphanumeric display provides clear indication of system pressure and switching states, which can alternate colors for enhanced visibility. The sensor design permits rotation in any direction after installation to optimize mounting flexibility.

With IP65 and IP67 ratings, the sensor is protected against dust ingress and water immersion, making it suitable for industrial, laboratory, hydraulic, and process automation applications involving fluid media. Its highly stable ceramic measuring element tolerates overpressures without deterioration, ensuring reliable performance over time. Additional features include signal damping and programmable output delays.

The sensor complies with DIN EN 60068-2-27, DIN EN 61000-6-2, IEC 61131-9, and UL approval J003 among others, ensuring adherence to international quality and safety standards. The sensor features a highly stable ceramic measuring element tolerant to overpressure.

Equipped with an alphanumeric 4-digit display for clear pressure visualization. Supports IO-Link communication and configurable switching outputs. Enclosed in fibreglass reinforced PBT and stainless steel housing for durability.

Operating temperature range from -25°C to 80°C suits diverse industrial environments. Offers IP65 and IP67 ingress protection ensuring resistance to dust and water. Incorporates high overload protection and low zero offset for reliable readings.

Complies with multiple international standards including DIN EN 60068 and UL certification. Suitable for fluids in automation, process control, and hydraulic applications.

This ifm electronic PN Series Pressure Sensor PN7570 is engineered for reliability and precision pressure monitoring in industrial automation, hydraulic systems, water treatment, and laboratory instrumentation. Explore EnvMart's extensive range of Pressure Sensors for complementary components and expand your automation capabilities.
