Danfoss Inverter Drive, 3 kW Power Rating, 3 Phase, 400V AC, 4.3 A Output Current, FC280 Series

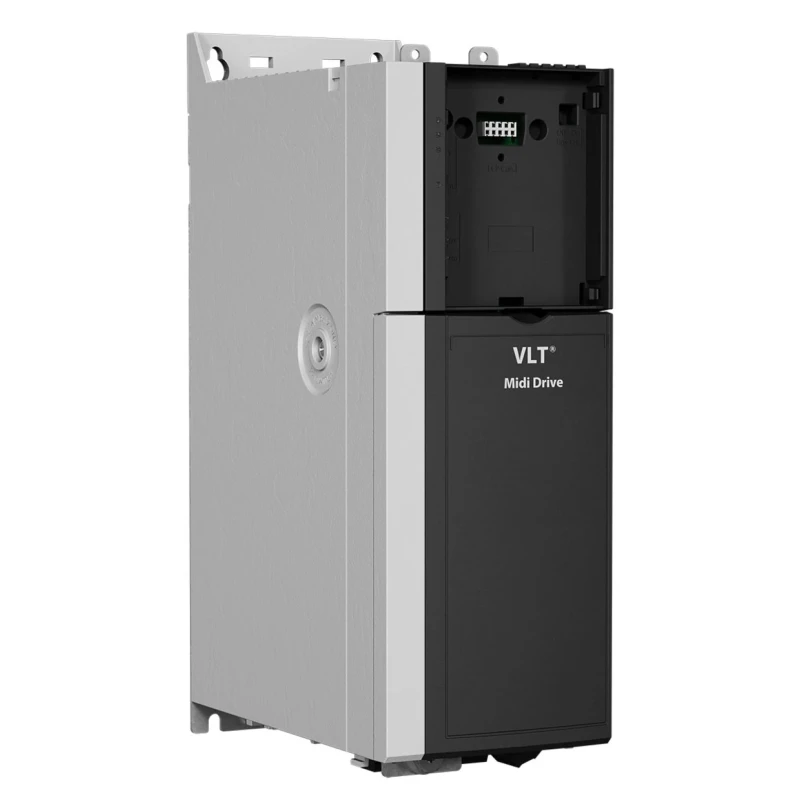

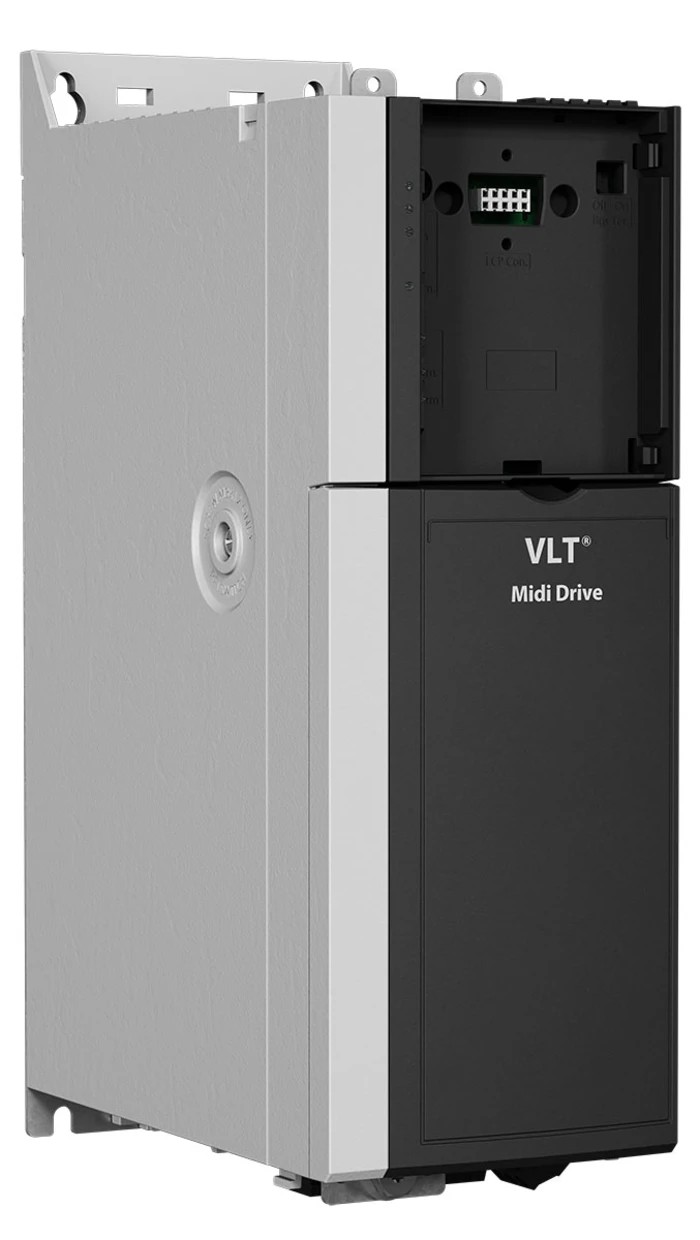

Danfoss FC280 Series inverter drive model 134U7718 provides a robust and energy-saving solution for controlling AC induction motors with a power rating of 3 kW and operating voltage of 400V AC at 3 phases. Designed for panel mounting, its compact dimensions (90mm length, 168mm width, 272.5mm depth) facilitate quick installation and integration into industrial automation systems.

This variable frequency drive supports output frequencies up to 500 Hz, allowing precise motor speed control for diverse industrial processes. The integrated USB port simplifies configuration and diagnostics via PC connection. Communication protocols available depend on the model variant and include Profibus, Profinet with dual port, Ethernet/IP with dual port, CANopen, as well as standard Modbus RTU and FC Protocol.

The FC280 inverter features a dual-channel Safe Torque Off (STO) function ensuring compliance with functional safety standards. Additionally, the built-in PID controller facilitates process control without external devices, enhancing the system's simplicity and reliability.

Its design accommodates a maximum ambient operating temperature of +55°C and includes an IP20 ingress protection rating. The drive does not include a control panel, which must be purchased separately if required; control panels with LCD displays are available in two versions.

Conforming to multiple international approvals such as CE, cUL, EMC, RCM (C-Tick), TUV, and UL Listed, this Danfoss drive embodies reliability and quality. It contributes to energy savings, reinforcing its Better World product claim, ideal for applications in industrial automation, HVAC, manufacturing, and water treatment.

Compact panel mount design enables easy and fast installation. Integrated USB port allows for simple PC connection. Supports multiple fieldbus communication options for flexibility. Equipped with integrated PID controller enhancing control performance.

Provides strong safety features including dual-channel STO functional safety. Compatible with induction motors and offers variable frequency drive type. Operates efficiently up to a maximum temperature of +55°C. Meets multiple international standards: CE, cUL Listed, EMC Compliant, RCM, TUV, and UL Listed.

Choose the Danfoss FC280 inverter drive for reliable, efficient motor speed control in demanding industrial environments. Explore other Inverter Drives and Danfoss products at EnvMart for comprehensive automation solutions.
