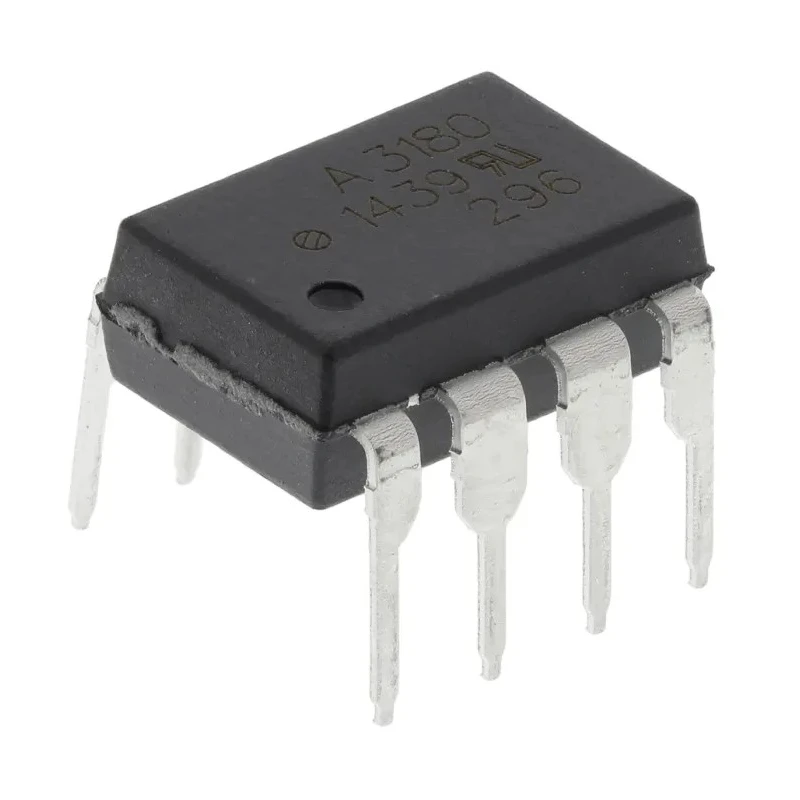

Broadcom DC Input Optocoupler Through Hole 8-Pin DIP HCPL-3180-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom DC Input Optocoupler Through Hole 8-Pin DIP HCPL-3180-000E

Name: Broadcom DC Input Optocoupler Through Hole 8-Pin DIP HCPL-3180-000E
Brand: Broadcom
SKU: 197263
Price: 4.37 USD
Availability: InStock



Category Optocouplers Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HCPL-3180-000E
Packaging	Tube
Mount Type	Through Hole
Output type	Transistor
Series	HCPL
Maximum Operating Temperature	100°C
Package Type	DIP
Minimum Operating Temperature	-40°C
Maximum input current	16mA
Standards/Approvals	IEC/EN/DIN EN 60747-5-2 UL CSA
Maximum Forward Voltage	1.8V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	25ns
Isolation Voltage	3750V ac
onsemi FOD3180 DC Input Optocoupler, Through Hole, 8-Pin DIPBrand	onsemi

Key Features

Features an 8-pin DIP package for easy through-hole mounting.
Has a maximum forward voltage of 1.8V for input LED protection.
Offers a maximum input current of 16mA suitable for DC applications.
Provides a high isolation voltage of 3750V AC ensuring safety in electrical isolation.
Typical rise and fall times are fast at 25ns each for high-speed switching.
Operates reliably between -40°C and 100°C operating temperature range.
Includes rail-to-rail output with transistor output type.
Compliant with IEC/EN/DIN EN 60747-5-2 and UL CSA standards for safety and performance.

Product Description

Broadcom HCPL-3180-000E is a high-performance DC input optocoupler designed for applications requiring electrical isolation and fast gate switching. This device features an 8-pin DIP package with through-hole mounting enabling easy integration into printed circuit boards.

The optocoupler uses transistor output and offers a maximum forward voltage of 1.8V with a maximum input current of 16mA, making it ideal for DC input applications. It provides excellent electrical isolation with an isolation voltage rated at 3750V AC and operates stably within a temperature range of -40°C to 100°C.

Typical rise and fall times of 25 nanoseconds allow for fast switching, suitable for driving IGBT and power MOSFET transistors in motor control and power conversion systems. The device offers rail-to-rail output and high common mode rejection, enhancing control signal integrity.

Certified to IEC/EN/DIN EN 60747-5-2 and UL CSA safety standards, this optocoupler ensures robust performance in industrial, automotive, HVAC, and manufacturing environments where electrical isolation and fast switching are critical.

Packaging in tubes facilitates efficient handling and automated insertion in volume production settings. This product is part of the Broadcom HCPL series known for reliability and reinforced insulation capabilities, making it suitable for demanding isolation applications.

8-pin DIP package with through-hole mount for easy PCB integration. Max forward voltage of 1.8V protects the input LED and ensures low power consumption. Max input current 16mA optimized for DC input signals. 3750V AC isolation voltage provides reinforced insulation for high voltage applications.

Fast 25ns rise and fall times enable rapid switching performance. Wide operating temperature range from -40°C to 100°C for harsh environments. Transistor output type with rail-to-rail output offers compatibility with various circuits.

Standards compliance includes IEC/EN/DIN EN 60747-5-2 and UL CSA ensuring industrial safety and quality. Ideal for isolated gate driver applications targeting power MOSFET and IGBT transistor control. Tube packaging supports high volume manufacturing automation.

Explore more in our Optocouplers category on EnvMart for advanced electronic components tailored to industrial and laboratory use.
