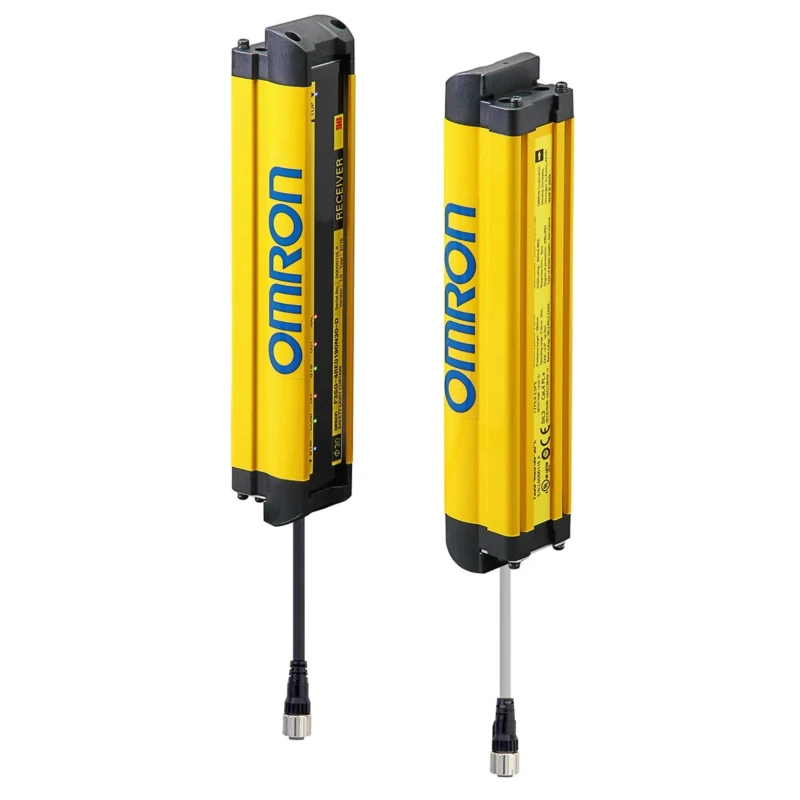

Omron F3SG-RE Series Type 2 Safety Light Curtain Receiver and Sender 8 Beams 30 mm Resolution F3SG-2RE0190P30

Omron F3SG-2RE0190P30 is a Type 2 safety light curtain designed for use in demanding industrial environments where automated lifting, robotic welding, and moving machinery require enhanced safety measures. This light curtain set includes both receiver and sender components generating eight infrared beams spaced at 30 mm resolution, which actively monitor safety zones and immediately halt equipment operation upon beam interruption.

The device ensures robust protection with a 190 mm safety field height and supports a maximum protective width of 20 meters, suitable for large scale applications. Its scanning distance extends from a minimum of 0.3 meters to a maximum of 20 meters, offering flexibility for different installation requirements.

Built to IP67 standards, this light curtain is dust-tight and capable of withstanding immersion in up to 1 meter of water for 30 minutes, making it well suited for tough industrial environments. The 4-Pin M12 quick-connect terminal facilitates fast and error-free wiring connections, speeding up setup and minimizing downtime.

The maximum response time of 125 milliseconds allows very fast detection and reaction signals to safety equipment. This unit’s compact size (208 mm length, 35 mm width, 35 mm height) enables installation in space-constrained areas while maintaining high safety performance.

Omron’s F3SG-RE series meets stringent safety certifications including PLe/Category 4 and PLc/Category 2 according to EN ISO 13849-1:2008, ensuring compliance with industrial safety requirements.

Typical applications include automated assembly lines, food and beverage processing, textile production, and printing presses, where machine safeguarding and operator protection are critical.

Additional support includes printed-on QR codes for easy online troubleshooting in multiple languages, facilitating maintenance and error diagnosis without additional delays. Set contains Receiver and Sender units designed for seamless integration in safety control systems, enhancing workplace safety and complying with regulatory standards.

Explore the range of Omron Safety Light Curtains and automation control gear at EnvMart for reliable industrial safety solutions. This light curtain includes both receiver and sender components for complete safety functionality.

It features a protective height of 190 mm and a maximum protective width of 20 m. The scanning distance ranges from 0.3 m minimum to 20 m maximum for versatile application. Robust IP67-rated enclosure ensures protection against dust and water immersion up to 1 meter for 30 minutes.

Equipped with 4-Pin M12 quick-connect terminal for fast and secure installation. It offers a rapid maximum response time of 125 ms enhancing safety response. Designed to comply with PLe/Category 4 and PLc/Category 2 safety standards (EN ISO 13849-1:2008).

The compact dimensions of 208 mm length, 35 mm width, and 35 mm height facilitate easy mounting in tight spaces. Operates reliably in temperatures from -10°C to +55°C for diverse industrial applications.
