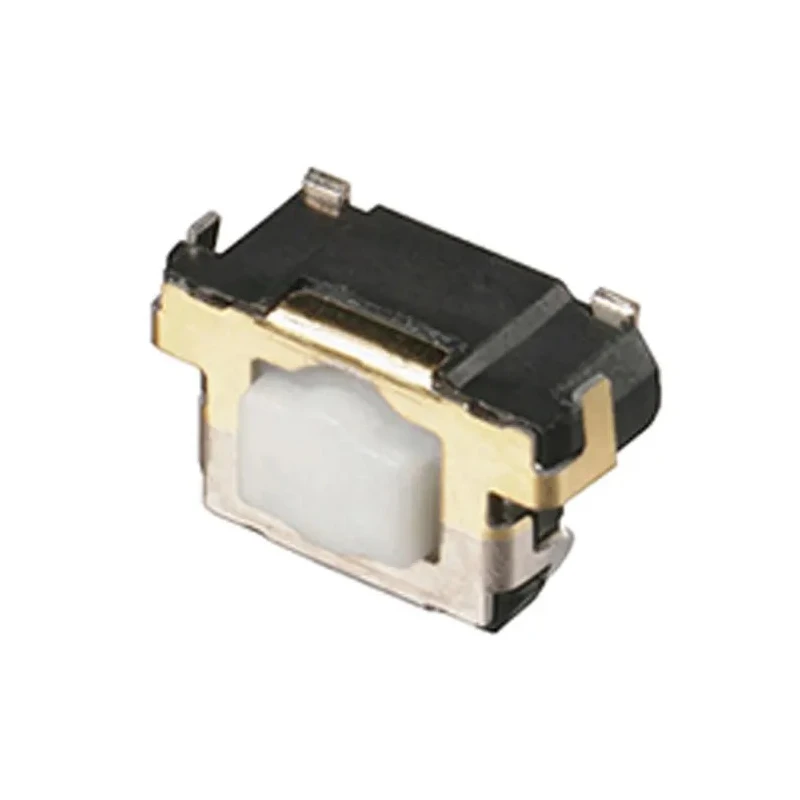

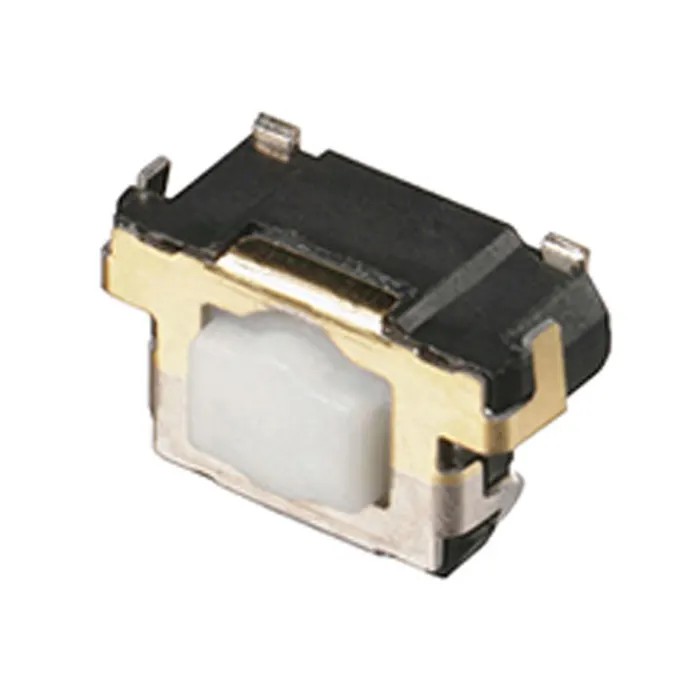

Panasonic IP67 Natural Tactile Switch Push Plate SPST 20mA 15 V DC 2.6 mm Actuator Length EVQP40B3M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 6.2mm |
| Model | EVQP40B3M |
| IP Rating | IP67 |
| Width | 3mm |
| Mount Type | Edge |
| Series | EVQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Natural |
| Actuator Length | 2.6mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Right Angle |
| Switch Contact Current | 20mA |
| Operating Force | 1N |
| Mechanical Life | 1000000Operations |
Key Features
- The switch features a Single Pole Single Throw (SPST) contact configuration.
- It operates at a low contact current rating of 20mA and DC voltage of 15V.
- The actuator length is 2.6 mm with a right-angle push plate style.
- The switch is edge mount type with a compact form factor measuring 6.2 mm in length, 3 mm in width, and 2.1 mm in height.
- It offers a mechanical life of 1,000,000 operations ensuring long-term reliability.
- Operating force is 1 Newton providing a clear and tactile feedback click.
- The switch is RoHS compliant and manufactured in Japan.
- It can operate in a wide temperature range from -40°C to 85°C.
Product Description
Panasonic EVQP40B3M is a high-quality IP67-rated natural tactile switch featuring a push plate actuator with a length of 2.6 mm. Designed primarily for momentary on-off switching, this SPST switch is rated for 20mA contact current at 15 V dc, ideal for low-power electronic circuits requiring reliable tactile feedback.
Featuring an edge mount configuration with a compact size of 6.2 mm length, 3 mm width, and 2.1 mm height, this Right Angle push plate actuator switch provides a sharp, distinct click with an operating force of 1 Newton. Its robust mechanical life of 1,000,000 operations ensures durability and consistent performance over extended usage.
The switch is RoHS compliant and manufactured in Japan, offering high reliability and conformity to safety and environmental standards. It operates efficiently within a broad temperature range from -40°C to 85°C, suitable for various industrial automation, control panels, instrumentation equipment, and electrical devices.
The non-illuminated design maintains simplicity and compactness without compromising on tactile feedback and operational reliability. Its IP67 rating guarantees excellent protection against dust and water ingress, making it suitable for harsh or demanding environments.
The tactile switch has a SPST contact configuration for straightforward on/off control. Momentary switch operation provides sharp tactile feedback for precision control. Compact dimensions allow for space-saving installation in electronic assemblies.
Edge mount type simplifies PCB mounting and connection. High mechanical life supports long-term industrial applications. IP67 rating ensures protection against dust and water exposure. Wide operating temperature range increases adaptability to various environments.
Manufactured in Japan under strict quality controls.
This Panasonic EVQP40B3M Tactile Switch is ideal for industrial, laboratory, electrical, and automation applications where reliable, compact, and user-friendly switch interfaces are required. Browse EnvMart for more Panasonic switches and electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a Single Pole Single Throw (SPST) contact configuration, allowing for straightforward on/off control.
The maximum operating temperature is 85°C, making it suitable for various environments.
The actuator length is 2.6 mm, designed for a right-angle push plate style.
It has a mechanical life of 1,000,000 operations, ensuring long-term reliability in use.
The operating force is 1 Newton, providing a clear and tactile feedback click during operation.
It has an IP67 rating, which guarantees protection against dust and water ingress.
The contact current rating is 20mA, suitable for low-power electronic circuits.
The switch measures 6.2 mm in length, 3 mm in width, and 2.1 mm in height.
It utilizes an edge mount type, simplifying PCB mounting and connection.
It is RoHS compliant, ensuring conformity to safety and environmental standards.
It is manufactured in Japan, adhering to strict quality controls.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
