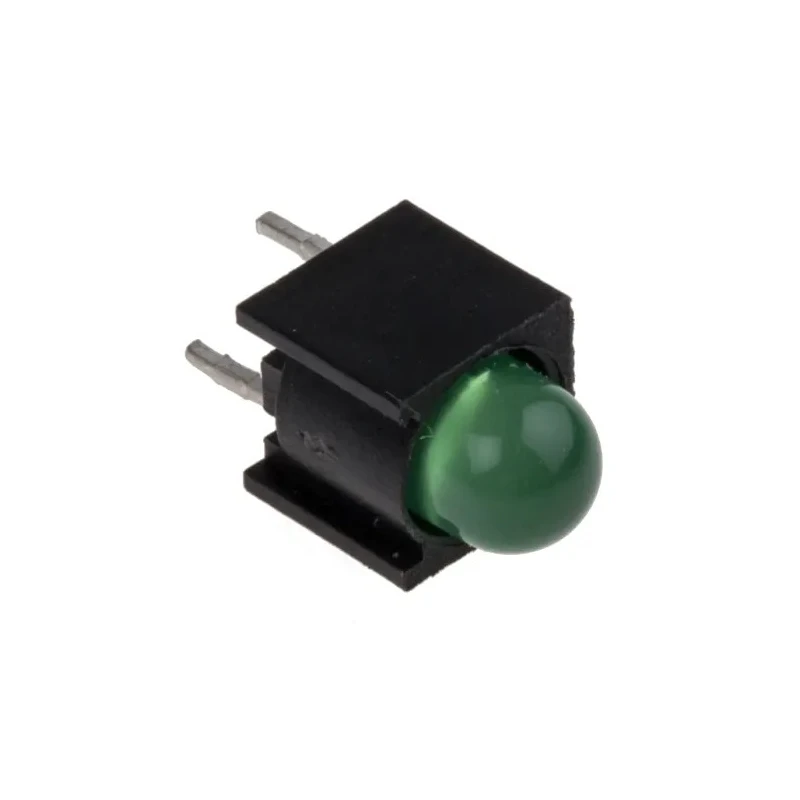

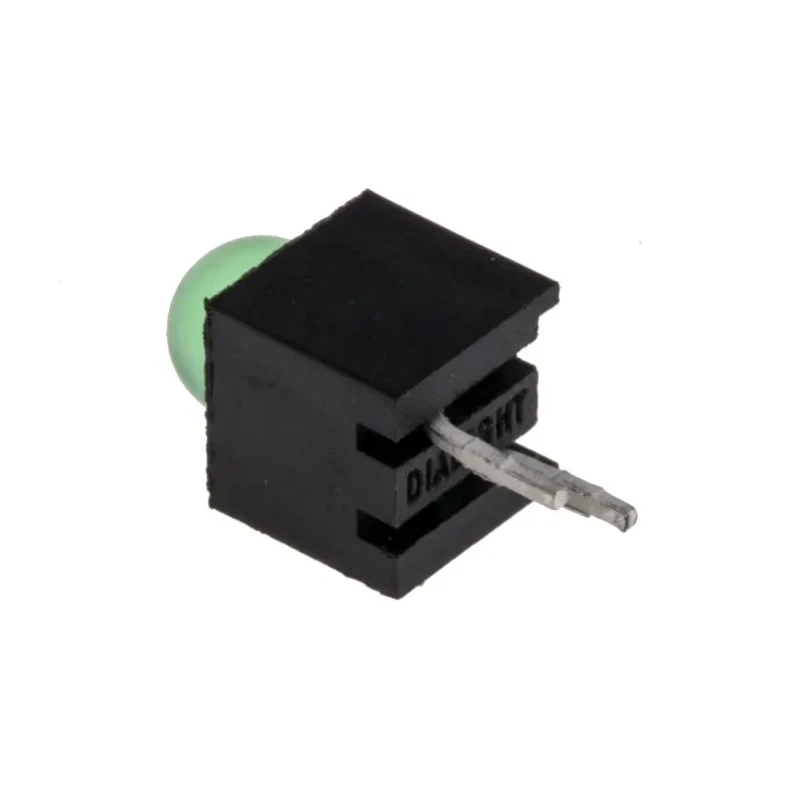

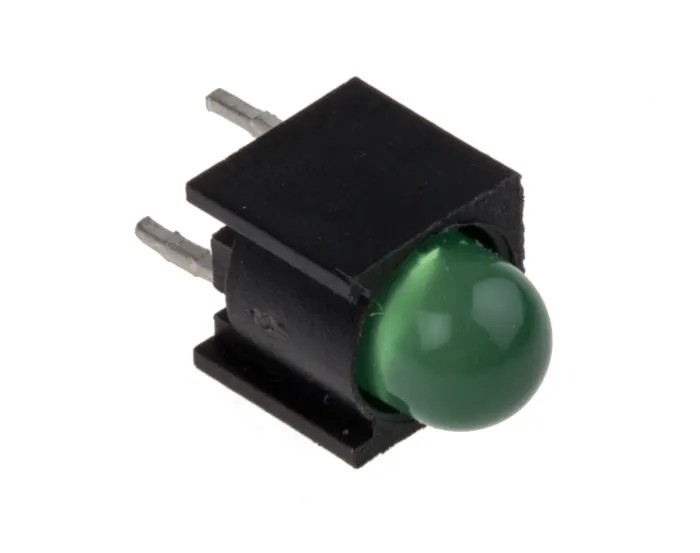

Dialight Green Top PCB LED Indicator 5 mm (T-1 3/4), 1 LED, 2.1 V, Single Colour 550-0204F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 9.27mm |
| Model | 550-0204F |
| Mount Type | Through Hole |
| Series | 550 |
| Number Of Leds | 1 |
| Maximum forward current | 30mA |
| Viewing angle | 60 ° |
| Sub Type | Single Colour |
| Power Dissipation | 80mW |
| Lens Colour | Green |
| Luminous Intensity | 12.3mcd |
| Standards/Approvals | RoHS, UL 94 V-0, MIL-STD-202F |
| LED Colour | Green |
| Number of Pins | 2 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 2.1V |
| LED Material | GaAsP, GaP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Top |
| LED Size | 5 mm (T-1 3/4) |
| Dialight LED 550-0204Brand | Dialight |
Key Features
- Compact 5 mm through-hole LED with top viewing orientation.
- Single colour green LED with 12.3mcd luminous intensity.
- Rated maximum forward current of 30 mA for reliable performance.
- Features a diffused green lens for high contrast in black plastic housing.
- Viewing angle of 60 degrees suitable for indicator applications.
- Complies with RoHS, UL 94 V-0, and MIL-STD-202F standards.
- Power dissipation rating of 80 mW enhances durability.
- Includes two pins for secure through-hole mounting on PCBs.
Product Description
Dialight 550-0204F is a high quality Green Top PCB LED Indicator with a 5 mm (T-1 3/4) LED size, designed for through-hole mounting on printed circuit boards. It is a single colour LED indicator featuring one green LED with a forward voltage of 2.1 V, making it ideal for clear visual signaling in industrial, electronic, and commercial applications.
The indicator incorporates a diffused green lens that ensures a uniform light distribution and is housed in a black plastic casing that offers excellent contrast for visibility. This 550 series LED indicator supports a maximum forward current of 30 mA and has a viewing angle of 60°, allowing precise indication from multiple angles.
Constructed using Gallium Arsenide Phosphide (GaAsP) and Gallium Phosphide (GaP) materials, the LED provides a luminous intensity of 12.3 millicandelas. The indicator is compliant with industry standards including RoHS, UL 94 V-0 for flammability, and MIL-STD-202F for durability, which confirms its robustness and safety in demanding environments.
The package includes a single LED with two pins for secure installation on PCB boards. Rated for a power dissipation of 80 mW, this indicator is suitable for use in electronic equipment monitoring, instrumentation panels, control systems, and general purpose status indication.
Compact 5 mm (T-1 3/4) through-hole green LED indicator for PCB mounting. Single colour green LED with 12.3 mcd brightness ensuring high visibility. Maximum forward current rating of 30 mA ensures efficient operation. Diffused lens finish reduces glare and enhances visual clarity.
Compliance with RoHS, UL 94 V-0, MIL-STD-202F standards guarantees safety and reliability. Black plastic housing offers high contrast and durability. Viewing angle of 60° suitable for various indicator applications. Robust materials GaAsP and GaP employed for LED composition.
Power dissipation of 80 mW supports extended service life.
This LED Indicator is widely used in electronic devices, instrumentation, industrial controls, and HVAC systems. Its durable and compliant design meets stringent industrial and safety requirements. Choose the Dialight 550-0204F for dependable and clear PCB LED indication. Explore more options in PCB LED Indicators and high-quality components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this LED indicator is 12.3 millicandelas (mcd).
This model has a maximum forward current rating of 30 mA.
The viewing angle of this LED is 60 degrees, making it suitable for various indicator applications.
It supports through-hole mounting on printed circuit boards (PCBs).
The power dissipation rating is 80 mW, which enhances its durability.
The LED is constructed using Gallium Arsenide Phosphide (GaAsP) and Gallium Phosphide (GaP).
The minimum supply voltage required for this model is 2.1 V.
This LED indicator complies with RoHS, UL 94 V-0, and MIL-STD-202F standards.
It has two pins for secure through-hole mounting on PCBs.
The lens finish is diffused, which helps reduce glare and enhances visual clarity.
The LED size is 5 mm (T-1 3/4), suitable for various applications.
The country of origin for this LED indicator is India.
