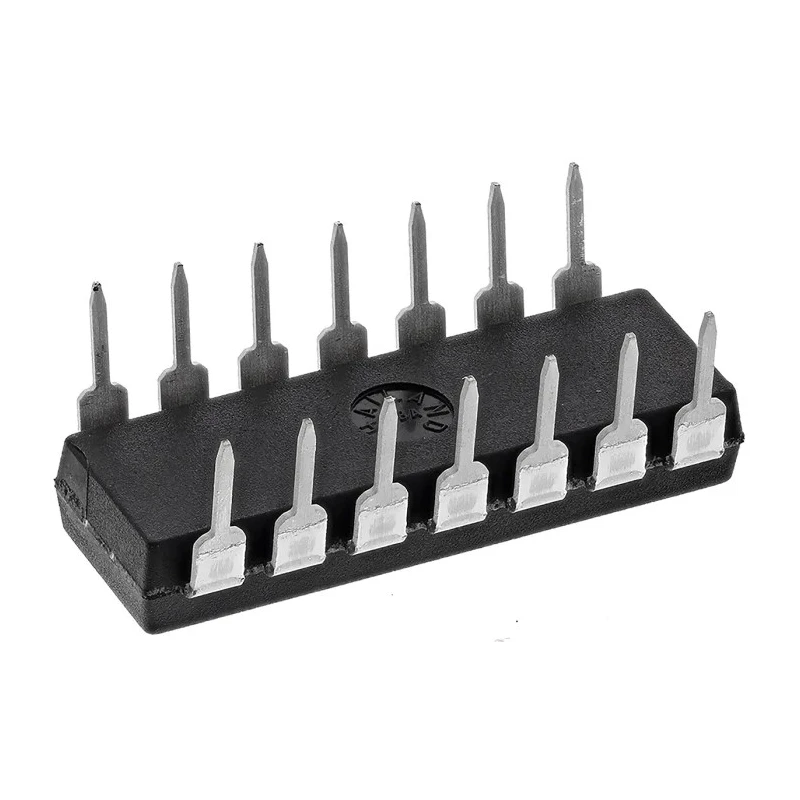

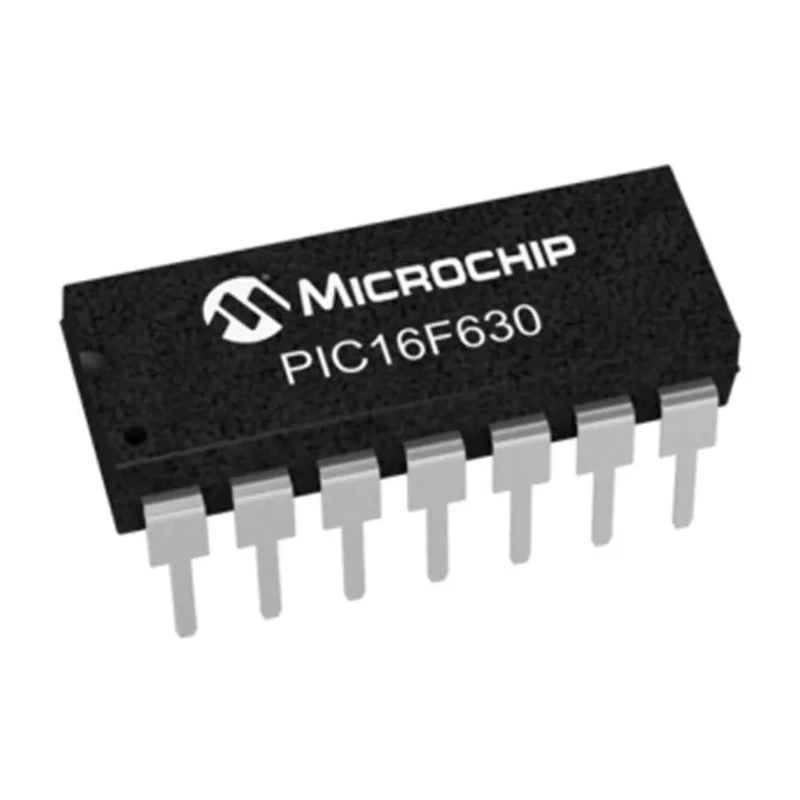

Microchip PIC16F630-I/P 8-bit PIC16F Microcontroller 20 MHz 128B FLASH 14-Pin PDIP

Microchip PIC16F630-I/P is an 8-bit PIC16F microcontroller optimized for embedded system designs requiring efficient processing at up to 20 MHz clock frequency. It incorporates 128 bytes of flash program memory and a 64-bit RAM, delivering reliable performance for moderate program sizes and data storage.

This microcontroller integrates multiple peripherals including SPI interface, 25 programmable input/output pins, an onboard 5-bit digital-to-analog converter (DAC), a precision analog comparator, and two timers - one 8-bit and one 16-bit - to support various timing and control applications. The device operates within a supply voltage range of 1.8 to 5.5 volts, with a maximum power dissipation of 800 milliwatts, making it suitable for low-power embedded systems.

Engineered with a factory-calibrated internal oscillator providing ±1% frequency accuracy, the PIC16F630-I/P supports stable and precise timing operations without requiring external clock sources, facilitating simpler designs and cost savings.

Its operating temperature range of -40°C to +85°C ensures durability and functionality across diverse industrial, automotive, and consumer electronics environments. The microcontroller is available in a 14-pin PDIP through-hole package measuring 19.69 mm in length, 7.11 mm in width, and 4.95 mm in height, accommodating standard PCB footprints for easy prototyping and production.

This versatile device supports in-circuit serial programming (ICSP), watchdog timer (WDT), power-on reset (POR), power-up timer (PWRT), oscillator start-up timer (OST), and brown-out detection (BOD), enabling robust and reliable embedded system applications.

Features an 8-bit PIC16F architecture optimized for efficient processing. Operates at up to 20 MHz clock speed providing fast execution. Includes 128 bytes of flash program memory and 64 bits of RAM. Supports SPI interface type and 25 programmable input/output pins.

Equipped with 1 x 5 bit DAC and 1 analog comparator for precise analog control. Has two timers (one 8-bit and one 16-bit) to support timing functions. Operates within a supply voltage range of 1.8V to 5.5V with max power dissipation of 800 mW.

Designed with onboard oscillator factory calibrated to ±1% frequency accuracy. Suitable for a wide temperature range from -40°C to 85°C for industrial use. Comes in a 14-pin PDIP through-hole mount package measuring 19.69mm x 7.11mm x 4.95mm.

This Microchip PIC16F630-I/P microcontroller is ideal for applications in industrial automation, consumer electronics, automotive control systems, and general embedded system development. It offers a robust feature set in a compact footprint suitable for engineers and developers seeking reliability and flexible functionality.
