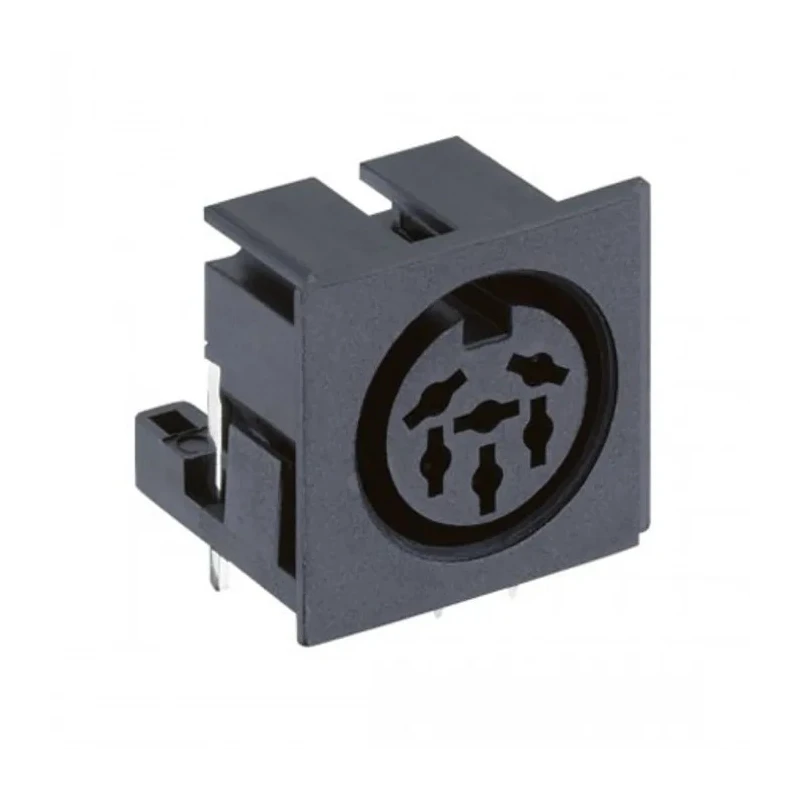

Lumberg 6 Pole Right Angle Standard DIN Socket, DIN 45322, 4A, 24V AC, Plug-In, PCB Female 0105 06

Free Delivery in India | Lowest Global Shipping Charges

Lumberg 6 Pole Right Angle Standard DIN Socket, DIN 45322, 4A, 24V AC, Plug-In, PCB Female 0105 06

Name: Lumberg 6 Pole Right Angle Standard DIN Socket, DIN 45322, 4A, 24V AC, Plug-In, PCB Female 0105 06
Brand: LUMBERG
SKU: 196717
Price: 3.03 USD
Availability: InStock



Category DIN Connector Socket Brand LUMBERG Condition New

Specifications

Country of Origin	Taiwan
Voltage	24V ac
Brand	Lumberg
Orientation	Right Angle
Current	4A
Model	0105 06
Mount Type	PCB
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	0105
Termination Type	Solder
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Pole Format	6
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Female
Connector Gender	Female
Mating Type	Plug-In
Connector Size	Standard
DIN Number	DIN 45322

Key Features

The socket features 6 female contacts suitable for DIN 45322 standard connectors.
Operates at 24V AC voltage with a current rating of 4A.
Right angle orientation and plug-in mating type ensure efficient PCB integration.
Constructed with polybutylene terephthalate housing and brass contacts plated with tin for durability.
Suitable for solder termination type and supports operating temperatures from -20°C to 70°C.
Designed for long life with 5000 mating cycles and a test voltage of 500V AC.
Contact resistance is greater than 100 MΩ ensuring reliable electrical performance.
Manufactured in Taiwan, Province Of China, guaranteeing quality standards.

Product Description

Lumberg 0105 06 6 Pole Right Angle Standard DIN Socket, compliant with DIN 45322 standards, is a high-quality female PCB-mounted circular connector designed for secure and reliable electrical connections in various industrial and electronic applications.

This DIN socket supports a voltage rating of 24V AC and a current capacity of 4A, making it suitable for medium-power signal transmission and control circuits. Its right angle orientation allows efficient PCB layout and space-saving designs.

The connector features a robust housing made from polybutylene terephthalate (PBT), providing excellent electrical insulation and mechanical strength. Brass contacts plated with tin ensure corrosion resistance and consistent conductivity. The solder termination type facilitates reliable PCB assembly.

Operating temperature ranges from -20°C to +70°C, enabling use in a wide variety of environments including industrial, manufacturing, and electronic equipment scenarios. The socket is tested for 5000 mating cycles, ensuring long service life, and features a high contact resistance threshold exceeding 100 MΩ for excellent signal integrity.

Its plug-in mating type and standard size make it compatible with a broad range of DIN circular plugs conforming to the DIN 45322 standard. The socket has 6 female contacts for connecting multiple circuits. Right angle connector orientation to optimize PCB space.

Durable polybutylene terephthalate housing for electrical insulation. Brass contact material with tin plating for corrosion resistance. Supports solder termination for secure PCB connections. Rated for -20°C to 70°C operating temperatures.

Suitable for up to 4A current at 24V AC voltage. Designed to withstand 5000 mating cycles for longevity.

This product is ideal for use in electronic component assemblies, power connectors for electronic devices, industrial control equipment, instrumentation, and any application requiring secure DIN standard circular connectors for PCB mounting.
