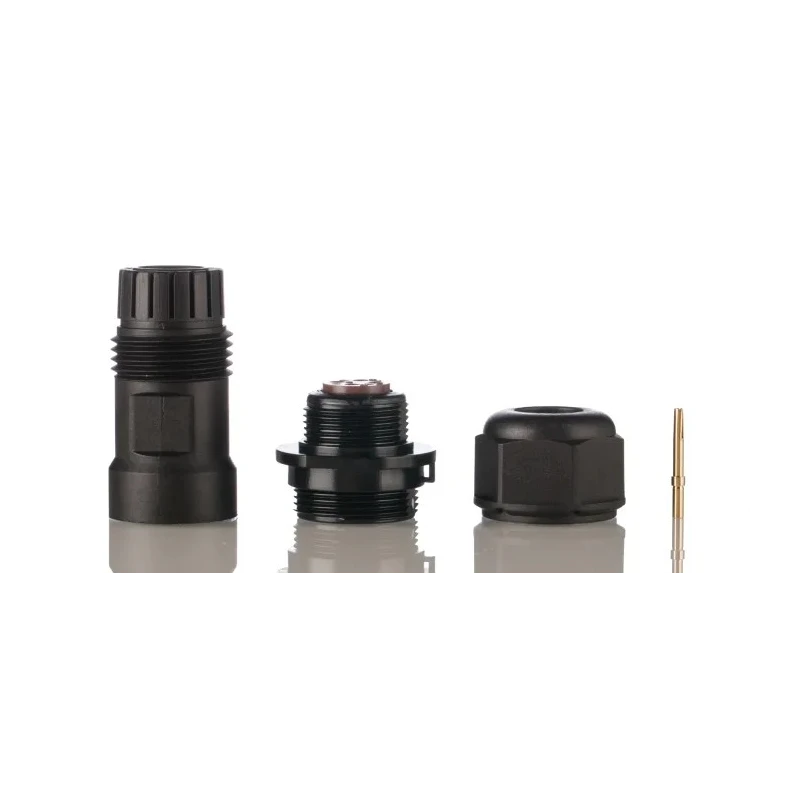

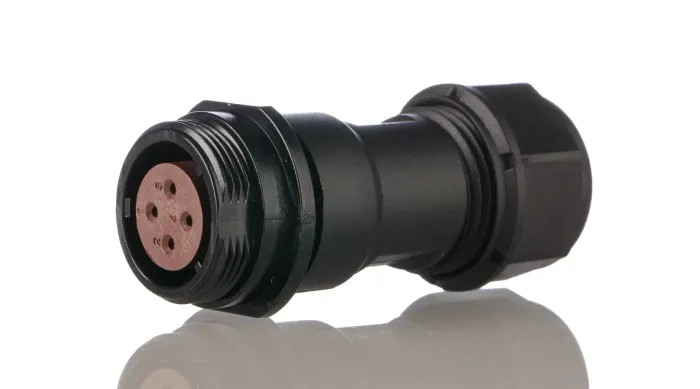

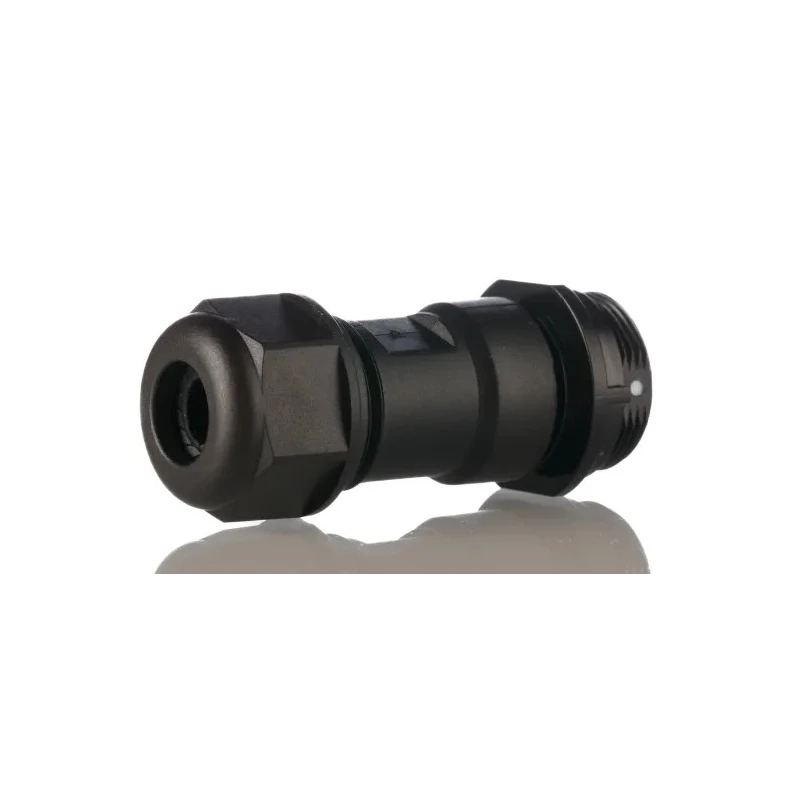

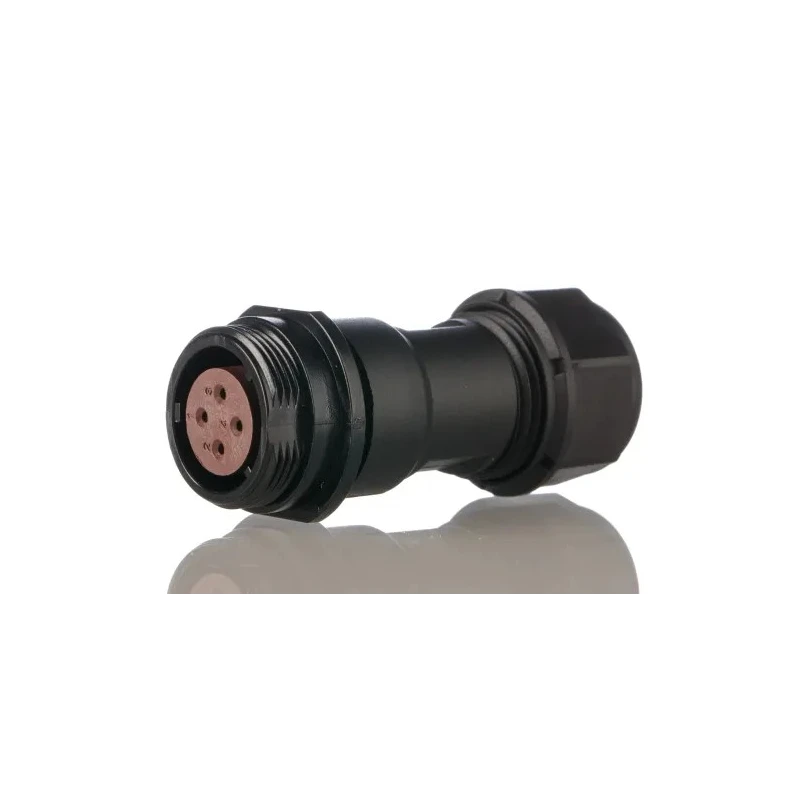

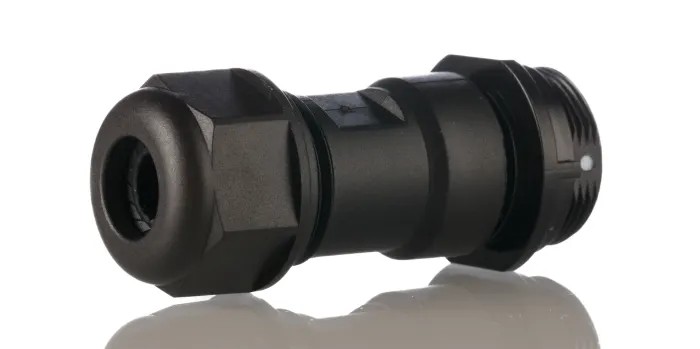

RS PRO Circular Connector, 4 Contacts, Cable Mount, Standard Size, Socket Female, IP68, 500V, 5A, Gold Plated Brass 124-6648

RS PRO model 124-6648 is a high-quality circular connector designed for cable mounting with 4 contacts configured as a female socket. This standard-sized industrial circular connector supports an operating voltage of 500V and a current rating of 5A, making it suitable for demanding electrical applications.

The connector features a robust housing made from durable Polyamide 66 and Polycarbonate materials, ensuring protection against mechanical impacts and chemical exposure. Its high IP68 ingress protection rating guarantees complete dust ingress protection and water submersion resistance, suitable for harsh and outdoor environments.

The contacts are made of brass with a gold plating that enhances conductivity and corrosion resistance. The crimp termination technique allows for strong and reliable cable connections. It has a threaded mating type to secure a tight and vibration-resistant fit with compatible counterparts.

Technical specifications include a shell size of 17 mm, with panel hole cutout diameter matching this measurement for seamless installation. It accepts cables with outer diameters between 6 mm and 10 mm, providing compatibility with a range of wiring types.

Rated to operate in temperatures from -40°C to 85°C, the RS PRO 124-6648 connector is suitable for industrial, manufacturing, water treatment, and automation equipment applications where durability and reliable electrical connection are critical. Its standard socket design and IP68 rating make it an excellent choice for outdoor and heavy-duty use.

Offers a current rating of 5A for reliable electrical performance. Constructed with brass contacts plated in gold to ensure low resistance and durability. Rated for 500 volts operating voltage suitable for demanding environments.

Housing made from Polyamide 66 and Polycarbonate for robust mechanical protection. Threaded mating type provides a secure connection in harsh settings. Operates over a temperature range from -40°C up to 85°C. Cable outer diameter acceptance ranges from 6 mm to 10 mm.

Panel hole cutout diameter is optimized at 17 mm for easy installation. The connector is IP68 rated, providing dust-tight and water submersion protection. Ideal for industrial, manufacturing, and outdoor electrical connector requirements.
