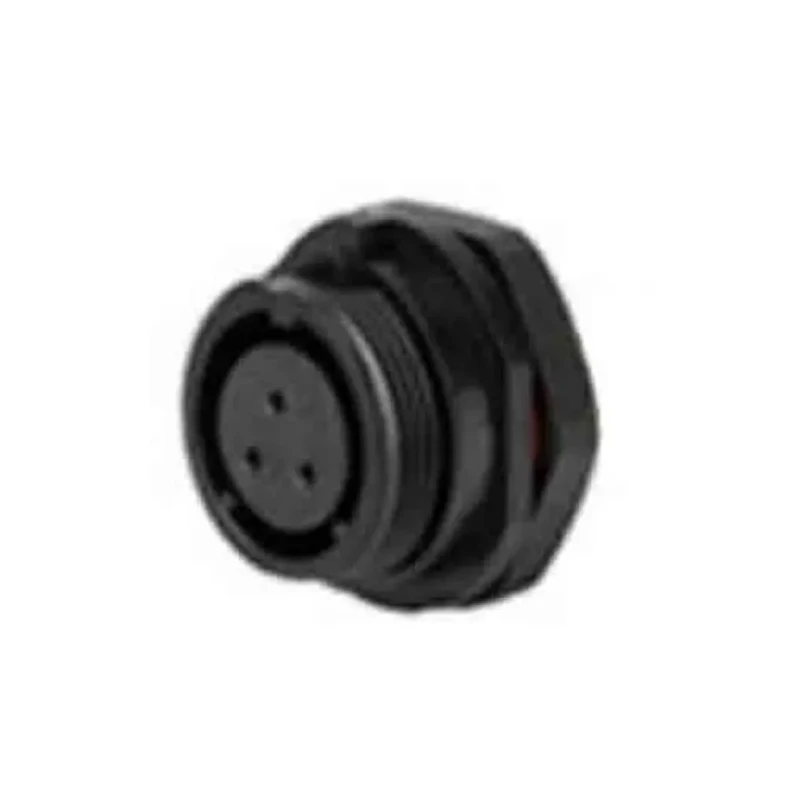

RS PRO Circular Connector, 3 Contacts, Front Mount Socket, Threaded Mating, IP68 Rated, 10A, 500V, Polyamide 124-6653
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | 124-6653 |
| IP Rating | IP68 |
| Mount Type | Front |
| Housing Material | Polyamide 66, Polycarbonate |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 17 mm |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Cable outer diameter acceptance | 6 mm - 10 mm |
| Panel hole cutout diameter | 17 mm |
Key Features
- Constructed with a high-quality Polyamide 66 and Polycarbonate housing ensuring durability.
- Designed for front mounting with threaded mating for secure connections.
- Offers IP68 rating, providing excellent protection in harsh environmental conditions.
- Features gold-plated brass contacts to ensure superior conductivity and corrosion resistance.
- Supports cable outer diameter acceptance between 6 mm and 10 mm for versatile cable compatibility.
- Operates efficiently in a broad temperature range from -40°C to 85°C.
- Standard connector size with panel hole cutout diameter of 17 mm for easy installation.
- Termination type is crimp, facilitating fast and secure wiring.
Product Description
RS PRO 124-6653 Circular Connector is a front mount socket connector designed for industrial and electronic applications requiring secure and durable circular connectors. It features 3 contacts rated at 10A and 500V, ideal for power and signal connections.
The connector's robust housing is made from Polyamide 66 and Polycarbonate, offering excellent protection against mechanical and environmental stresses. The IP68 rating ensures strong resistance against dust and water ingress, making it suitable for use in harsh or outdoor environments.
This model employs gold-plated brass contacts that provide reliable conductivity and reduce corrosion risks, enhancing long-term performance. It supports crimp termination for secure, fast connection to conductors with cable outer diameter acceptance from 6 mm to 10 mm.
The threaded mating type and panel hole cutout diameter of 17 mm facilitate easy and secure mounting in panels or chassis. It operates within a wide temperature range from -40°C to 85°C, ensuring functionality across varied industrial settings.
Applications include use in industrial automation, control panels, electronic devices, power distribution, and other environments that require rugged and dependable circular connectors. The straight orientation and standard size shell make it compatible with a wide range of mating components.
Constructed with durable Polyamide 66 and Polycarbonate housing materials. Front mount design with threaded mating for secure connections. Rated IP68 for excellent environmental protection. Gold-plated brass contacts for superior conductivity and corrosion resistance.
Suitable for cable outer diameters ranging from 6 mm to 10 mm. Wide operating temperature range from -40°C to 85°C. Crimp termination type for reliable wiring. Standard size with 17 mm panel hole cutout diameter. Ideal for industrial, electronic, and power connector applications requiring high reliability.
Explore the Electronics & Electricals category on EnvMart for a comprehensive selection of circular connectors and related components to fit your application needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 10A.
It can handle a voltage of up to 500V.
The connector has an IP68 rating, providing excellent protection against dust and water ingress.
The housing is made from Polyamide 66 and Polycarbonate, while the contacts are made of brass with gold plating.
It operates efficiently within a temperature range of -40°C to 85°C.
The required panel hole cutout diameter is 17 mm.
This model uses crimp termination for secure wiring connections.
It supports cable outer diameters ranging from 6 mm to 10 mm.
This connector features 3 contacts.
It utilizes a threaded mating type for secure connections.
It is suitable for applications in industrial automation, control panels, electronic devices, and power distribution.
This model has a straight orientation.
