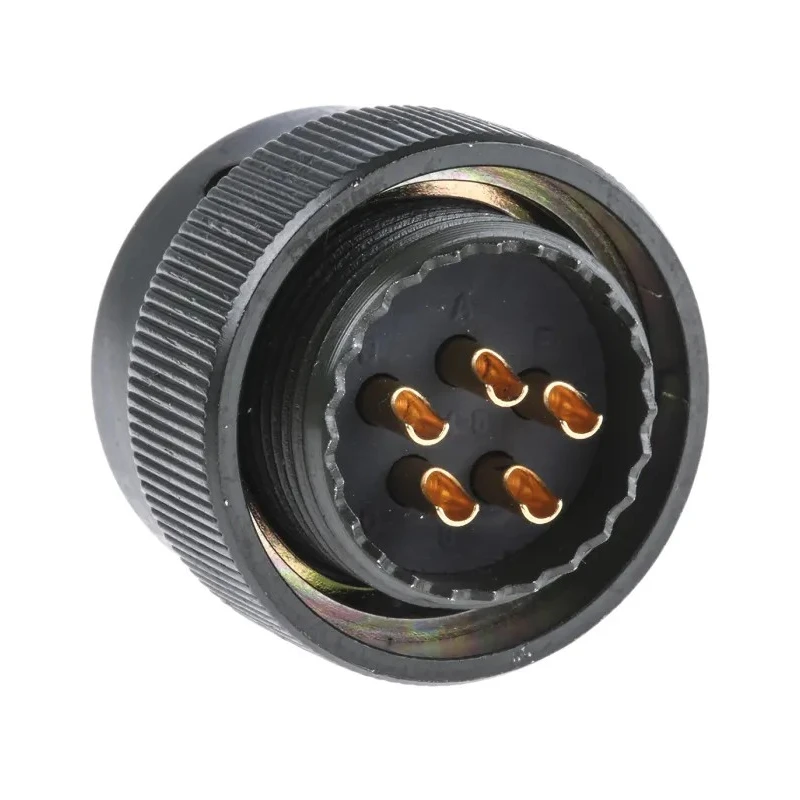

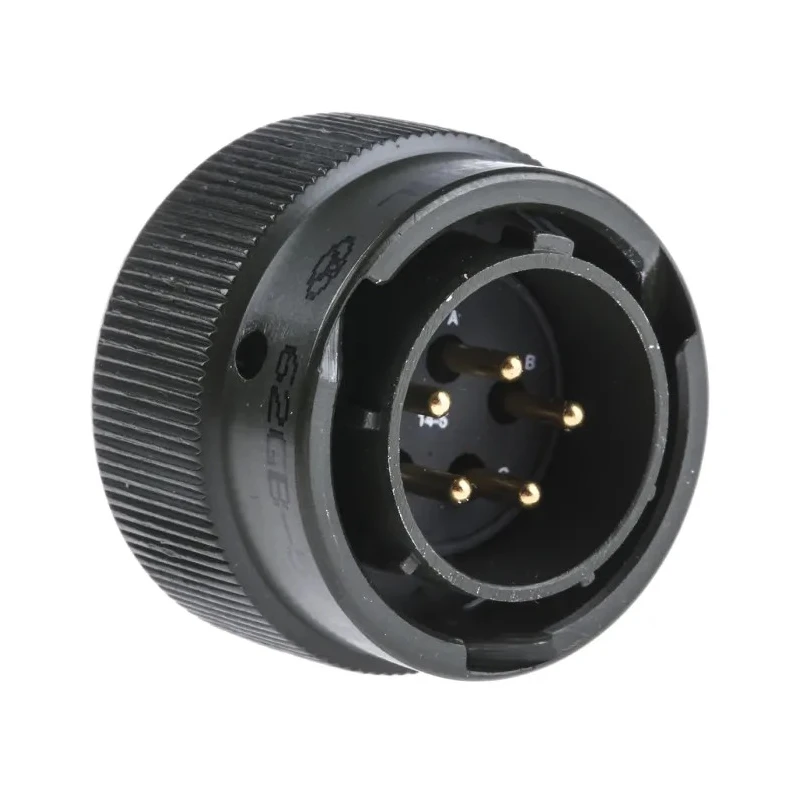

Amphenol Limited MIL Spec Circular Connector Brass Straight 5 Way Cable MIL-DTL-26482 Male Contacts Olive 62GB-56T14-05PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.2, 850kV dc |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 13A |
| Model | 62GB-56T14-05PN |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Brass |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- Features a bayonet lock mating system for secure and easy connection.
- Constructed with aluminium housing and brass contact material for durability.
- Operates reliably within -55°C to 125°C temperature range.
- Gold plated contacts ensure high conductivity and corrosion resistance.
- Rated for 13A current and 1.2, 850kV dc voltage performance.
- Designed to prevent mismating with a keyed shell size 14 design.
- Ideal for military, industrial, and harsh environment applications.
- Complies with MIL-DTL-26482 military specifications for rugged performance.
Product Description
Amphenol Limited 62GB-56T14-05PN is a MIL Spec Circular Connector, designed as a robust brass straight 5 way cable connector conforming to MIL-DTL-26482 standard. It is manufactured with an aluminium housing with a zinc cobalt olive drab plating that provides excellent corrosion resistance. Intended for use in military and industrial settings, this connector accommodates a current rating of 13A and operates at voltages up to 1.2, 850kV dc.
The connector includes male contacts that are gold plated to assure reliable conductivity and resistance to environmental degradation. Its bayonet lock mating system ensures a secure and positive connection, while the keyed shell size 14 design prevents mismating and ensures proper alignment every time.
Designed for durability, the connector functions efficiently in extreme temperature conditions ranging from -55°C to 125°C. The straight orientation and cable mount type facilitate versatile installation in various assembly configurations.
This 62GB series miniature bayonet lock connector is supplied with solder bucket contacts, adhering to strict military specifications. Suitable for high-quality and robust applications, it meets the demanding standards required in defense, aerospace, industrial manufacturing, and other mission-critical environments.
Bayonet lock mating system for secure connection. Durable aluminium housing with zinc cobalt olive drab finish for corrosion resistance. Gold plated brass contacts with solder bucket termination. Complies with MIL-DTL-26482 military standard for reliable performance.
Operates in temperature ranges from -55°C to 125°C. Rated for 13A current and high voltage applications. Keyed shell size 14 design to prevent mismating. Ideal for military, aerospace, and industrial applications. Explore the wide range of Mil Spec Circular Connectors available for advanced industrial and military-grade electrical connections with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 13A, making it suitable for various applications requiring this level of current.
This model is rated for a voltage performance of up to 1.2, 850kV dc.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made of aluminium, while the contacts are constructed from brass and are gold plated for enhanced conductivity and corrosion resistance.
The bayonet lock mating system ensures a secure and positive connection, preventing accidental disconnection during operation.
This connector features a keyed shell size 14 design to prevent mismating and ensure proper alignment.
It uses a solder bucket termination type for the male contacts.
It is designed for military, aerospace, and industrial applications, particularly in harsh environments.
The connector has a straight orientation, which facilitates versatile installation options.
It complies with the MIL-DTL-26482 military specifications, ensuring rugged performance.
The connector features an olive color due to its zinc cobalt shell plating.

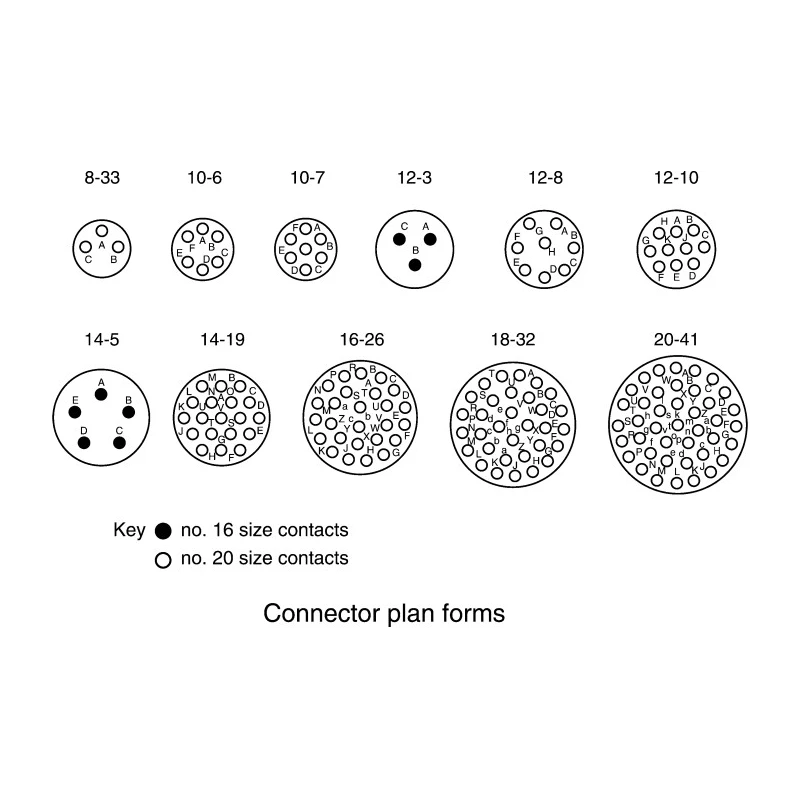

This model has a total of 5 male contacts.
