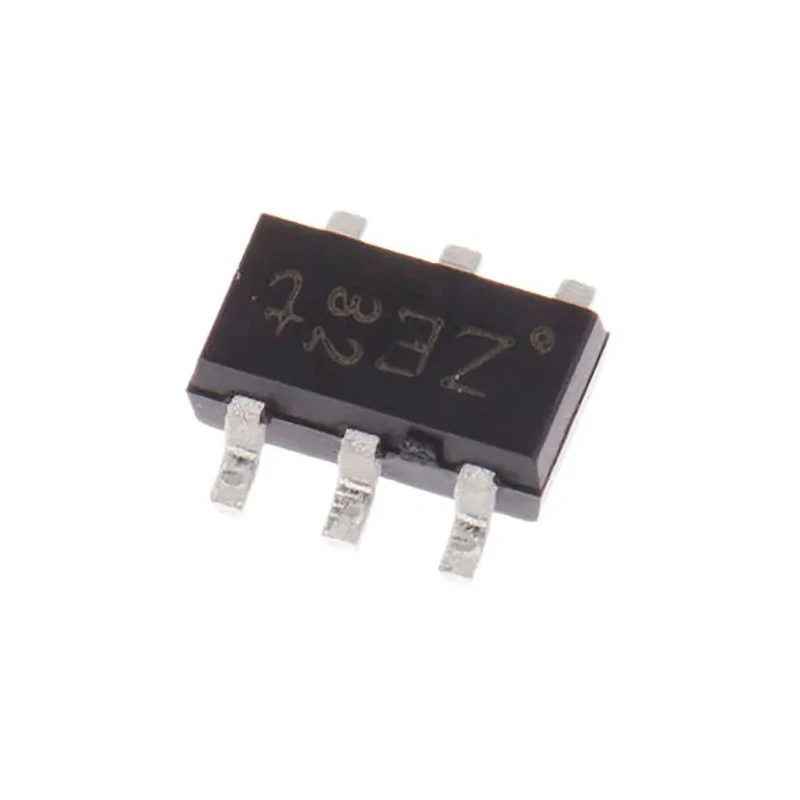

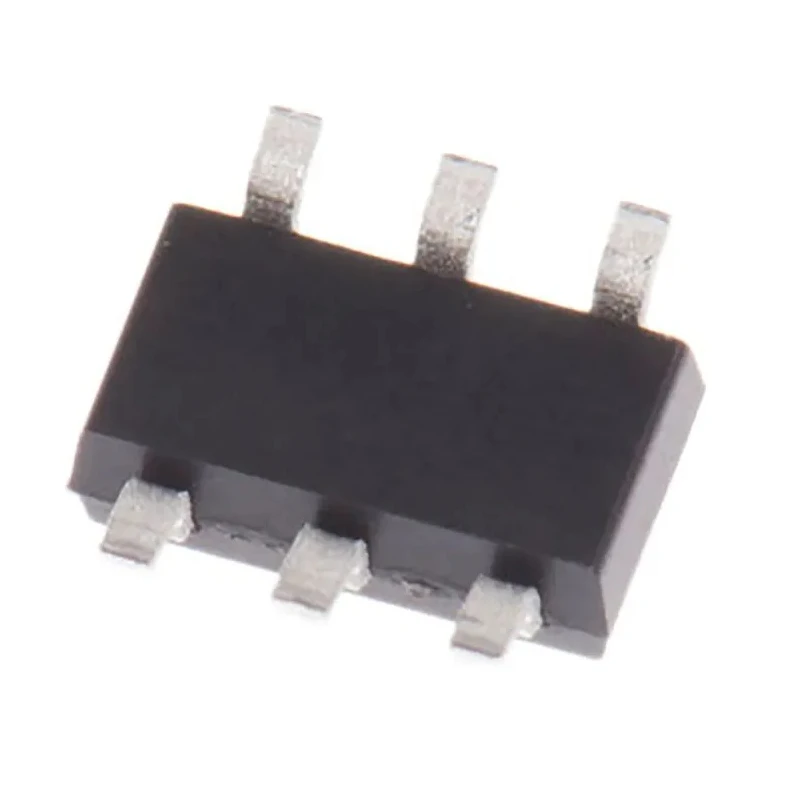

ROHM 5-Channel Adjustable Buck Converter 1 V to 29.4 V, 500 mA, 1.7 MHz, Surface Mount SSOP BD9G101G-TR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 5-Channel Adjustable Buck Converter 1 V to 29.4 V, 500 mA, 1.7 MHz, Surface Mount SSOP BD9G101G-TR

Name: ROHM 5-Channel Adjustable Buck Converter 1 V to 29.4 V, 500 mA, 1.7 MHz, Surface Mount SSOP BD9G101G-TR
Brand: ROHM
SKU: 195950
Price: 0.88 USD
Availability: InStock



Category DC/DC Converter Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.1mm
Length	2.9mm
Model	BD9G101G-TR
Width	1.6mm
Mount Type	Surface
Output type	Adjustable
Series	BD9G101G
Topology	Buck
Maximum Operating Temperature	105°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Input Voltage	42V
Maximum Switching Frequency	1.7MHz
Maximum Output Current	500mA
Standards/Approvals	RoHS
Maximum Output Voltage	29.4V
Minimum Input Voltage	6V
Pin Count	6
Minimum Output Voltage	1V

Key Features

Offers five independent buck converter channels for versatile applications.
Adjustable output voltage range between 1 V and 29.4 V ensures broad compatibility.
Operates at a maximum switching frequency of 1.7 MHz for efficient power management.
Compact surface mount SSOP package with 6 pins minimizes board space usage.
Wide operating temperature range from -40°C to 105°C for industrial reliability.
Integrated FET switching regulator topology for improved efficiency and thermal management.
RoHS compliant ensuring environmental standards adherence.
Ideal for use in electronic, semiconductor, power management, and industrial applications requiring precise power regulation.

Product Description

The ROHM BD9G101G-TR is a 5-Channel Adjustable Buck Converter designed for efficient DC-DC step-down voltage regulation in various industrial and electronic applications. It supports a wide input voltage range from 6 V up to 42 V, making it adaptable for different power sources, and provides stable output voltages adjustable between 1 V and 29.4 V with a maximum output current of 500 mA per channel.

This device features a high maximum switching frequency of 1.7 MHz enabling compact external components and improved transient response. Its buck topology incorporates integrated FETs to ensure efficient power conversion and low heat dissipation, suitable for power management IC requirements.

The compact 6-pin SSOP surface mount package measures just 2.9 mm by 1.6 mm by 1.1 mm, facilitating space-saving PCB layouts in complex electronics assemblies. Its operating temperature from -40°C to 105°C ensures performance stability in demanding environments such as industrial controls, automotive electronics, telecommunications, and embedded systems.

The BD9G101G-TR is RoHS compliant, aligning with environmental safety standards and sustainability practices for electronic components manufacturing. Five output channels with adjustable voltage and integrated FETs for efficient switching.

Wide operating voltage and temperature ranges optimize flexibility and durability. Compact surface mount SSOP package reduces device footprint on circuit boards. Suitable for use in electronic devices, power management circuits, and semiconductor applications.

Design engineers benefit from this converter’s precision, reliability, and ease of integration into power regulation circuits, ensuring enhanced performance and energy savings for industrial and commercial electronic products.
