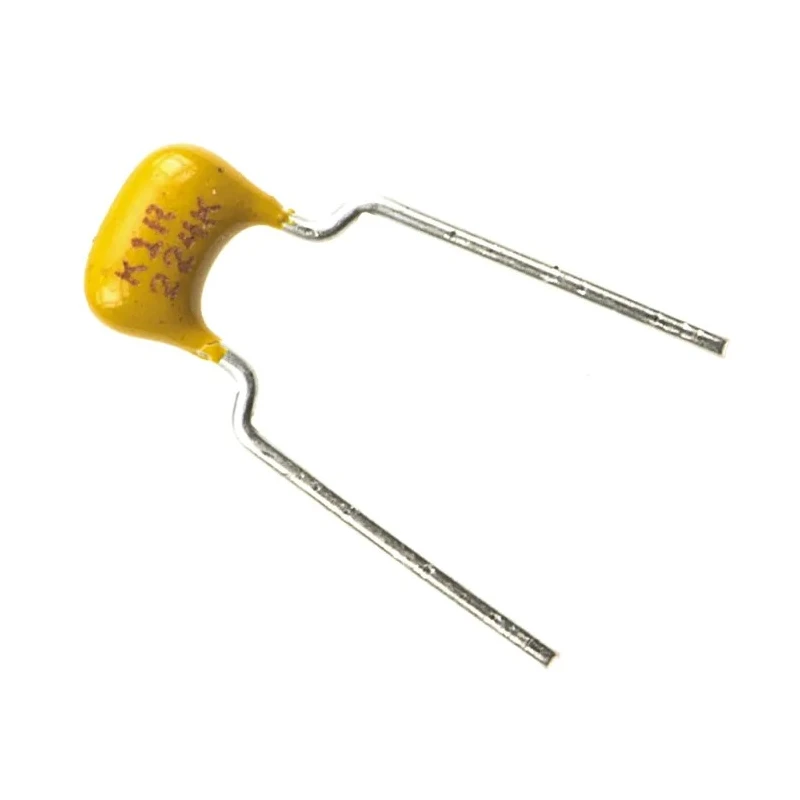

KEMET 220 nF Multilayer Ceramic Capacitor 100V DC ±10% Through Hole Radial C330C224K1R5TA
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 100V dc |
| Brand | KEMET |
| Height | 3.81mm |
| Length | 9.14mm |
| Model | C330C224K1R5TA |
| Packaging | Tape & Reel |
| Width | 4.07mm |
| Mount Type | Through Hole |
| Series | Goldmax 300 |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | REACH, UL, RoHS |
| Lead Diameter | 0.51mm |
| Dielectric | X7R |
| Suppression Class | Class I |
| Lead Spacing | 5.08mm |
| MYLAR CAP 0.22UF 100VBrand | NEUTRAL |
| Radial X7R ceramic capacitor,0.22uF 100VBrand | NEUTRAL |
Key Features
- Uses X7R dielectric with class I suppression class properties.
- Through hole radial mounting suitable for PCB assembly.
- Compact dimensions with length 9.14mm, width 4.07mm, and height 3.81mm.
- Operates within temperature range of -55°C to 125°C.
- Goldmax 300 series providing low ESR at high frequencies.
- Complies with REACH, UL, and RoHS standards for reliability.
- Lead spacing of 5.08mm and lead diameter of 0.51mm ensures secure connections.
- Conformally coated for enhanced durability and electrical performance.
Product Description
KEMET C330C224K1R5TA is a 220 nF multilayer ceramic capacitor designed for reliable performance in electronic circuits. Rated at 100V DC with a ±10% tolerance, it features an X7R dielectric suited for stable capacitance across a wide temperature range from -55°C to 125°C.
This capacitor employs through hole radial termination allowing robust mounting on printed circuit boards. The Goldmax 300 series provides low Equivalent Series Resistance (ESR) making it ideal for high frequency applications such as snubbers, filters, timing circuits, decoupling, and bypass functions in telecommunications, medical, military, and aerospace equipment.
Physical dimensions are compact with a length of 9.14mm, width of 4.07mm, and height of 3.81mm, with lead spacing of 5.08mm and lead diameter of 0.51mm, facilitating easy integration into dense PCB layouts. The device is conformally coated to ensure durability under challenging environmental conditions.
Manufactured in Mexico, this component complies with international standards including REACH, UL, and RoHS, which attests to its chemical safety and environmental compliance. 220 nF capacitance supports a broad range of circuit functions.
High voltage rating of 100V DC suitable for demanding electrical environments. Wide operating temperature from -55°C to 125°C for versatile applications. Through hole radial mounting for secure, reliable PCB placement. X7R dielectric ensures stable electrical characteristics over temperature and voltage variations.
Goldmax 300 series guarantees low ESR for high frequency operation. Compliant with major industry standards for quality assurance. Conformal coating enhances protection against moisture and contaminants.
This Multilayer Ceramic Capacitor is ideal for use in industrial, telecommunications, medical, aerospace, and military electronic designs requiring dependable electrical performance and durability under varying environmental conditions. Explore more electronic components and capacitors in the KEMET series available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 220 nF.
It is rated for 100V DC.
The operating temperature range is from -55°C to 125°C.
It uses an X7R dielectric, which is suitable for stable capacitance across temperature variations.
The dimensions are 9.14mm in length, 4.07mm in width, and 3.81mm in height.
The lead spacing is 5.08mm, and the lead diameter is 0.51mm.
It features through hole radial mounting, which allows for secure placement on printed circuit boards.
This model is part of the Goldmax 300 series, which provides low Equivalent Series Resistance (ESR).
It complies with REACH, UL, and RoHS standards, ensuring chemical safety and environmental compliance.
It is packaged in tape and reel format, suitable for automated assembly processes.
This capacitor is suitable for high frequency applications such as snubbers, filters, timing circuits, decoupling, and bypass functions in telecommunications and medical equipment.
