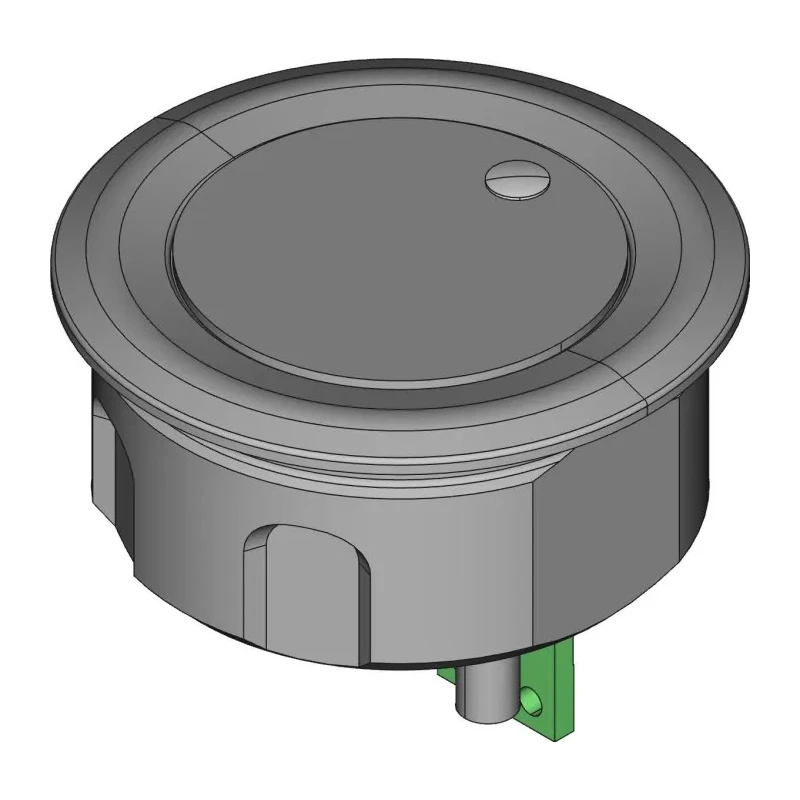

Schurter Illuminated Push Button Switch Panel Mount SPST Red LED 48 V dc/ac Latching 19 mm Cutout 1241.2855.065
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Mount Type | Panel |
| Series | MCS 19 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Contact Rating | 50mA / 24Vdc |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 125mA |
| Contact AC Voltage | 48V ac |
Key Features
- Features a silver actuator button with latching switch operation.
- Illuminated with a red LED for visual indication.
- Designed with a panel mount type for secure installation.
- Operates under temperatures from -20°C to 60°C.
- Contact configuration is Single Pole Single Throw (SPST) with solder terminals.
- Contact rating up to 50mA at 24V dc and switch contact current of 125mA.
- Complies with RoHS standards ensuring environmental safety.
- Includes nut and O-ring seal with anti-vandal design for rugged environments.
Product Description
Schurter 1241.2855.065 Illuminated Push Button Switch is a rugged panel-mount switch designed for demanding industrial and automation environments. This latching push button switch features a silver actuator button with integrated red LED illumination, ensuring clear status indication in electrical panels or control systems.
The switch operates with a 19 mm panel cutout size and has a Single Pole Single Throw (SPST) contact configuration, suitable for switching low power DC and AC circuits up to 48 V. Its solder terminal type facilitates reliable wiring and installation.
Built to withstand challenging conditions, the switch supports a wide operating temperature range from -20°C to 60°C and meets RoHS compliance for environmental safety. The anti-vandal design includes a metal lock nut and O-ring seal offering enhanced durability and protection against dust and moisture penetration.
With a contact rating of 50mA at 24V dc and switch contact current of 125mA, this push button switch is ideal for applications in electrical control panels, automation machinery, HVAC systems, manufacturing equipment, and other commercial or industrial uses.
Silver actuator button with latching operation. Red LED illumination for clear visual feedback. Panel mount type with 19 mm cutout. SPST contact configuration with solder terminals. Operational temperature range from -20°C to 60°C.
Contact rating: 50mA at 24V dc; switch contact current: 125mA. RoHS compliant with anti-vandal robust design. Includes nut and O-ring seal for enhanced sealing.
This switch is a reliable choice for engineers and technicians seeking a durable illuminated push button to integrate into control panels and automated systems. Explore the Electronics & Electricals category at EnvMart for a wide selection of Push Button Switches and complementary components from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration, which is suitable for switching low power DC and AC circuits.
This model can operate at a maximum temperature of 60°C, making it suitable for a range of industrial applications.
The required panel cutout size for installation is 19 mm, allowing for a secure fit in control panels.
The contact rating for this switch is 50mA at 24V DC, with a switch contact current of 125mA.
It has solder terminals, which facilitate reliable wiring and installation in various applications.
The switch features a red LED for clear visual indication of its status.
The minimum operating temperature for this switch is -20°C, allowing it to function in colder environments.
Yes, this switch complies with RoHS standards, ensuring environmental safety and compliance.
The actuator style is a button, designed for latching operation, which provides tactile feedback during use.
The switch includes a nut and an O-ring seal, which enhance sealing and protection against dust and moisture.
This switch is manufactured in India, contributing to its availability in various markets.
It is suitable for applications in electrical control panels, automation machinery, HVAC systems, and manufacturing equipment.
