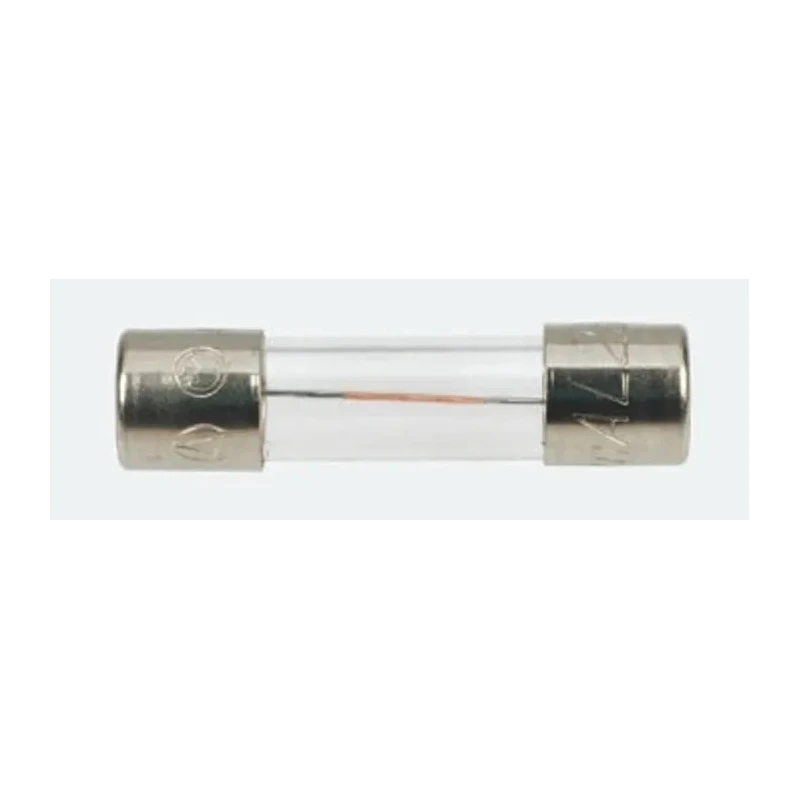

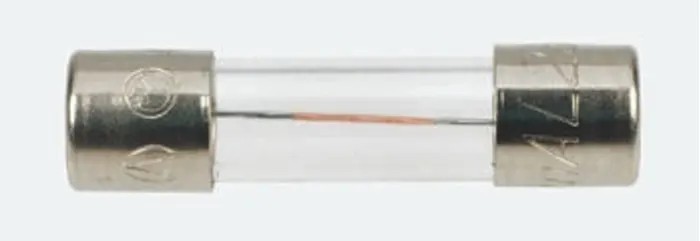

Eaton 80mA Time Delay Glass Cartridge Fuse, 5 x 20 mm, 250V AC, Series S506 S506-80-R

Eaton S506-80-R glass cartridge fuse is a time delay (slow-acting) fuse with a current rating of 80mA and rated for 250V AC operation. It measures 20 mm in overall length and has a diameter of 5 mm, fitting standard 5 x 20 mm fuse holders.

This fuse is glass bodied, allowing clear visual inspection to determine if the fuse has blown, which is essential for maintaining circuit integrity in industrial, electrical, and automation systems. The slow acting characteristic (T speed) enables it to tolerate short surges of high current without blowing immediately, making it suitable for applications with transient currents.

The S506 series fuse provides protection for devices and internal circuits against overcurrent and short circuit events, ensuring operational safety by isolating faulty sections and preventing damage to expensive equipment. It features a low breaking capacity (LBC), so it should be selected according to the expected fault current of the system.

Manufactured to conform with international standards including BSI, CCC, CSA, IMQ, SEMKO, UL, and VDE, this fuse ensures reliable and standardized performance. Its application range includes industrial electrical panels, circuit boards, and automation control panels where reliable protection is critical.

This fuse is slow-acting, enabling it to handle temporary surges without nuisance blow. The glass body facilitates easy visual inspection for fuse status. Rated at 80mA current and 250 volts AC voltage capacity. Standard 5 x 20 mm size fits commonly used Cartridge Fuse holders.

Conforms to multiple international electrical and safety standards. Low breaking capacity suitable for controlled protection environments. Ideal for industrial, laboratory, and commercial electrical circuit protection. Please browse further Eaton catalog products on EnvMart for a comprehensive range of fuse solutions suited to your specific electrical protection needs.
