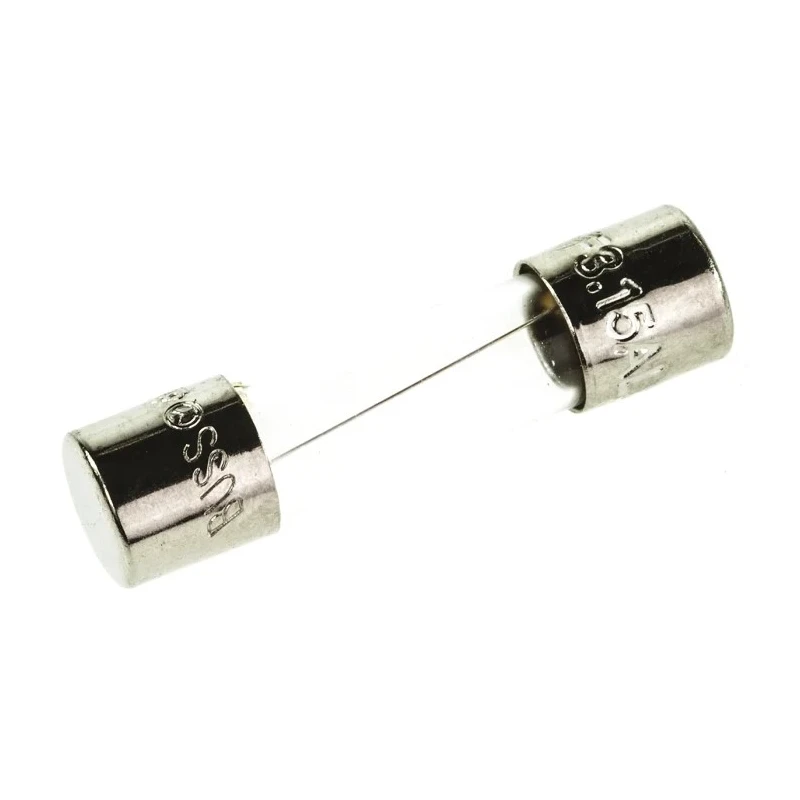

Eaton 3.15A Fast Acting Glass Cartridge Fuse 5 x 20 mm 250V AC S500-3.15-R

Eaton S500-3.15-R is a fast acting glass cartridge fuse designed for overcurrent protection in general electronic and electrical equipment operating on AC supply at 250V. It features a transparent tubular glass body with metal end caps to quickly interrupt fault currents, making it ideal for protective roles in control panels and industrial equipment assemblies requiring fast fault disconnection.

The fuse is rated for a current of 3.15A and is constructed to operate continuously up to a maximum ambient temperature of 125°C. Its fast-acting characteristics limit peak fault energy, providing predictable circuit protection and enhanced safety for sensitive components.

Compliance with multiple international approvals including VDE, SEMKO, IMQ, CSA, CCC and BSI confirms its suitability for global installations. The standard 5 x 20 mm size fits common fuse clips and panel-mounted holders, ensuring effortless replacement and versatility across various applications.

This fuse is widely used for safeguarding control modules in automation systems, protecting power supplies in electronic assemblies, and is suitable for industrial switchgear via distribution blocks. Its transparent construction allows technicians to visually verify fuse continuity without removal, facilitating maintenance and troubleshooting.

Transparent glass body enables visual inspection of fuse status. Fast acting element limits peak fault energy for effective protection. Rated to operate up to 125°C for high temperature environments. Suitable for use in control modules, power supplies, and industrial switchgear.

Complies with multiple international standards including VDE, SEMKO, IMQ, CSA, CCC, and BSI. Fits standard 5 x 20 mm fuse clips and panel-mounted holders for easy replacement. Operating temperature range from -40°C to +125°C ensures durability.

This product is essential for industrial, commercial, and electronic applications requiring reliable and fast-acting fuse protection. Browse more from Eaton and explore the full range of Cartridge Fuses and circuit protection solutions on EnvMart.
