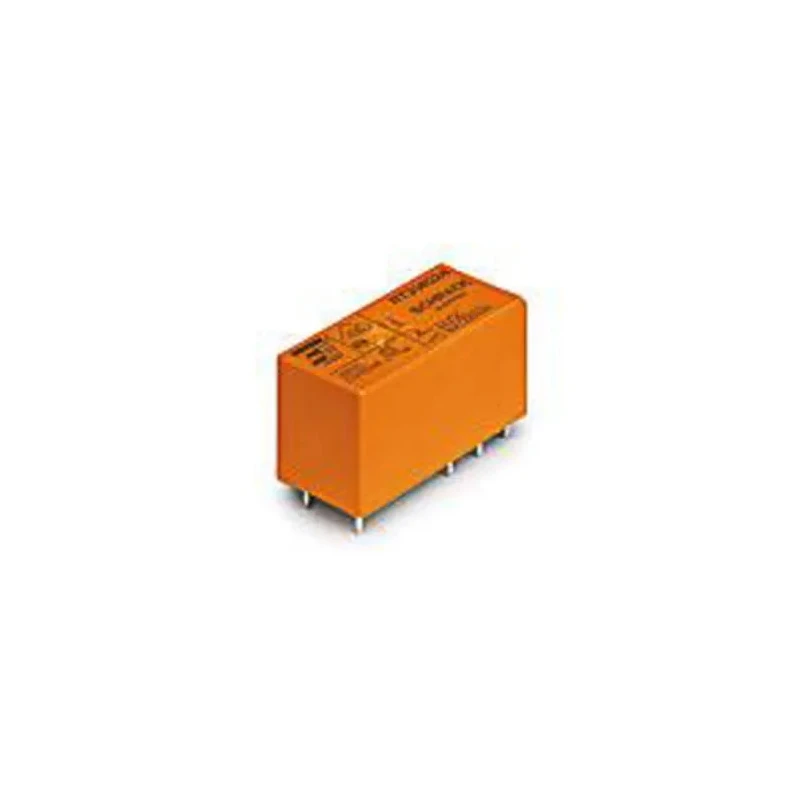

TE Connectivity PCB Power Relay, 12V dc Coil Voltage, 16A Switching Current, SPST Contact Configuration, RTH 1-1415536-9
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RTH |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | VDE, CSA |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- High temperature resistant up to 105°C for reliable operation.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width.
- Silver alloy contact material ensures durable electrical conductivity.
- Through hole terminal type suitable for PCB mounting with 5mm pin spacing.
- Low coil power consumption at 400mW for energy efficiency.
- Reinforced insulation and flux tight orange enclosure provide high reliability.
- Complies with VDE and CSA standards for safety and quality.
- Applications include oven controls, cooking plate controls, and other industrial uses.
Product Description
TE Connectivity 1-1415536-9 PCB Power Relay offers efficient performance with a 12V dc coil voltage and a maximum switching current of 16A in a Single Pole Single Throw (SPST) contact configuration. It belongs to the RTH series designed for high temperature environments, operable up to 105°C ambient temperature. This relay features a compact and robust construction with dimensions measuring 29mm in length, 15.7mm in height, and 12.7mm in width, suitable for PCB through-hole mounting with 5mm pin spacing.
The contacts are made from silver alloy to ensure excellent conductivity and durability under electrical load. The coil resistance is 360Ω, and coil power consumption is low at 400mW, making it energy efficient. The relay housing is flux proof with an orange enclosure that offers reinforced insulation to protect against electrical interference and environmental factors.
Designed for industrial and commercial applications such as oven control and cooking plate control systems, this PCB power relay complies with major safety standards including VDE and CSA, ensuring trustworthy operation in critical environments. Its switching capability includes up to 400V AC voltage and switching power up to 4 kVA.
The product is manufactured in Austria and delivers consistent performance in harsh ambient conditions ranging from -40°C minimum to 105°C maximum operating temperature. High ambient temperature tolerance of 105°C at rated load.
Sensitive coil operation at 400 mW power. Reinforced insulation and flux proof design. Compliant with UL, CSA, and VDE approvals. Suitable for industrial, laboratory, HVAC, and manufacturing automation applications. Explore more power relay solutions on EnvMart for reliable electrical control components from recognized global brands.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 16A.
This model operates with a coil voltage of 12V DC.
The relay has compact dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width.
It features a Single Pole Single Throw (SPST) contact configuration.
The relay can operate at a maximum temperature of 105°C.
The coil resistance is 360Ω.
The contacts are made from silver alloy to ensure excellent conductivity.
This relay is designed for PCB mounting with a through hole terminal type and 5mm pin spacing.
It complies with VDE and CSA standards for safety and quality.
The coil power consumption is low at 400mW, making it energy efficient.
The minimum operating temperature is -40°C.
This relay is suitable for applications such as oven controls, cooking plate controls, and other industrial uses.
