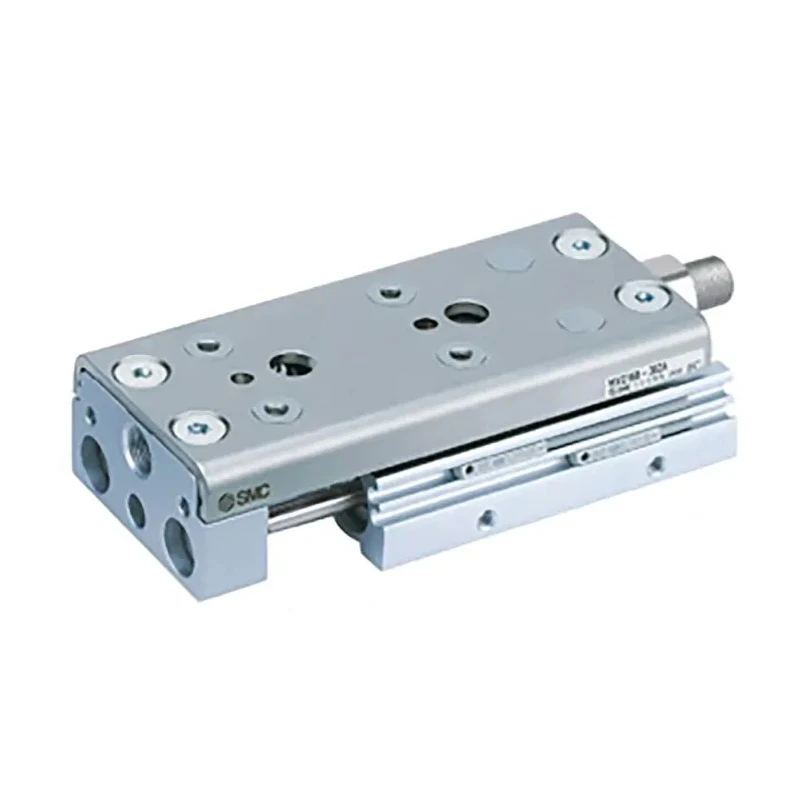

SMC Pneumatic Guided Cylinder 8mm Bore MXQC Series 30 mm Stroke Double Acting Through Hole Mount MXQ8C-30Z

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Guided Cylinder 8mm Bore MXQC Series 30 mm Stroke Double Acting Through Hole Mount MXQ8C-30Z



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Body Material	Special Stainless Steel
Maximum Operating Pressure	0.7 Mpa
Height	21mm
Length	88.5mm
Model	MXQ8C-30Z
Gross Weight	170g
Width	38mm
Mount Type	Through Hole
Series	MXQC
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	30mm
Bore Diameter	8mm
Action Type	Double Acting
Standards/Approvals	RoHS
Cushioning Type	Rubber

Key Features

This guided cylinder uses a body made from special stainless steel for enhanced durability.
It operates with a maximum pressure of 0.7 MPa and features rubber cushioning for impact absorption.
The cylinder's operating temperature ranges from -10°C to 60°C, suitable for various industrial environments.
The compact size with dimensions 88.5 mm length, 38 mm width, and 21 mm height supports easy installation.
The 170g lightweight design provides energy savings and less wear, while allowing a piston speed up to 500 mm/s.
It includes molded grooves for auto-switch mounting without spacers for simplified setup.
Double ported body design offers increased mounting flexibility on both sides of the cylinder.
Applications include precise pick and place operations, low friction transport, pallet and conveyor positioning, and vertical Z-axis handling.

Product Description

SMC MXQ8C-30Z Pneumatic Guided Cylinder is part of the MXQC series, featuring an 8mm bore diameter and a 30 mm stroke length. This double acting guided cylinder has a through hole mounting type and is constructed using special stainless steel, ensuring durability and resistance to harsh industrial conditions. Operating within a temperature range of -10°C to 60°C and maximum operating pressure of 0.7 MPa, it is well-suited for a broad range of pneumatic automation applications.

The cylinder has a compact design with dimensions of 88.5 mm length, 38 mm width, and 21 mm height, weighing only 170g. It offers a maximum piston speed of 500 mm/s and incorporates rubber cushioning to reduce impact stress, prolonging service life. The double ported body design with grooves for auto-switches on both sides facilitates multiple mounting options and ease of installation without additional spacers.

The MXQ-Z slide table guided cylinder is engineered to be lightweight and energy efficient, reducing weight by 22% compared to previous versions. Stroke limiters and centrally placed stroke adjusters minimize deflection and protect machinery and workpieces from damage. This pneumatic guided cylinder is an ideal solution for industrial settings that demand precise handling including pick and place automation, precision placement of workpieces, low friction transport, pallet and conveyor positioning, as well as vertical Z-axis applications.

This guided cylinder features a robust stainless steel body with special material properties. It has double acting action type with a 30 mm stroke for versatile pneumatic control. Mount type is through hole enabling secure and flexible assembly.

Maximum operating pressure is rated at 0.7 MPa supporting efficient pneumatic force. Operating temperature range is from -10°C to 60°C permitting use in varied ambient conditions. Cushioning is provided by rubber components to absorb shocks during operation.

Compact dimensions of 88.5x38x21 mm and lightweight at 170 g facilitate effortless integration. Designed for industrial automation applications requiring durability and precision. Choose SMC Pneumatic Guided Cylinders from EnvMart for reliable performance in manufacturing, automation, and material handling operations.
