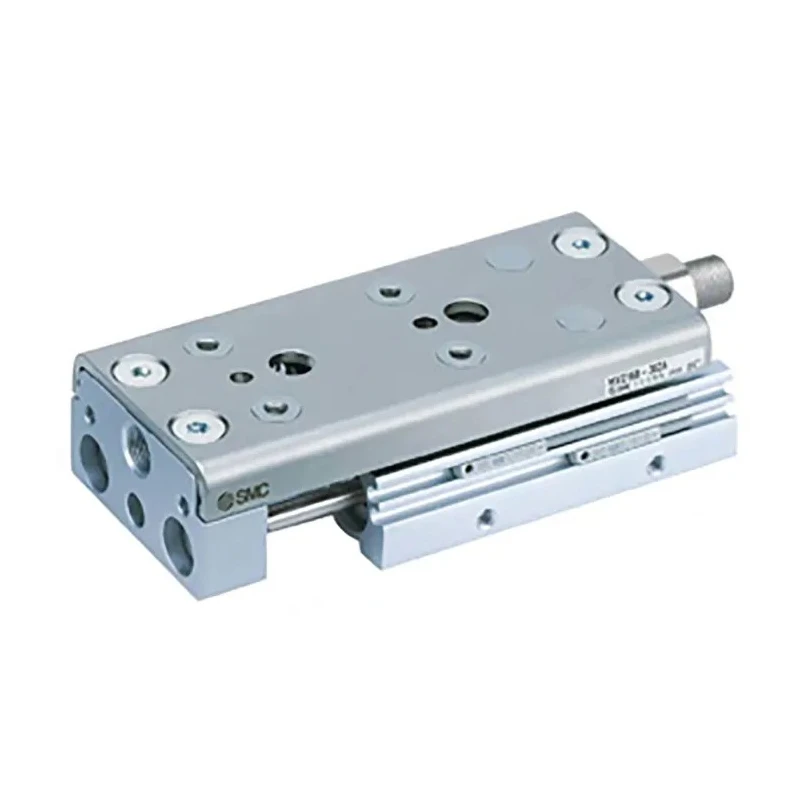

SMC Pneumatic Guided Cylinder 6mm Bore Double Acting 30mm Stroke MXQ6A-30Z

SMC MXQ6A-30Z Pneumatic Guided Cylinder is a high-precision pneumatic actuator featuring a 6mm bore diameter and a 30mm stroke length suitable for industrial automation and fluid power applications. This double acting cylinder integrates a stainless steel body designed for strength and corrosion resistance extending its service life even in demanding environments. The dual rod design facilitates superior guidance and stability, reducing lateral deflection during operation, making it ideal for applications demanding high accuracy such as pick and place, pallet and conveyor positioning, and vertical Z axis handling.

The cylinder is equipped with rubber cushioning to protect machinery from shock loads and minimize noise and vibration. It is engineered to operate reliably within a broad temperature range from -10°C up to 60°C and withstands maximum pressures of 0.7 MPa. Compact dimensions (length 95.5mm, width 37mm, height 23mm) and mounting versatility with lateral and through hole mounting types allow seamless integration into various pneumatic systems. The unit weighs approximately 170 grams, reflecting its lightweight stainless steel construction, which contributes to energy efficiency.

Compliant with RoHS regulations, the SMC MXQ6A-30Z guided cylinder ensures the use of environmentally friendly materials. The design incorporates grooves for auto-switches on both sides of the double ported body, enhancing installation flexibility. Its energy-saving type B design and central stroke adjusters contribute to shorter cycle times and reduced deflection, delivering improved machinery throughput.

Applications of this guided cylinder span across industrial automation sectors including precision placement of workpieces, low friction transport systems, and vertical axis handling tasks. Its robust yet lightweight construction balances durability with operational efficiency, making it suitable for manufacturing, assembly lines, packaging, and processing industries.

Constructed with special stainless steel body for enhanced durability. Dual rod type ensures stable guidance and reduces deflection. Rubber cushioning absorbs impacts and protects equipment. Wide operating temperature range from -10°C to 60°C.

Sustains maximum operating pressure up to 0.7 MPa. Compact size facilitates easy mounting and integration. Lightweight design improves energy efficiency and handling. Complies with RoHS environmental standards. Double ported body with auto-switch grooves for flexible installation.

Suitable for pick and place, conveyor positioning and precision applications. Browse more Pneumatic Guided Cylinders and SMC products on EnvMart for reliable pneumatic automation components.
