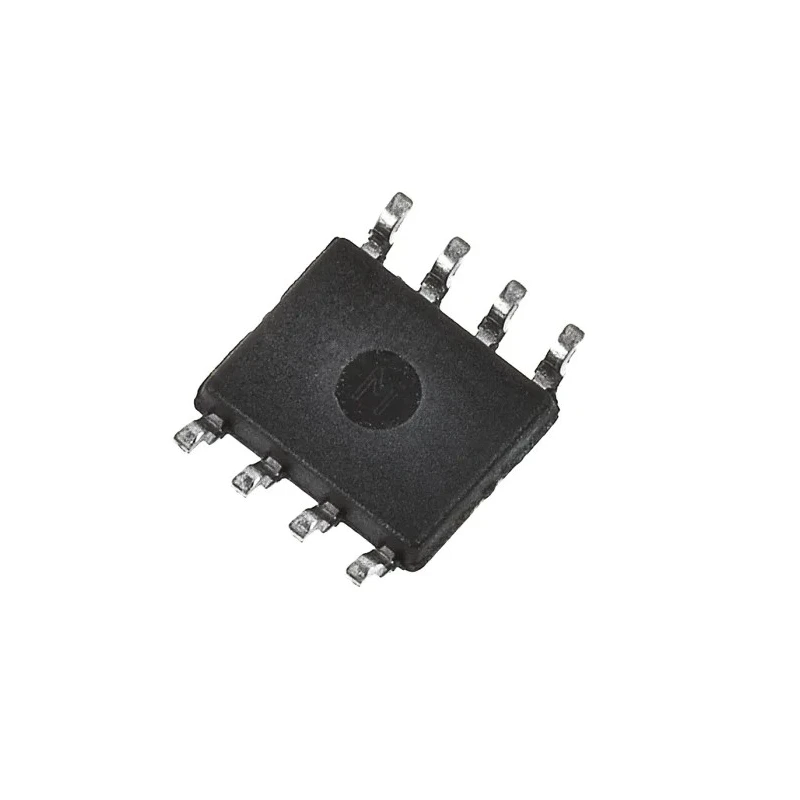

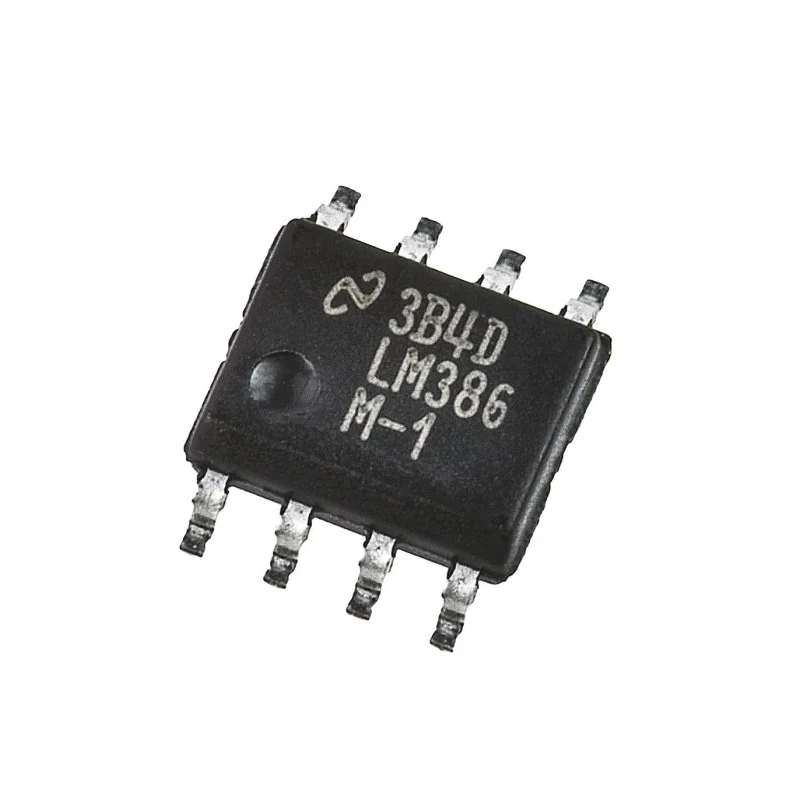

Texas Instruments Audio Power Amplifier, 8-Pin SOIC, 0.32W Output Power, Class A-B, Surface Mount LM386M-1/NOPB

Texas Instruments LM386M-1/NOPB audio power amplifier IC is designed for driving speakers in low power audio applications. It features a single channel Class A-B amplifier offering 0.32 watts of output power. The device is housed in an 8-pin SOIC surface mount package, making it suitable for compact electronic circuits.

Operating from a supply voltage between 5V and 9V, the amplifier delivers audio amplification with a gain bandwidth product of 300 kHz, ensuring clear and efficient sound output. The small form factor, with dimensions of 5.8 mm length, 4.81 mm width, and 1.75 mm height, enables integration into portable and space-constrained audio equipment.

The LM386M-1/NOPB includes advanced protective features such as thermal overload and short-circuit protection, improving reliability and safety in electronic designs. It is rated for ambient operating temperatures from 0°C up to 70°C, suitable for standard environmental conditions.

This amplifier IC is widely used in industrial, consumer electronics, and educational projects requiring low power audio amplification. Its surface mount design enhances manufacturing efficiency and ease of assembly.

Amplifier type is audio power amplifier with Class A-B operation. Single channel amplifier with a surface mount SOIC package. Gain bandwidth product of 300 kHz for quality audio output. Operates with a supply voltage ranging from 5V to 9V.

Compact size measuring 5.8 mm length, 4.81 mm width, and 1.75 mm height. Designed for operating temperatures from 0°C to 70°C. Includes features for thermal overload and short-circuit protection. Ideal for integration in small electronic audio devices.
