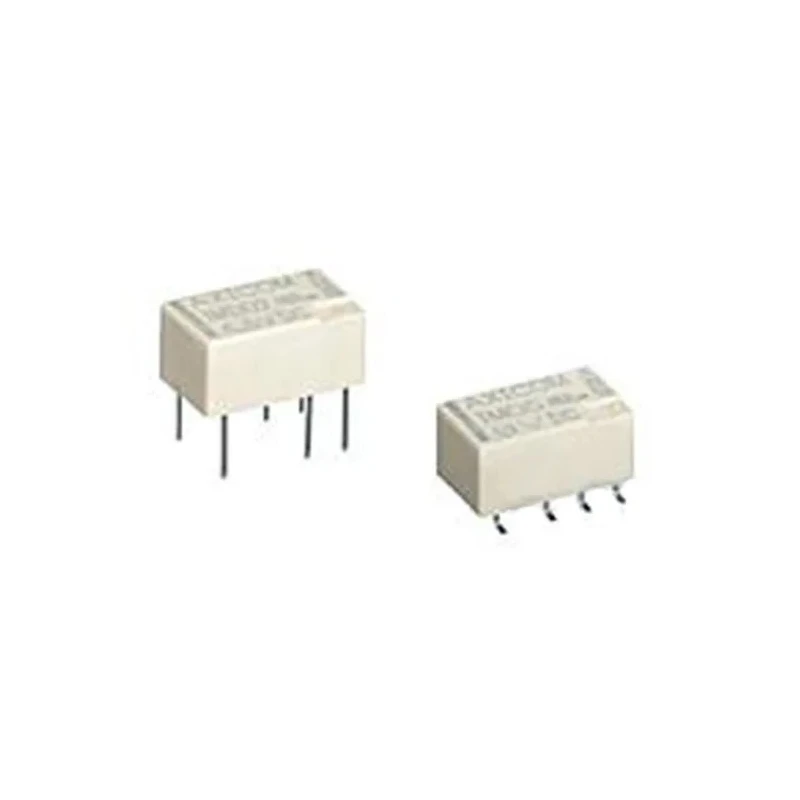

TE Connectivity Surface Mount Signal Relay 5V DC Coil 2A DPDT 1462043-3
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IME |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | UL 508 File No. E 111441 |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- Compact surface mount design suitable for PCB integration.
- Dual Pole Double Throw (DPDT) contact configuration for flexible circuit control.
- Gold plated contacts ensure reliable low resistance switching.
- Operates reliably in a temperature range of -40°C to 85°C.
- Switching capabilities include 250V AC and 220V DC maximum voltages.
- Low coil power consumption at 140mW with coil resistance of 178 Ohms.
- Meets UL 508 standards with high dielectric strength and surge voltage ratings.
- Ideal for use in home appliances, office machines, and industrial control applications.
Product Description
TE Connectivity 1462043-3 Surface Mount Signal Relay is a high-performance relay designed for precise signal switching in electronic circuits. Featuring a 5V DC coil voltage and 2A switching current, it employs a DPDT contact configuration which enables dual switching paths. The compact form factor, measuring 10mm in length, 6mm in width, and 5.65mm in height, is optimized for surface mounting applications, making it suitable for modern PCB designs.
This relay has gold plated contacts that provide excellent conductivity and corrosion resistance, ensuring low contact resistance and high switching reliability. It operates efficiently with a coil power of 140mW and a coil resistance of 178 ohms.
Designed for rigorous industrial environments, the relay withstands operating temperatures from -40°C up to 85°C. It supports switching voltages of up to 250V AC and 220V DC, making it versatile for a wide range of electrical applications such as home automation, office equipment, and control systems.
Additionally, it complies with UL 508 standards (File No. E 111441), providing assurance of safety and quality. The solder-type terminals facilitate secure mounting and reliable electrical connections on PCB boards.
Manufactured in Portugal, this TE Connectivity relay offers durability and performance for signal conditioning needs in industrial, commercial, and automation sectors. Compact surface mount design suitable for PCB integration.
Dual Pole Double Throw (DPDT) contact configuration for flexible circuit control. Gold plated contacts ensure reliable low resistance switching. Operates reliably in a temperature range of -40°C to 85°C. Switching capabilities include 250V AC and 220V DC maximum voltages.
Low coil power consumption at 140mW with coil resistance of 178 Ohms. Meets UL 508 standards with high dielectric strength and surge voltage ratings. Ideal for use in home appliances, office machines, and industrial control applications.
Constructed with solder-type terminals for secure PCB mounting. Manufactured in Portugal to ensure quality and reliability. Explore more Signal Relays and related components in the Electronics & Electricals section of EnvMart for your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage for this relay is 250V AC and 220V DC.
This model operates with a coil voltage of 5V DC and has a coil power consumption of 140mW.
The relay measures 10mm in length, 6mm in width, and 5.65mm in height.
It features a Dual Pole Double Throw (DPDT) contact configuration, allowing for flexible circuit control.
The coil resistance of this relay is 178 Ohms.
This relay operates reliably within a temperature range of -40°C to 85°C.
The relay is equipped with solder-type terminals for secure PCB mounting.
Yes, it meets UL 508 standards, ensuring safety and quality in its performance.
The contacts of this relay are made from gold plated material, which provides excellent conductivity and corrosion resistance.
This relay is manufactured in Portugal.
The maximum switching current for this relay is 2A.
It is ideal for use in home appliances, office machines, and industrial control applications.
