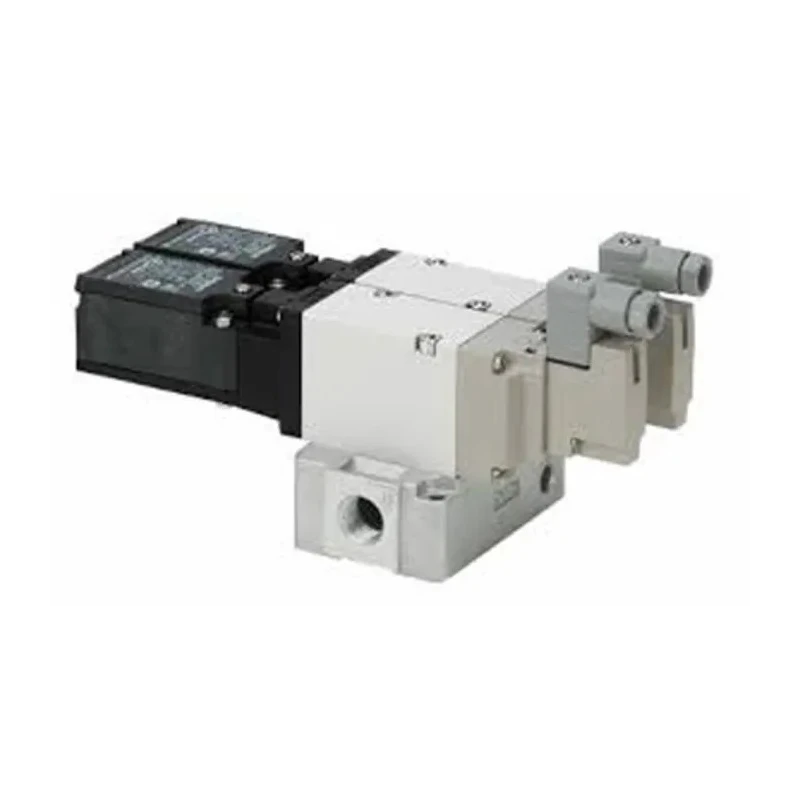

SMC Pneumatic Solenoid Valve 1/2 in Threaded Port, 3-Port, 24V, Die Cast Aluminium Body VP700 Series

SMC VP744R-5DZ1-04F-M-X538 Pneumatic Solenoid Valve from the VP700 Series is designed for industrial and safety-critical pneumatic systems requiring reliable air control at 24 volts. This valve meets stringent ISO13849-1 category 3 and 4 standards, ensuring safe venting of compressed air in emergency conditions.

Manufactured using durable die cast aluminium, the valve body offers excellent strength and corrosion resistance, suitable for demanding mechanical and fluid power applications in construction, manufacturing, and laboratory pneumatic systems. The valve features three ports with 1/2 inch threaded connections, female gender, and supports base mounting for secure installation.

Key functional elements include a dual-station design allowing safe pressure venting, a residual pressure release valve equipped with a limit switch for continuous position status monitoring, and a normally closed return spring operation for fail-safe performance. An LED position indicator aids in easy visual status verification, and the varistor voltage suppressor mitigates electrical surges enhancing longevity.

Operating parameters include a maximum operating pressure of 1 MPa, pilot pressures ranging from 0.25 MPa to 0.7 MPa, and an ambient temperature range from -10°C to 50°C. Its low power consumption of 0.45W and DIN connector electrical interface support efficient and standardized integration within automated pneumatic safety control systems.

ISO13849-1 category 3 & 4 compliant for safety-related pneumatic applications. Safe venting of compressed air via two stations under failure conditions. Limit switch enables valve state monitoring for operational safety.

LED indicator for easy valve position identification. Robust die cast aluminium construction with threaded ports. Compact size: 224.8mm length, 88.8mm height, 40mm width. Compatible with SMC FRL modular systems for enhanced system flexibility.

Designed for low solenoid power consumption and high reliability. Certified compliant with RoHS, cULus, and CE standards.

This valve is ideal for pneumatic safety control in industrial manufacturing, assembly machinery, and testing environments that require controlled compressed air venting compliant with international safety standards. It ensures precise, reliable, and safe operation, making it a critical component for pneumatic control systems.
