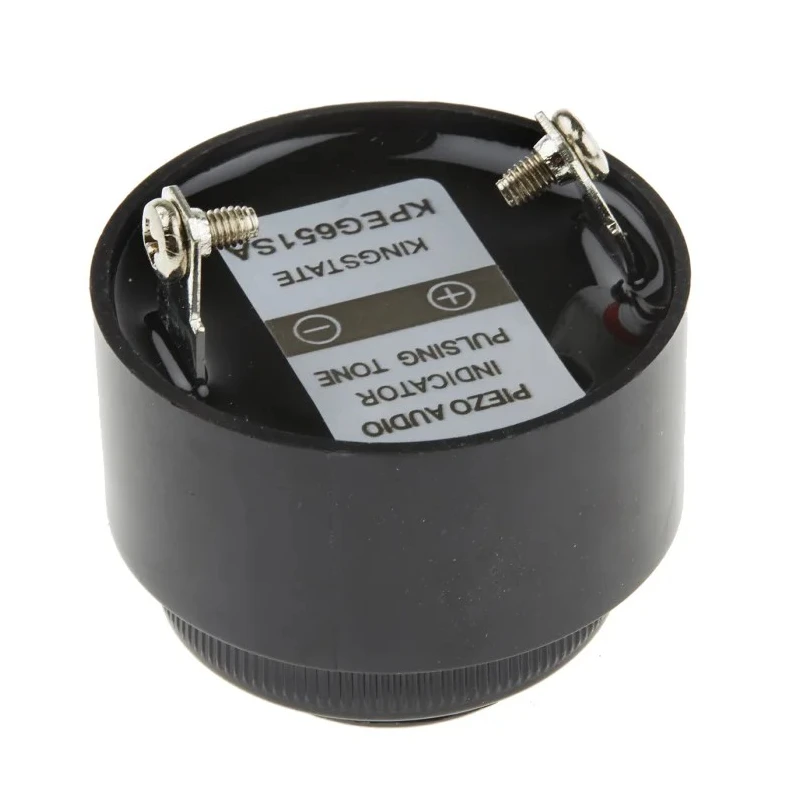

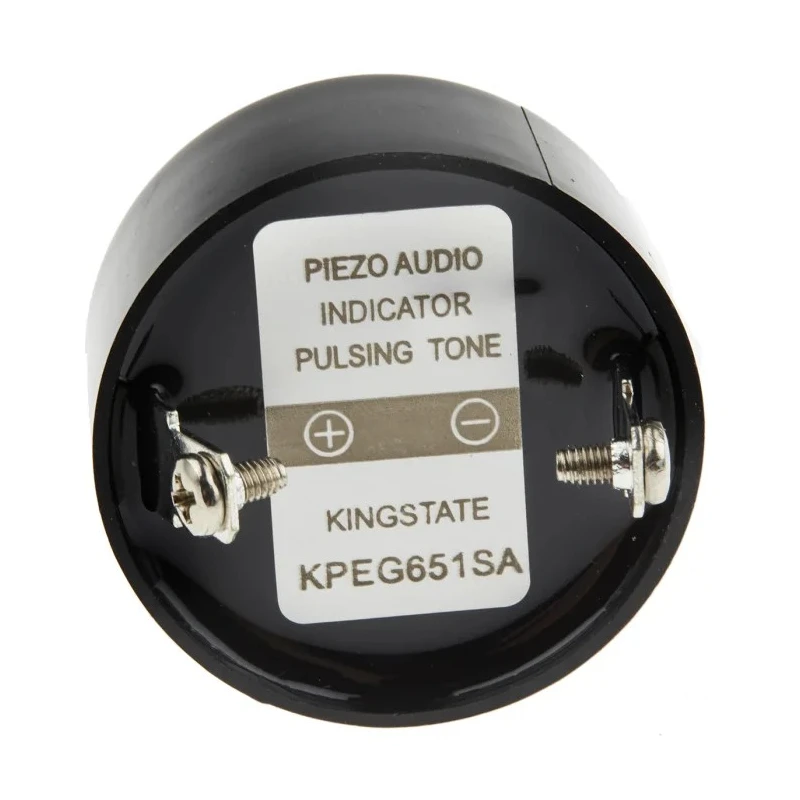

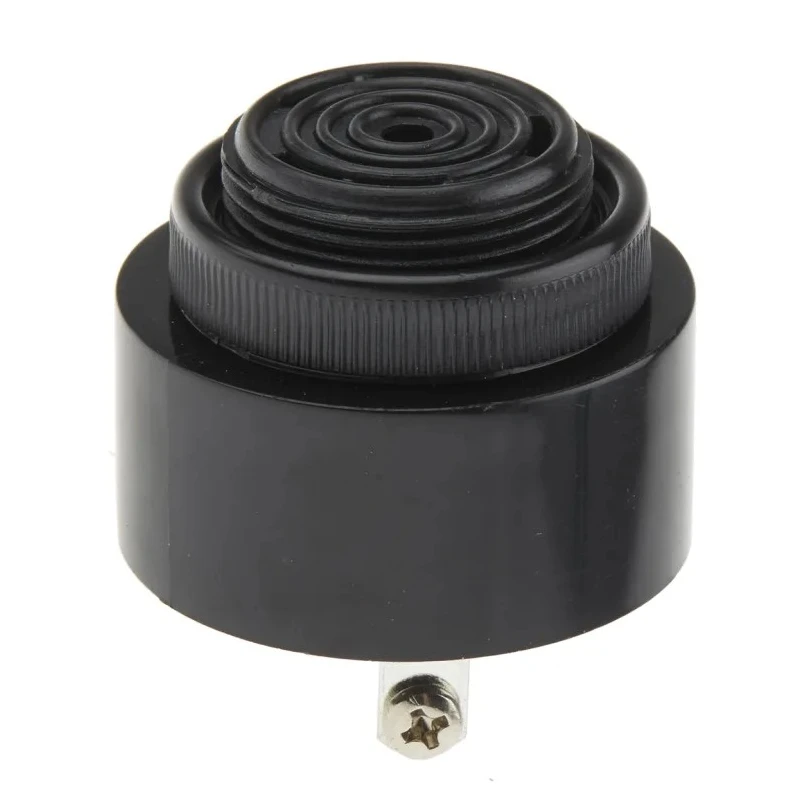

RS Pro 80 dB Panel Mount Fast Pulse Internal 33 mm Piezo Buzzer Component 6 V dc Min 28 V dc Max 5358360P
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 42.5mm |
| Brand | RS Pro |
| Sound Level | 80dB |
| Height | 33mm |
| Model | 5358360P |
| Drive Type | Internal |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 3.3kHz |
| Termination Style | Wire |
| Maximum Supply Voltage | 28V dc |
| Minimum Supply Voltage | 6V dc |
| Supply Current | 12mA |
| Tone Type | Fast Pulse |
| Minimum Frequency | 2300Hz |
| Strict testing has ensured these piezo buzzers meet the ANSI/ESD S20.20 | 2014 and BS EN 61340-5-1:2007 standards, which means they've been handled and packaged in a way that protects them from harmful electrostatic discharge. Application for these buzzers include car equipment, doorbells and fire alarms |
Key Features
- This piezo buzzer operates at a minimum supply voltage of 6 V DC and a maximum of 28 V DC.
- It features a panel mount type with screw mounting for secure installation.
- The device has a diameter of 42.5 mm and a height of 33 mm making it compact for various applications.
- Operates within a temperature range of -30°C to +85°C for robust performance.
- Supply current is 12 mA, ensuring reliable sound output with low power consumption.
- Generates a fast-pulsed tone at frequencies ranging from 2300 Hz to 3.3 kHz.
- Termination is via wire style for easy electrical connection.
- RoHS compliant ensuring environmental safety standards are met.
Product Description
The RS Pro 5358360P is a panel mount piezo buzzer component designed to emit an 80 dB sound level with a fast pulse internal drive. It operates efficiently between 6 V DC minimum and 28 V DC maximum voltage levels, drawing a supply current of 12 mA. Compact in design, it measures 42.5 mm in diameter and 33 mm in height, and is suited for easy screw mounting in panels. The buzzer operates reliably across a broad temperature range from -30°C up to +85°C, making it suitable for various industrial and commercial environments.
This piezo buzzer produces fast-pulsed tones in the frequency range of 2300 Hz to 3.3 kHz, offering a clear and audible alert sound. Its wire termination style ensures straightforward integration into existing circuitry. RoHS compliance affirms this component meets strict environmental and safety standards. These features make it ideal for deployment in automotive equipment, doorbells, fire alarms, and general consumer appliances such as computers and microwaves.
RS Pro products undergo rigorous quality testing meeting ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring protection from harmful electrostatic discharge during handling and packaging. This robust piezo buzzer is a reliable component for industrial, commercial, and consumer electronic applications.
This piezo buzzer operates at a minimum supply voltage of 6 V DC and a maximum of 28 V DC. Screw-mount panel mount for secure and stable installation. Produces an 80 dB fast pulse sound signal with frequencies between 2300 Hz and 3.3 kHz.
Compact size with 42.5 mm diameter and 33 mm height for versatile integration. Wide operating temperature range from -30°C to +85°C for dependable use in various environments. Low current consumption at 12 mA supply current improves efficiency.
Wire termination ensures easy electrical connection. Conforms to RoHS environmental standards. Applications include automotive equipment, doorbells, fire alarms, and consumer electronics. Explore more RS Pro Piezo Buzzers for reliable sound signaling solutions in electronics manufacturing and maintenance at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The piezo buzzer operates at a minimum supply voltage of 6 V DC and a maximum of 28 V DC.
It generates a sound level of 80 dB.
The buzzer produces fast-pulsed tones at frequencies ranging from 2300 Hz to 3.3 kHz.
This model has a diameter of 42.5 mm and a height of 33 mm.
It features a wire termination style for easy electrical connection.
The piezo buzzer requires a supply current of 12 mA.
It operates within a temperature range of -30°C to +85°C.
It is designed for panel mount installation with screw mounting for secure attachment.
Yes, it conforms to RoHS environmental standards.
This buzzer is suitable for applications such as automotive equipment, doorbells, fire alarms, and consumer electronics.
It has been tested to meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection.
It uses an internal drive type for sound generation.
