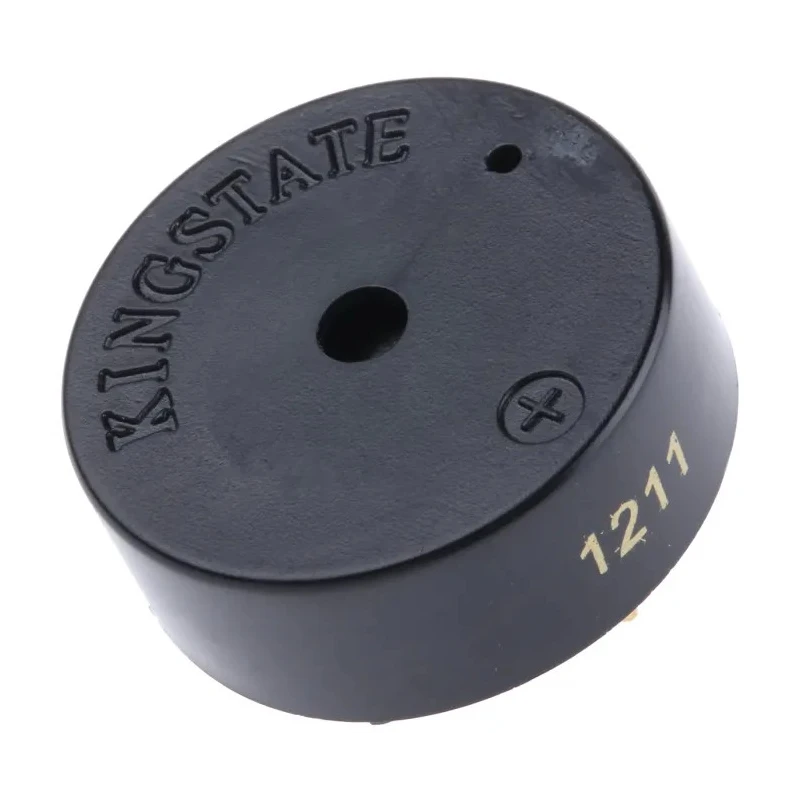

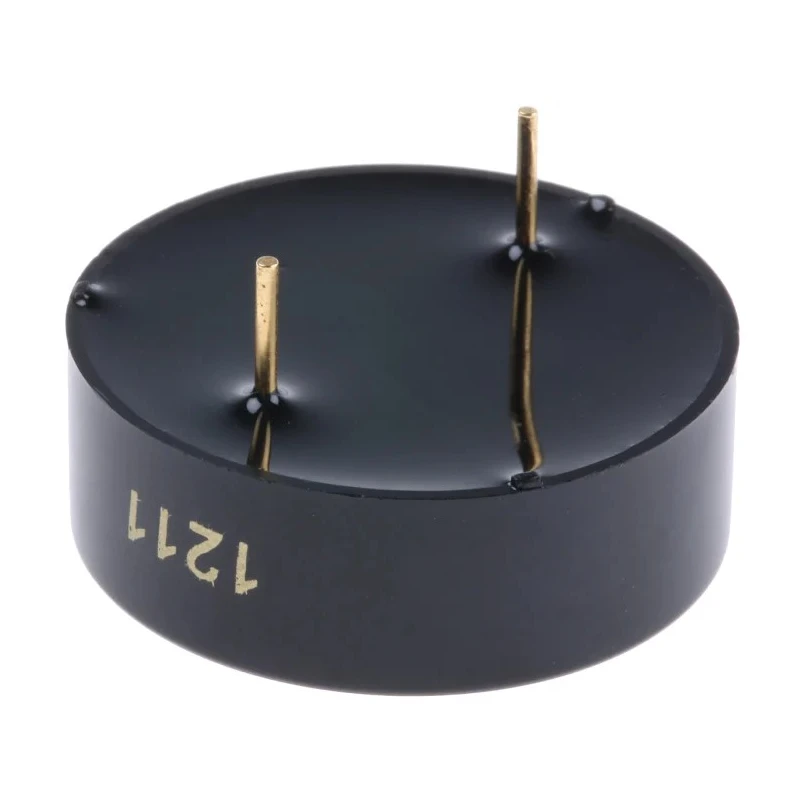

RS PRO Through Hole Continuous Internal 9 mm Buzzer 80 dB 3 V dc Min 20 V dc Max 535-8225
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 24mm |
| Brand | RS PRO |
| Sound Level | 80dB |
| Height | 9mm |
| Model | 535-8225 |
| Drive Type | Internal |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Frequency | 3.9kHz |
| Termination Style | Wire |
| Maximum Supply Voltage | 20V dc |
| Minimum Supply Voltage | 3V dc |
| Supply Current | 15mA |
| Tone Type | Continuous |
| Minimum Frequency | 2900Hz |
Key Features
- This buzzer uses an internal drive for continuous tone output.
- Features a through hole mount style suitable for PCB mounting.
- Has a diameter of 24 mm and a height of 9 mm.
- Operating temperature range is from -30°C to 85°C.
- Termination style is wire for easy connection.
- Sound level is rated at 80 dB for audible alerts.
- Supply current at typical operation is 15 mA.
- RoHS compliant with no additional standards approvals.
Product Description
RS PRO 535-8225 is a high sound output piezo buzzer designed for reliable PCB mounting using through hole technology. It delivers a continuous tone with an internal drive mechanism and a 9 mm height profile, housed in a 24 mm diameter circular case. Operable at supply voltages ranging from 3 V dc minimum up to 20 V dc maximum, it offers flexibility for various electronic applications requiring sound signaling.
The buzzer operates efficiently within a broad temperature range from -30°C to 85°C, making it suitable for diverse industrial, electronic, and embedded system environments. Its 80 dB sound level provides clear audible alerts while consuming a low supply current of approximately 15 mA. The termination style with wire facilitates straightforward connection on PCB assemblies.
This component is ideal for industrial machines, laboratory equipment, electronic controls, safety alarms, and other commercial electronic systems requiring dependable buzzer signals. Its frequency range of 2900 Hz to 3.9 kHz supports standard tone signaling applications.
This buzzer features an internal drive for continuous tone output. Designed with through hole mounting for secure PCB installation. Compact form factor with a 24 mm diameter and 9 mm height. Wide operational temperature range from -30°C to 85°C.
Termination style consists of wire connections for ease of use. Delivers 80 dB sound level for effective audible alerts. Frequency range spans from 2900 Hz to 3.9 kHz for standard signaling. Low supply current of 15 mA minimizes power consumption.
RoHS compliant with no additional standards approvals. Manufactured in Taiwan, Province of China, ensuring quality production.
Explore EnvMart's comprehensive range of electronic components and Piezo Buzzers built for performance and reliability in demanding industrial, commercial, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sound level of this buzzer is rated at 80 dB, providing clear audible alerts for various applications.
It operates efficiently within a temperature range from -30°C to 85°C, making it suitable for diverse environments.
The buzzer can operate at supply voltages ranging from a minimum of 3 V dc to a maximum of 20 V dc.
This model has a diameter of 24 mm and a height of 9 mm, making it compact for PCB mounting.
It features a wire termination style, which facilitates straightforward connection on PCB assemblies.
The buzzer produces a continuous tone, suitable for various signaling applications.
The frequency range spans from 2900 Hz to 3.9 kHz, supporting standard tone signaling applications.
This buzzer is manufactured in Taiwan, Province of China.
The typical supply current during operation is approximately 15 mA, which helps minimize power consumption.
It uses a through hole mount style, which is suitable for secure PCB installation.
This component is ideal for industrial machines, laboratory equipment, electronic controls, and safety alarms.
Yes, it is RoHS compliant, ensuring it meets environmental regulations.
