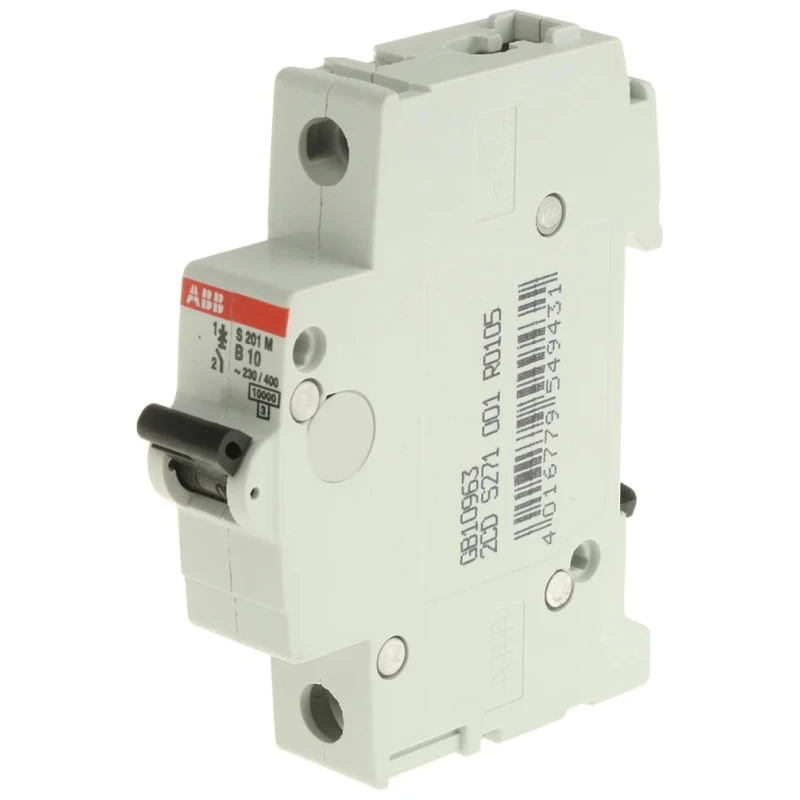

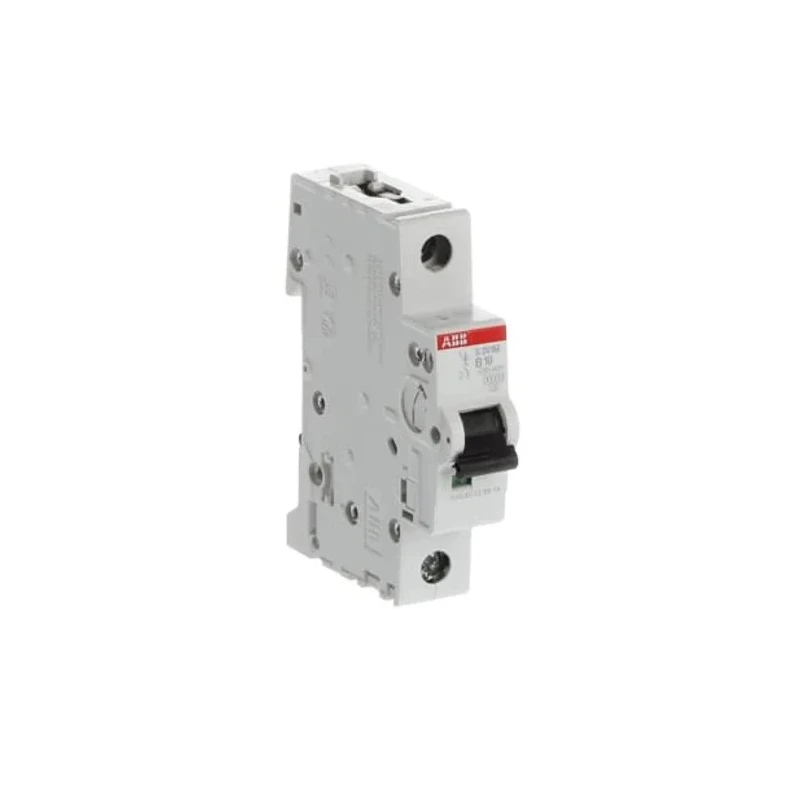

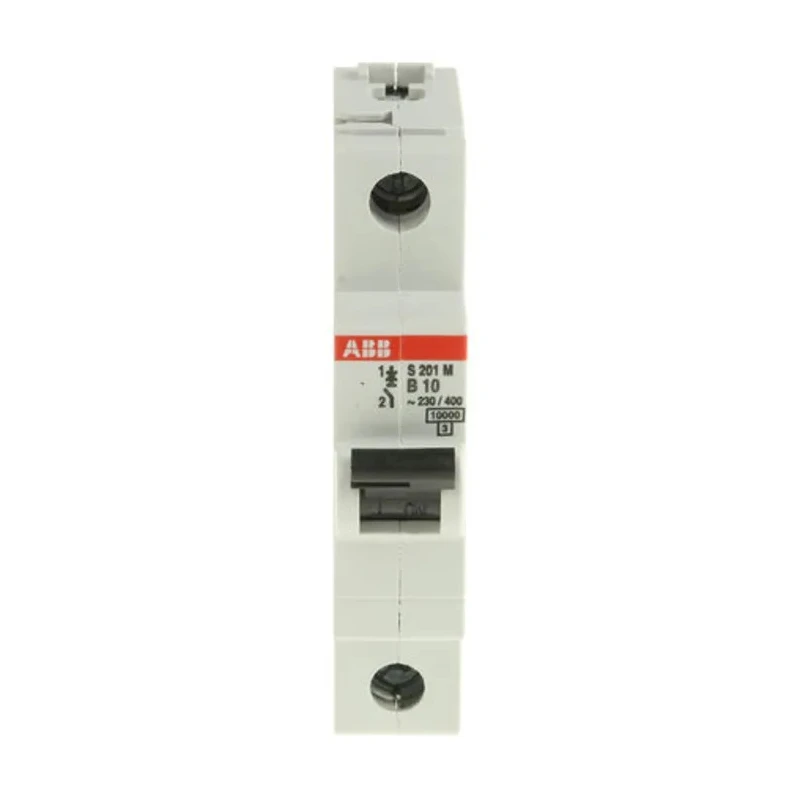

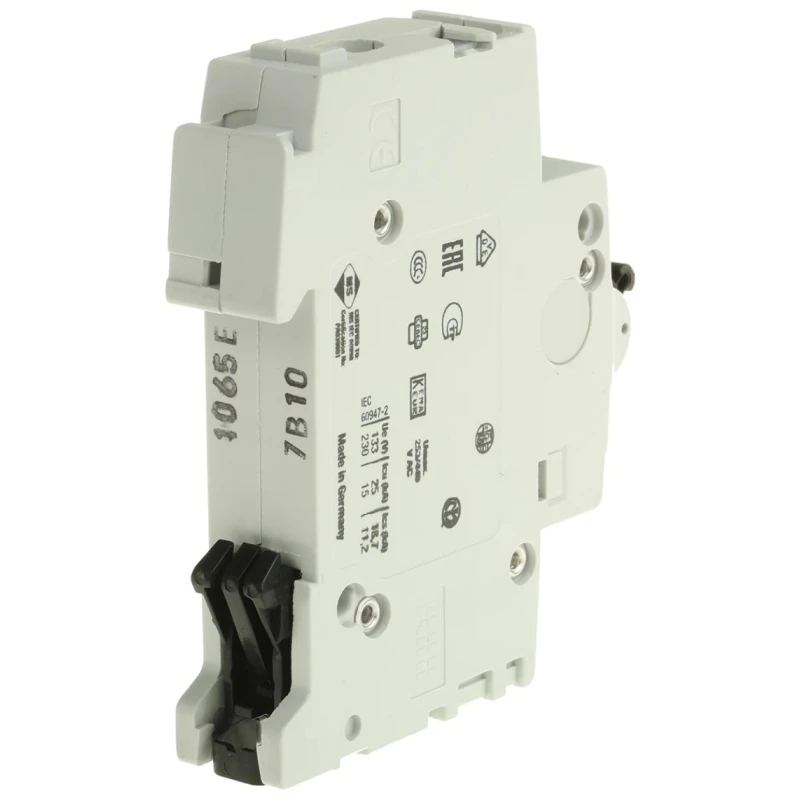

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 10A, Type B, 253V AC, 72V DC, 10kA 2CDS271001R0105 S201M-B10

ABB 2CDS271001R0105 S201M-B10 Miniature Circuit Breaker is a high-quality electrical protection device designed for residential lighting systems, light commercial facilities, and resistive load applications. It supports a rated current of 10 amperes and features type B tripping characteristics, allowing it to trip instantly when current exceeds 3 to 5 times the nominal rating, protecting circuits from overloads and short circuits effectively.

This MCB operates at a rated AC voltage of 253V and a rated DC voltage of 72V, with a strong breaking capacity of 10kA ensuring high safety margins during fault conditions. Its rugged screw terminals offer reliable connections that withstand vibration and mechanical stresses, and the DIN rail mount enables straightforward installation in standard electrical enclosures.

The product is rated IP20 for ingress protection, meaning its terminals are touch-safe, reducing the risk of electric shock. The thermal tripping mechanism ensures stable and effective operation under thermal stress. With dimensions of 88mm in height, 76mm in depth, and 17.5mm in width, the compact design allows for dense electrical panel layouts.

Designed to operate over a broad temperature range from -25°C to +55°C, this miniature circuit breaker suits harsh environments and ensures consistent circuit protection year-round. It accommodates wire sizes from 0.75mm² up to 35mm², providing wide compatibility for various wiring schemes.

Features type B tripping for quick response to electrical faults. Robust screw terminals ensure lasting electrical connections. Supports DIN rail mounting for easy panel installation. Touch-safe terminals with IP20 rating improve user safety.

Wide operating temperature range enables use in demanding conditions. Compact size fits most standard electrical enclosures. Capable of handling short circuits with 10kA breaking capacity. Manufactured in Germany with compliance to IEC/EN IEC/EN 60898-1 and IEC/EN 60947-2.

This Miniature Circuit Breaker is ideal for industrial, residential, commercial, and HVAC electrical protection applications. Its reliable performance and high safety standards make it a trusted choice for electricians and engineers seeking durable circuit protection devices. Browse the wide range of ABB electrical products on EnvMart for comprehensive automation and protection solutions.
