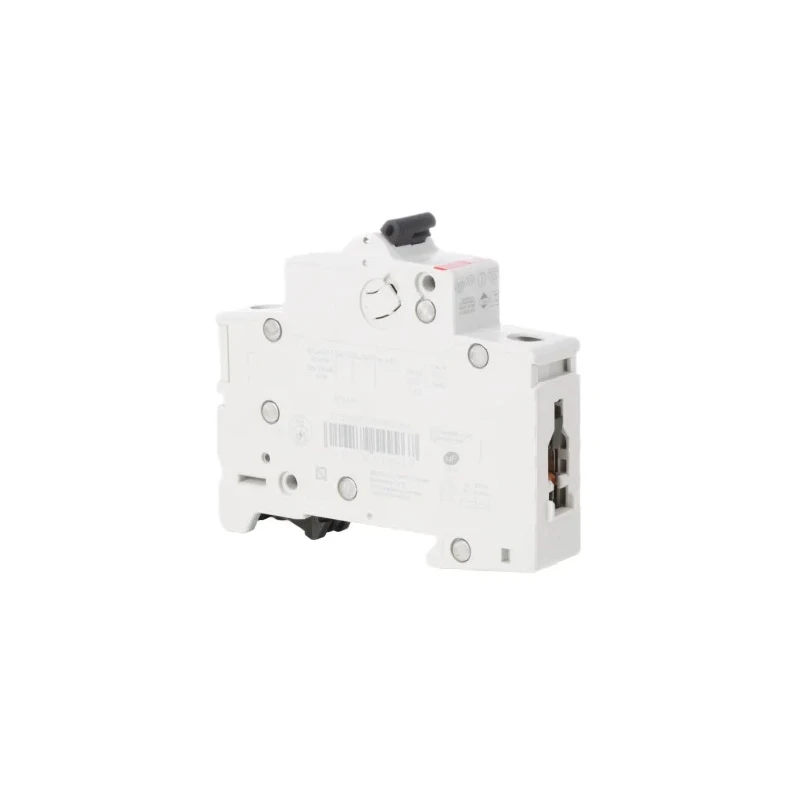

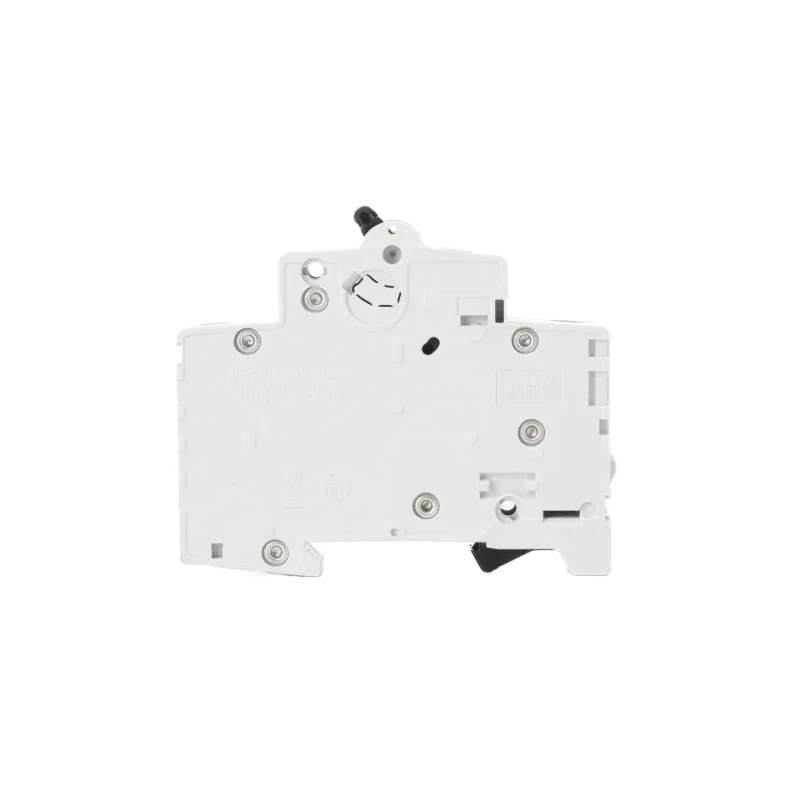

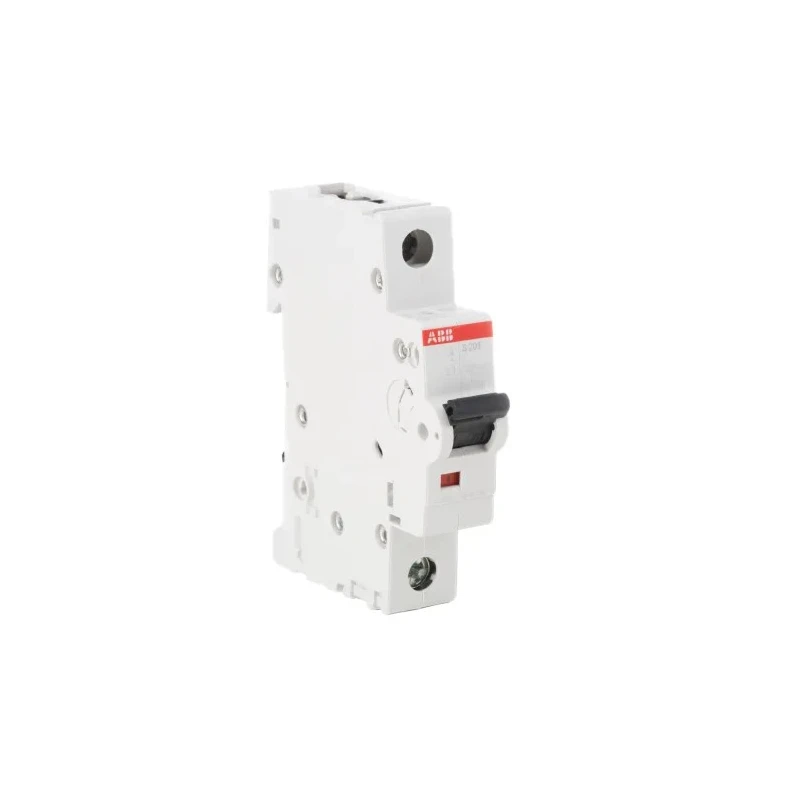

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 2A, Type C, 253V AC, 72V DC, 10kA 2CDS271001R0024 S201M-C2

ABB 2CDS271001R0024 S201M-C2 Miniature Circuit Breaker is a high-quality, reliable device designed for precise circuit protection in domestic, industrial, and commercial electrical applications. Rated at 2A with a type C tripping characteristic, it effectively limits dangerous currents and safeguards circuits connected to inductive loads such as motors, pumps, and fans. The breaker supports both AC and DC voltages with ratings of 253V AC and 72V DC respectively, and features a breaking capacity of 10kA, ensuring robust performance during fault conditions.

This miniature circuit breaker has a compact modular design from the System Pro M Compact range that allows easy integration with other safety devices. It operates effectively within a wide temperature range from -25°C to +55°C, making it suitable for demanding environments. The thermomagnetic and electromagnetic tripping mechanisms provide reliable protection against overloads and short circuits, contributing to long electrical and mechanical lifespans of up to 20,000 cycles.

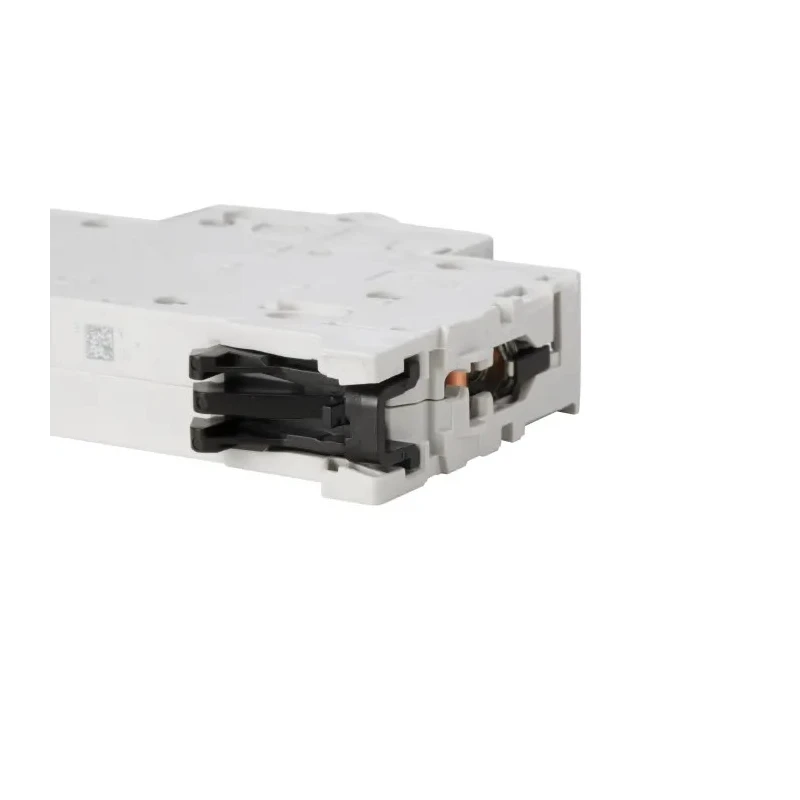

The device includes cage-type terminals with a fail-safe bi-directional cylinder-lift screw mechanism and wide terminals to simplify cable connection. Its dimensions are compact at 88 mm in height, 17.5 mm in width, and 76 mm in depth, enabling space-efficient installation on DIN rails. The protection ratings are IP40 and IP20, making it suitable for various installation environments while providing dust and contact protection.

Certified to IEC/EN 60947-2 and IEC/EN 60898-1 standards, this breaker also aligns with ABB's Better World initiative, featuring design for easy disassembly to support sustainability. Its clear red and green indicators facilitate quick and accurate status checking, enhancing operational safety and convenience.

Applications are diverse, including protection for domestic appliances, motor circuit protection, lighting installations, industrial automation systems, and HVAC controls. The robust construction and proven performance of the ABB S201M-C2 make it an optimal choice for electrical safety across multiple sectors.

Features thermomagnetic and electromagnetic tripping mechanisms for overload and short circuit protection. Type C tripping characteristic triggers at 5 to 10 times rated current for inductive load protection. Compact design with dimensions 88 mm height, 17.5 mm width, and 76 mm depth.

Equipped with red and green status indicators for easy operational monitoring. Suitable for domestic appliances, motor circuits, lighting, industrial automation, and HVAC systems. Cage terminal type with wide terminals for simplified wiring.

Meets IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and performance. Designed for installation on DIN rail with IP40 and IP20 ratings for environmental protection.
