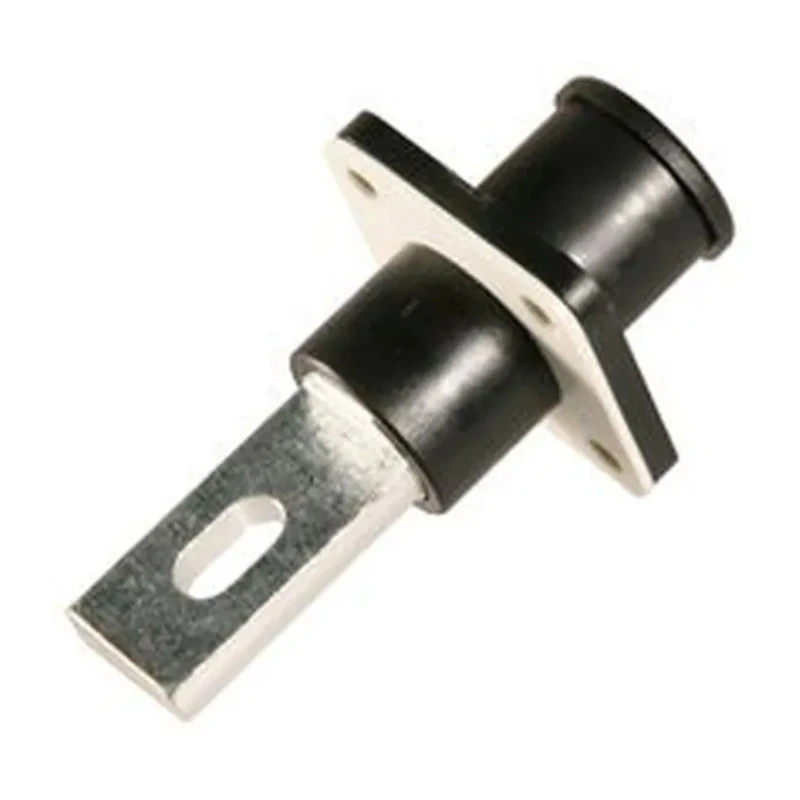

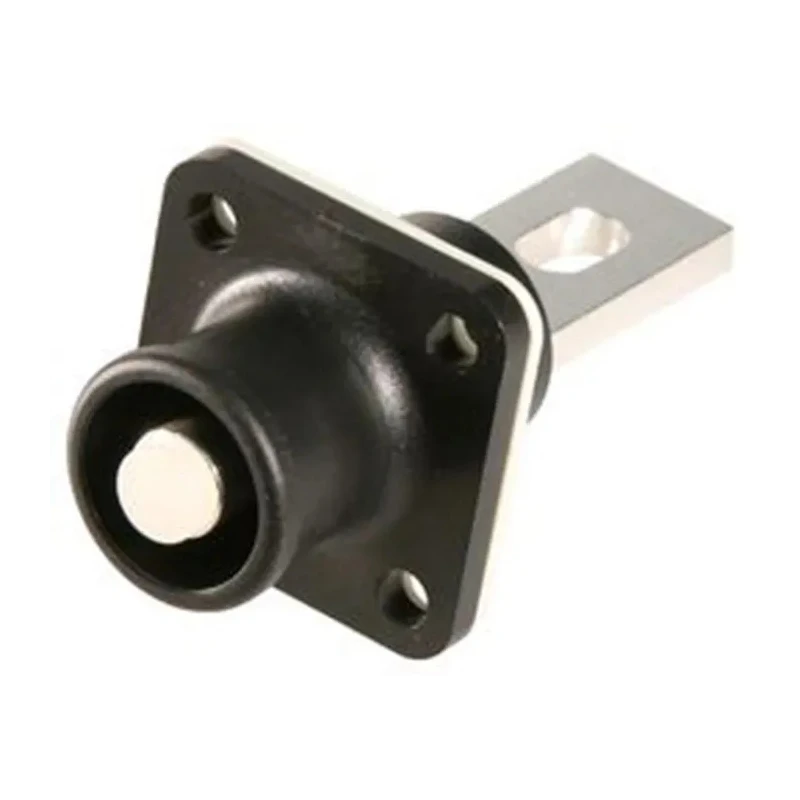

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 200A 1000V Panel Mount SLPRBBPSB / C10-730189-110
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Black |
| Orientation | Straight |
| Current | 200A |
| Height | 30mm |
| Model | SLPRBBPSB / C10-730189-110 |
| Depth | 62.2mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Busbar |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35, 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- The connector supports a high current rating of 200A and an operating voltage of 1000V.
- It features a RADSOK type compression lug with a spring-locking, touch-proof design.
- Constructed with a thermoplastic housing and copper alloy contacts for enhanced conductivity and durability.
- Rated IP67 for protection against dust and water ingress, suitable for harsh environments.
- Panel mount flange allows easy and reliable installation.
- Designed for use with 35 and 50 mm² wire sizes and features a single contact and row.
- Operating temperature range is from -40°C to 125°C, ensuring performance under extreme conditions.
- The connector is keyed to prevent mismating and supports quick mating with a straight orientation.
Product Description
Amphenol Industrial SLPRBBPSB / C10-730189-110 SURLOK PLUS RADSOK EV Connector Female is a high-performance 200A electrical connector designed for demanding industrial and automotive applications.
This connector features a robust thermoplastic housing with copper alloy contacts, providing superior conductivity and reliability. It supports wire sizes of 35mm² and 50mm² and is designed for busbar termination using a RADSOK compression lug technology, which guarantees a high tensile strength and a large conductive surface area.
The product boasts an IP67 ingress protection rating, ensuring full protection against dust and immersion in water, making it suitable for harsh industrial environments as well as outdoor applications.
Operating at up to 1000V, this connector maintains performance across a wide temperature range from -40°C to 125°C. The spring-locking mechanism and touch-proof design enhance safety and ease of use, while the keyed design prevents mismating during installation.
Its compact size with dimensions 30mm (height) x 30mm (width) x 62.2mm (depth) and panel mount flange allow reliable and secure mounting in control panels and equipment.
The Amphenol SURLOK PLUS series is widely used in electric vehicles (EV/HEV), rail mass transit, battery management systems, process control, medical devices, and heavy equipment sectors that demand reliable, safe, and efficient power connections.
High current capacity of 200A supports demanding electrical loads. Durable copper alloy contacts ensure excellent conductivity and corrosion resistance. Thermoplastic housing provides electrical insulation and mechanical robustness.
IP67 rating ensures protection against dust and water ingress for outdoor and industrial use. Spring locking and keyed design prevent accidental disconnection and mismating. UL 94-V0 flammability rating adds fire safety compliance.
Compatible with SurLok 1-Position Plug for system integration. Compact design with panel mount flange facilitates secure installation. Wide operating temperature range for harsh environments.
Choose this Amphenol Industrial EV Connector for reliable power connections in advanced electrical system applications. Explore the full range of EV connectors and industrial power Connectors on EnvMart to meet diverse technical requirements.
