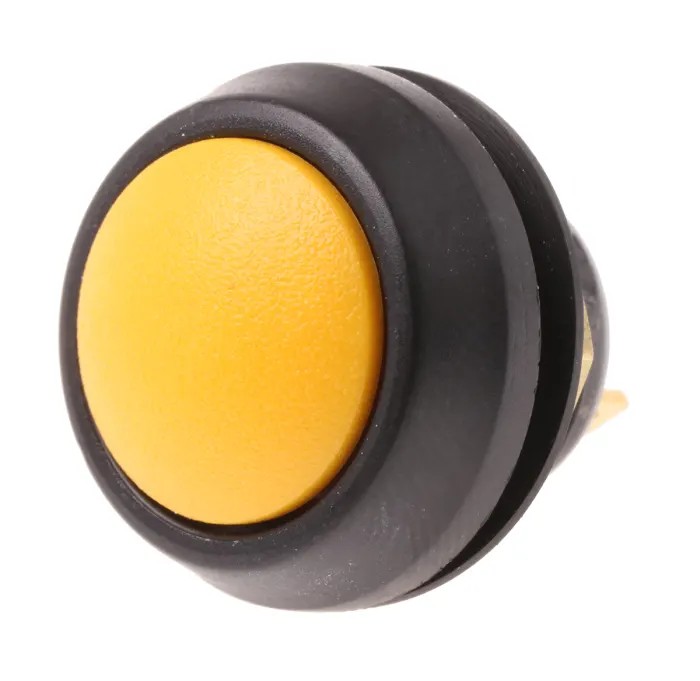

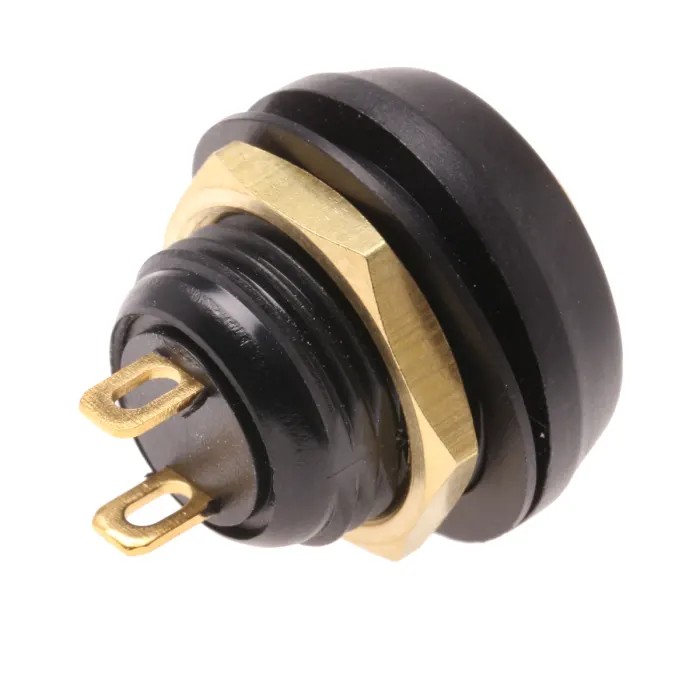

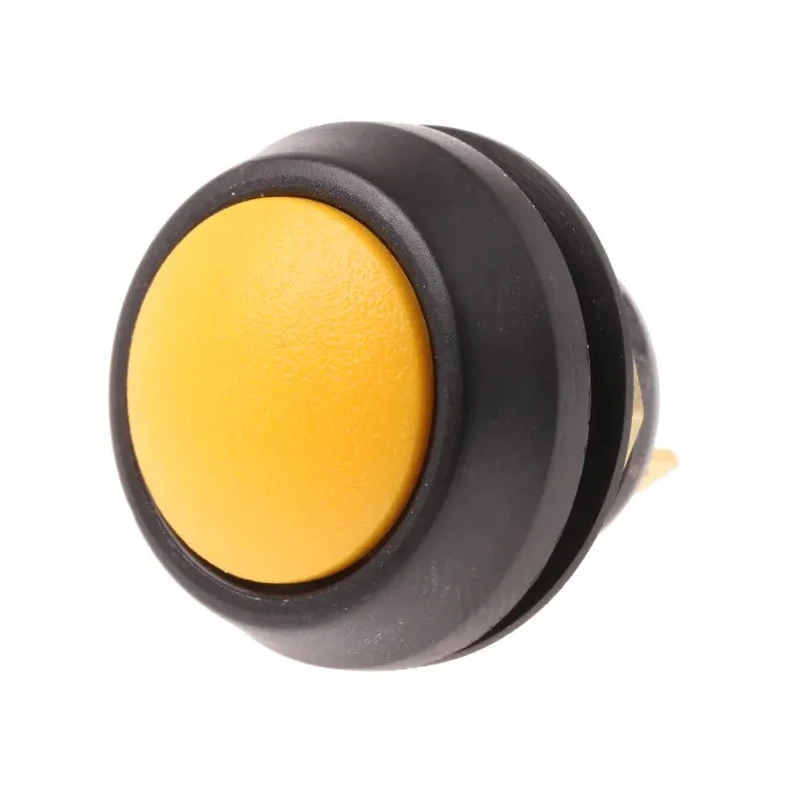

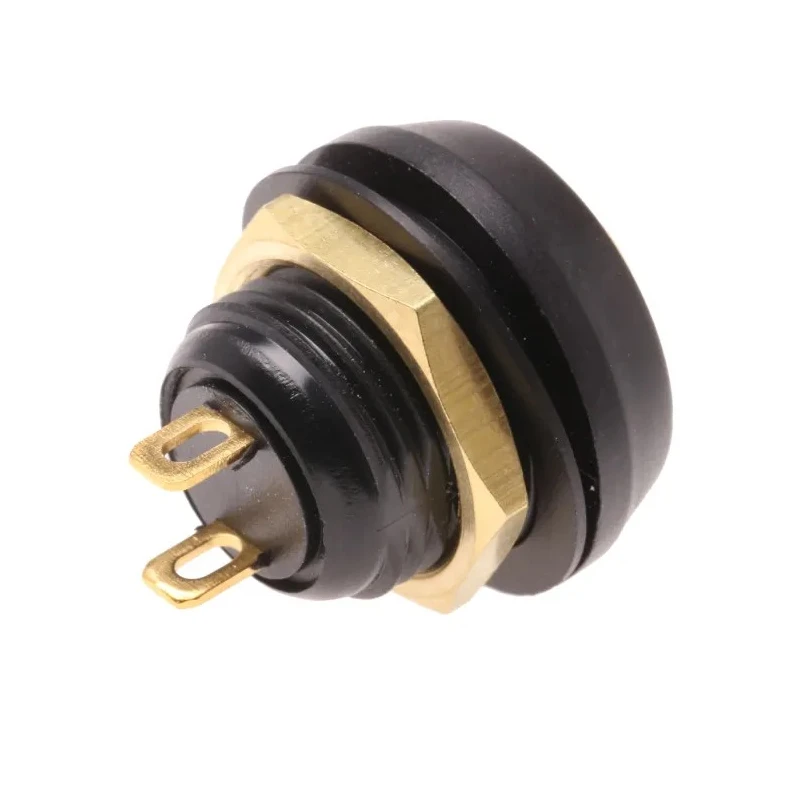

ITW Switches 59 Series Miniature Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST Clear LED IP67 50V dc 59-515
Specifications
| Country of Origin | Belize |
|---|---|
| Brand | ITW Switches |
| Model | 59-515 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 59 |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 50V dc |
| Actuator Style | Button |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 125V ac |
Key Features
- Miniature size with rugged panel sealing for environmental protection.
- Momentary switch operation with On-Off configuration.
- Panel cutout size of 13.6 mm for easy mounting.
- Gold contacts provide reliable switching performance.
- Wide operating temperature range from -40°C to 105°C.
- IP67 rated for dust protection and temporary immersion resistance.
- Contact voltage ratings of 50 V dc and 125 V ac.
- Switch contact current rating is 400 mA.
Product Description
ITW Switches 59-515 miniature push button switch is a rugged, momentary action switch designed for panel mounting with a 13.6 mm cutout size. The switch features an SPST contact configuration and a clear LED illuminated actuator. It is sealed to IP67 standards, providing complete dust protection and resistance against temporary immersion in water, making it ideal for environmentally demanding industrial and military applications.
Constructed with gold contacts and available with robust zinc alloy or molded PBT body materials, this switch offers superior durability and reliable performance across a wide temperature range from -40°C to 105°C. The 59 series offers non-spark materials and is impact resistant, enhancing safety for use in harsh environments.
Typical applications include communications equipment, data entry systems, military environments, instrumentation, mass transport controls, and other industrial keypads requiring sealed, momentary switching. The switch supports 50 V dc and 125 V ac contact voltages with a current rating of 400 mA, ensuring compatibility with a variety of control circuits.
Miniature size with rugged panel sealing for environmental protection. Momentary switch operation with On-Off configuration. Panel cutout size of 13.6 mm for convenient mounting. Gold contacts ensure reliable switch performance.
Operates over a wide temperature range from -40°C to 105°C. IP67 rated for protection from dust and moisture ingress. Contact voltage ratings: 50 V dc and 125 V ac. Switch contact current rated for 400 mA. Actuator color is yellow with clear LED illumination.
Ideal for harsh industrial, military, and transport environments.
This product is part of the ITW Switches 59 series known for its reliability and environmental robustness, making it suitable for demanding industrial, laboratory, and commercial applications. Explore more Push Button Switches in the Electronics & Electricals category on EnvMart for compatible control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The 59-515 switch features an SPST (Single Pole Single Throw) contact configuration, allowing for a simple on-off operation.
This model requires a panel cutout size of 13.6 mm for proper mounting.
The maximum operating temperature for the 59-515 switch is 105°C.
It provides momentary switch operation, which means it is activated only while the button is pressed.
The switch supports contact voltage ratings of 50 V dc and 125 V ac.
The switch has a contact current rating of 400 mA.
The 59-515 switch is rated IP67, providing complete dust protection and resistance to temporary immersion in water.
The switch is constructed with gold contacts and is available with robust zinc alloy or molded PBT body materials.
The minimum operating temperature for the 59-515 switch is -40°C.
This switch meets UL and CSA standards, ensuring compliance with safety regulations.
The actuator of this model is yellow and features clear LED illumination.
It is suitable for applications in communications equipment, data entry systems, military environments, instrumentation, and mass transport controls.
