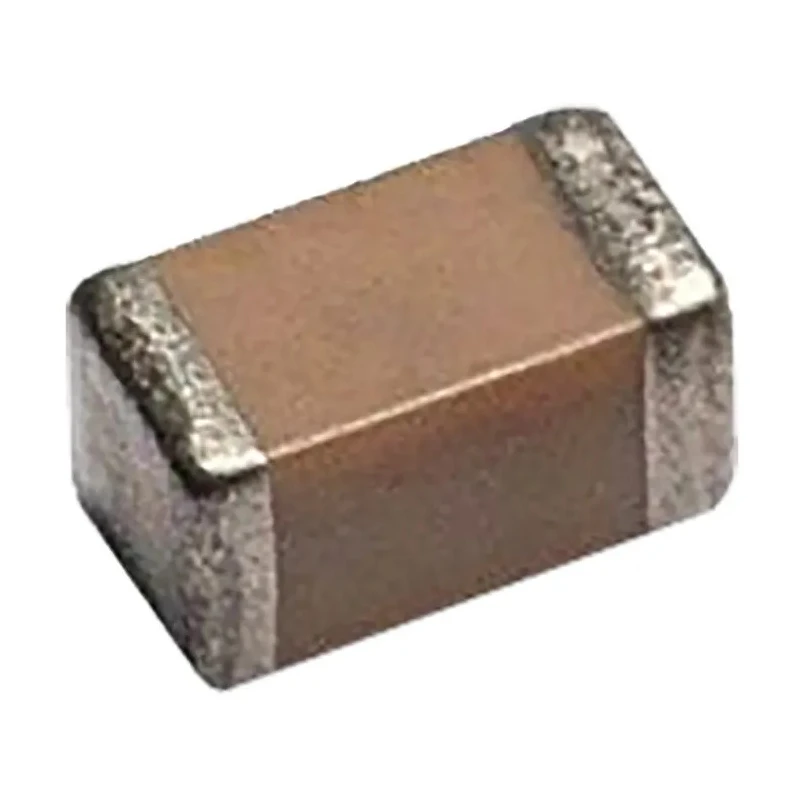

KYOCERA AVX 47 pF 16V dc ±5 % Tolerance Multilayer Ceramic Capacitor Surface Mount 0603 KGM Series 0201YA470JAT2A

Free Delivery in India | Lowest Global Shipping Charges

KYOCERA AVX 47 pF 16V dc ±5 % Tolerance Multilayer Ceramic Capacitor Surface Mount 0603 KGM Series 0201YA470JAT2A

Name: KYOCERA AVX 47 pF 16V dc ±5 % Tolerance Multilayer Ceramic Capacitor Surface Mount 0603 KGM Series 0201YA470JAT2A
Brand: KYOCERA AVX
SKU: 145313



Category MLCCs - Multilayer Ceramic Capacitors Brand KYOCERA AVX Condition New

Specifications

Country of Origin	India
Voltage	16V dc
Brand	KYOCERA AVX
Length	0.6mm
Model	0201YA470JAT2A
Packaging	Reel
Width	0.3mm
Mount Type	Surface
Series	KGM
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	47pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Suppression Class	EIA Class I

Key Features

Features a compact 0603 surface mount package.
Utilizes C0G dielectric for high stability and low capacitance drift.
Operates in temperature range from -55°C to 125°C.
Termination is surface mount type with nickel barrier and tin plating.
Ideal for mobile phones and tuner designs requiring temperature compensating ceramics.
Reel packaging ensures easy automated assembly.
Capacitance change over lifetime is less than ±0.1 %.
No aging characteristics for C0G dielectric ensure high performance reliability.

Product Description

KYOCERA AVX 0201YA470JAT2A is a high-reliability multilayer ceramic capacitor with a capacitance of 47 pF and a voltage rating of 16V dc. It features a ±5 % tolerance providing precision for electronic circuit applications including telecommunications and precision equipment.

The capacitor comes in a small 0603 surface mount package with dimensions 0.6 mm length and 0.3 mm width, making it well-suited for compact PCB layouts. It employs a C0G (also known as NP0) dielectric material, which is known for one of the most stable capacitor dielectrics available, offering minimal capacitance drift and negligible hysteresis for reliable performance.

This component supports a wide operating temperature range from -55°C to 125°C, complying with EIA Class I suppression standards, ensuring stable operation in harsh environments.

The KGM series termination utilizes nickel barrier terminations with plated tin, designed for surface mount technology assembly. Packaged on reels, it supports automated manufacturing processes.

This capacitor is commonly used in mobile phones, video tuner circuits, and other applications requiring temperature compensating ceramic capacitors, offering performance stability with lifetime capacitance change below ±0.1 % and negligible aging properties.

Compact 0603 surface mount format for space constrained applications. High stability C0G dielectric minimizes capacitance variation. Wide temperature range from -55°C to 125°C for industrial use cases. Reel packaging allows efficient PCB assembly lines.

Reliable terminations with nickel barrier and tin plating. Precision tolerance of ±5% for exact circuit requirements. Ideal for telecommunications and precision electronics. Lifetime stable with negligible hysteresis and aging.

This capacitor is suitable for industrial, telecommunications, and electronic manufacturing applications. Browse similar capacitors and components in the MLCCs - Multilayer Ceramic Capacitors category at EnvMart for advanced components and sourcing options.
