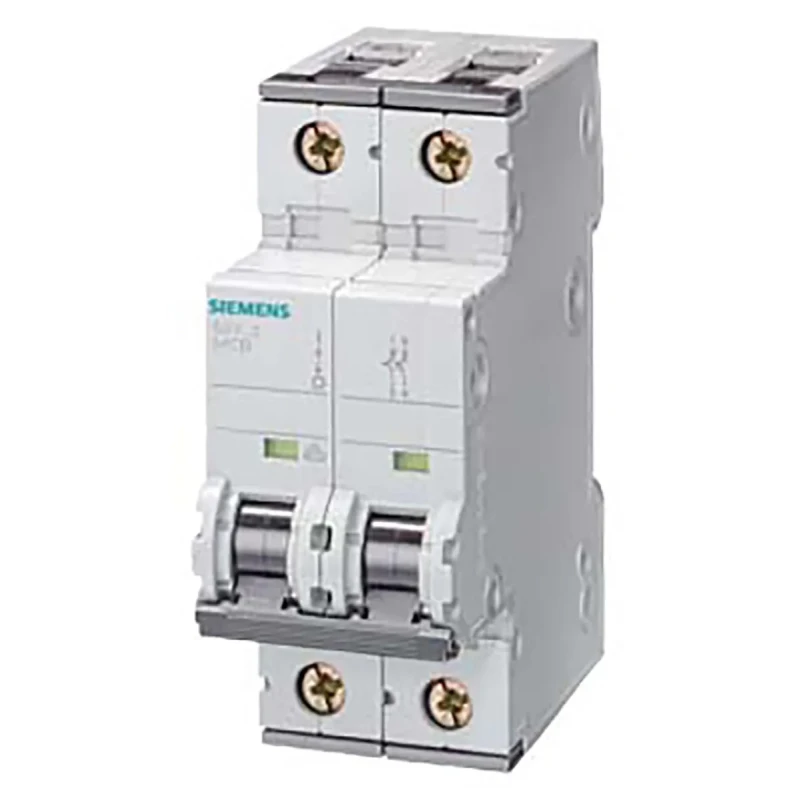

Siemens SENTRON Miniature Circuit Breaker 2-Pole 63A Type C 400V AC 72V DC 10 kA Breaking Capacity 5SY4263-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4263-7 |
| Depth | 90mm |
| IP Rating | IP20 |
| Width | 76mm |
| Mount Type | DIN Rail |
| Current Rating | 63A |
| Series | 5SY4 |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60947-2/UL1077, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
| Reset Actuator Type | Toggle Switch |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Supports a rated AC voltage of 400V and DC voltage of 72V.
- Equipped with a 10 kA breaking capacity ensuring high safety under fault conditions.
- Features toggle switch reset actuator for easy manual operation.
- Includes screw terminal type and IP20 protection rating for enhanced safety.
- Compatible with DIN rail mounting for convenient installation.
- Meets IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards.
- Supports Type C tripping characteristic suitable for general circuit protection.
- Manufactured in Germany with an extended product life for sustainable usage.
Product Description
Siemens 5SY4263-7 SENTRON Miniature Circuit Breaker is a high-quality electrical protection device designed for both industrial and residential applications. Rated with a current of 63A and a type C tripping characteristic, this 2-pole MCB supports AC voltage up to 400V and DC voltage up to 72V, making it versatile for various circuits.
Its 10 kA breaking capacity provides robust protection against short circuits and overloads. The breaker is equipped with screw terminals and a toggle switch reset actuator, facilitating easy wiring and operation. The DIN rail mounting ensures swift and convenient installation in control panels.
This MCB complies with international standards IEC/EN 60947-2, UL1077, and IEC/EN 60898-1, guaranteeing reliability and safety. Its compact dimensions of 90mm height, 76mm width, and 90mm depth allow space-efficient configuration.
Manufactured in Germany, the 5SY4263-7 model belongs to the Siemens SENTRON 5SY4 series, known for extended product life and sustainability. Its IP20 protection rating protects users against accidental contact and foreign objects.
The device supports easy combination with supplementary components such as control current switches, fault signal contacts, shunt releases, under voltage releases, and remote operating mechanisms. It is ideal for protecting electrical installations in functional buildings and residential sectors.
Supports rated AC voltage of 400V and DC voltage of 72V. Features a 10 kA breaking capacity for enhanced electrical safety. Toggle switch actuator for manual reset is included. DIN rail mounting ensures easy installation in electrical panels.
Meets IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 safety standards. Compact design with dimensions 90mm x 76mm x 90mm. IP20 rating safeguards against accidental contact. Type C tripping characteristic suitable for general applications.
Manufactured in Germany for superior quality and durability. Compatible with a range of supplementary components to extend functionalities.
This Siemens Miniature Circuit Breaker 5SY4263-7 is an ideal choice for ensuring circuit protection and operational safety in industrial, commercial, and residential electrical systems. Browse more by Siemens or explore other Miniature Circuit Breakers at EnvMart for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a rated AC voltage of 400V.
The breaking capacity is 10 kA, ensuring robust protection against short circuits and overloads.
This model features a Type C tripping characteristic, suitable for general circuit protection.
The dimensions are 90mm in height, 76mm in width, and 90mm in depth.
It is compatible with DIN rail mounting for convenient installation in electrical panels.
It supports a rated DC voltage of 72V.
It includes a toggle switch reset actuator for easy manual operation.
It meets IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards.
The IP rating is IP20, which protects against accidental contact and foreign objects.
The current rating is 63A.
It features screw terminals for easy wiring.
It is manufactured in Germany.
