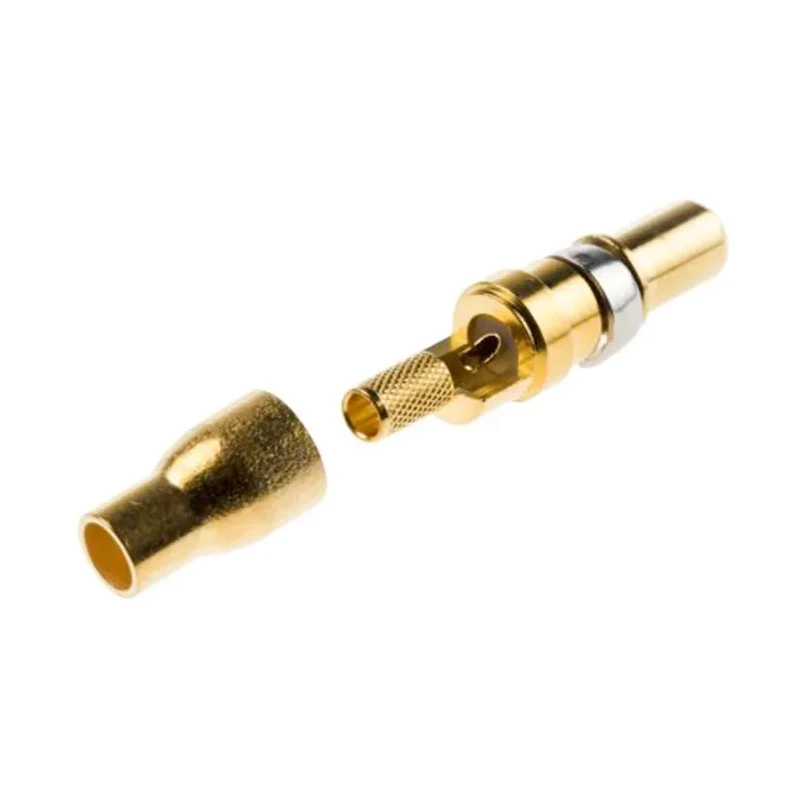

FCT from Molex 173112 Series Male Solder D-Sub Connector Coaxial Contact Gold over Nickel 10 AWG FMX003P102 / 1731120054

FCT from Molex FMX003P102 / 1731120054 male solder D-Sub connector coaxial contact is engineered for mixed signal and power applications requiring reliable and compact connections. This product is constructed with copper alloy contacts plated in gold over nickel to provide low contact resistance and high corrosion resistance, ensuring long-term durability in demanding environments.

Belonging to the 173112 series, this male connector supports a maximum current of 2A with contact resistance limited to 2.7mΩ, suitable for both signal and power transmission. The connector length is 22.5mm, making it ideal for space-constrained assemblies in electronic, industrial, military, and commercial electrical systems.

The connector termination type is solder, allowing secure and robust connections with wire sizes ranging from 12 AWG minimum to 10 AWG maximum. It is designed to snap into compatible D hybrid contact plug housings and can be removed with an ejection tool, facilitating maintenance and assembly.

This connector series supports coaxial contacts (accepting RG178B/U and RG174A/U cables) alongside power contacts with soldered terminals. Mixed contact connectors in this range are capable of combined signal and power connection, with a shell accommodating up to 17 mixed contacts.

Male D-Sub connector with solder termination for secure electrical connections. Copper alloy contacts with gold over nickel plating for enhanced reliability. Suitable for AWG wire sizes between 12 AWG and 10 AWG. Maximum current rating of 2 amperes with low contact resistance.

Connector length is 22.5 millimeters ensuring compact device integration. Designed for industrial, military, and commercial applications requiring mixed contact systems. Compatible with D hybrid contact plug housings and removable via ejection tool.

Accommodates combined signal and power connections within a single shell. Shell type 17W2 configuration capable of housing 17 mixed contacts. Ideal for coaxial and power applications with soldered terminals supporting RG178B/U and RG174A/U cables.

These connectors are widely used in electronic component assemblies, ensuring high quality and performance for critical systems. Browse more in the D-Sub Connectors category on EnvMart for compatible accessories and related components.
