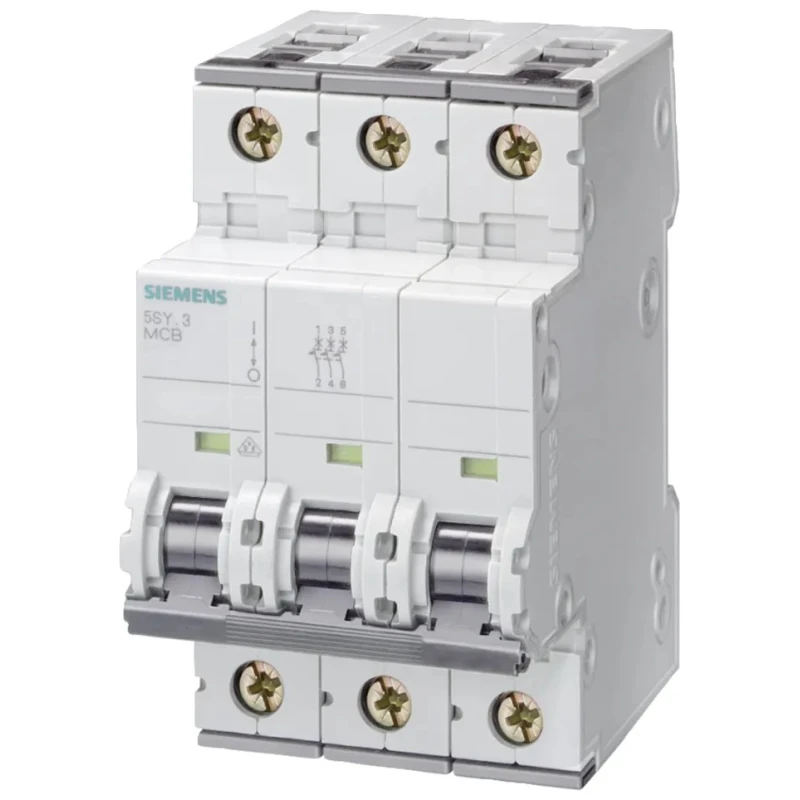

Siemens SENTRON Miniature Circuit Breaker, 3-Pole, 50A, Type C, 400V AC, 60V DC, 10 kA Breaking Capacity 5SY4350-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY4350-7 |
| Depth | 90mm |
| IP Rating | IP20 |
| Width | 76mm |
| Mount Type | DIN Rail |
| Current Rating | 50A |
| Series | 5SY4 |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947-2/UL1077, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
| Reset Actuator Type | Toggle Switch |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Equipped with toggle switch reset actuator for ease of operation.
- Designed for DIN rail mounting for quick and stable installation.
- Features 10 kA breaking capacity ensuring robust circuit protection.
- IP20 rated enclosure providing protection against solid objects.
- Complies with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards.
- Compact dimensions of 90mm height, 90mm depth, and 76mm width for space-efficient installation.
- Supports automatic cut-out with extended product life for enhanced reliability.
- Made in Germany ensuring high manufacturing standards.
Product Description
Siemens 5SY4350-7 Miniature Circuit Breaker is a premium quality 3-pole MCB designed for electrical protection in industrial, residential, and commercial applications. Rated for 50 Amperes with a type C tripping characteristic, it provides protection against overload and short circuits for circuits operating at 400V AC and up to 60V DC.
Featuring a toggle switch actuator, this device allows effortless manual resetting. The MCB is engineered for DIN rail mounting which facilitates quick installation and maintenance. With an IP20 ingress protection rating, it safeguards against accidental contact and solid particles.
The breaker offers a breaking capacity of 10 kiloamperes, ensuring the device can safely interrupt high fault currents. It adheres to international standards including IEC/EN 60947-2, UL1077, and IEC/EN 60898-1, guaranteeing compliance and safety.
Dimensions are compact and efficient at 90 mm height, 90 mm depth, and 76 mm width, making it suitable for installations with space constraints. This device is part of Siemens SENTRON 5SY4 series known for extended product life and reliability.
Miniature Circuit Breakers like the Siemens 5SY4350-7 are critical components for protecting electrical installations in industries, functional buildings, and residential sectors. They enable fast disconnection and help prevent damage to wiring and electrical components caused by overload or short circuit conditions.
Equipped with toggle switch reset actuator for ease of operation. Designed for DIN rail mounting for quick and stable installation. Features 10 kA breaking capacity ensuring robust circuit protection. IP20 rated enclosure providing protection against solid objects.
Complies with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards. Compact dimensions of 90mm height, 90mm depth, and 76mm width for space-efficient installation. Supports automatic cut-out with extended product life for enhanced reliability.
Made in Germany ensuring high manufacturing standards.
For reliable and certified electrical protection, Siemens SENTRON 5SY4 series MCBs are an optimal choice. Browse other Kirchhoff chain products on EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens 5SY4350-7 Miniature Circuit Breaker has a current rating of 50 Amperes.
This model features a breaking capacity of 10 kiloamperes (10 kA).
It is rated for 400V AC and 60V DC.
The circuit breaker is designed for DIN rail mounting, which allows for quick and stable installation.
The dimensions are 90 mm in height, 90 mm in depth, and 76 mm in width.
It has a Type C tripping characteristic, which trips between 5 to 10 times the rated current.
This circuit breaker complies with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards.
It is equipped with a toggle switch reset actuator for ease of operation.
The enclosure has an IP20 rating, providing protection against solid objects.
This model is part of the Siemens SENTRON 5SY4 series.
The Siemens 5SY4350-7 Miniature Circuit Breaker is made in Germany.
It uses screw type terminals for connections.
