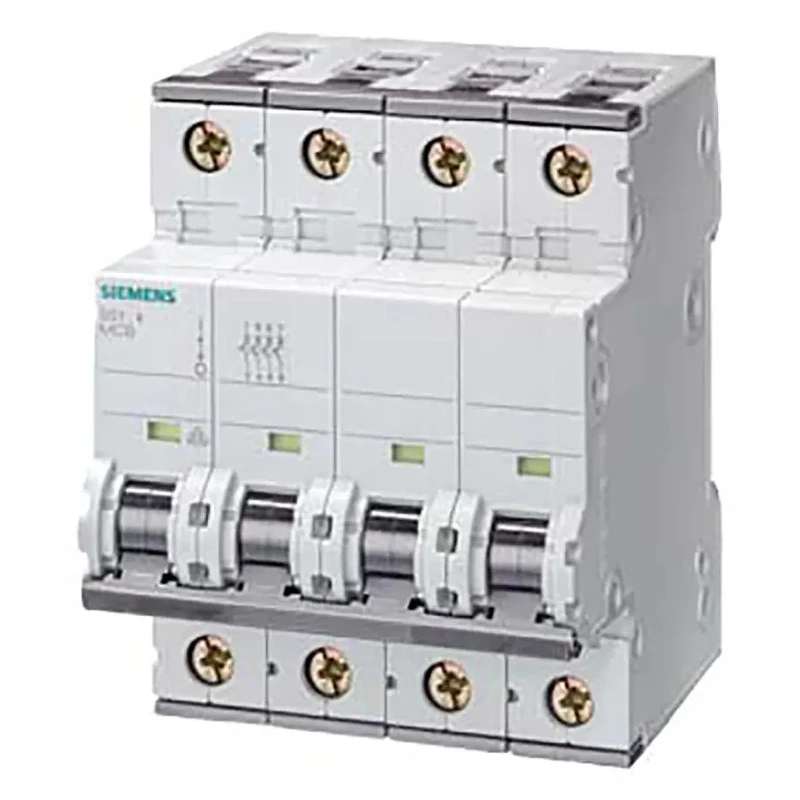

Siemens SENTRON Miniature Circuit Breaker, 4-Pole, 10A, Type B, 400V AC, 72V DC, 10 kA Breaking Capacity 5SY4410-6

Siemens 5SY4410-6 SENTRON Miniature Circuit Breaker is a high-quality 4-pole device designed to protect electrical circuits from overcurrent and short circuits in industrial, residential, and commercial applications. Rated for 10 amperes, it operates reliably at 400V AC and 72V DC voltages, with a breaking capacity of 10 kiloamperes, ensuring robust protection under fault conditions.

The device features Type B tripping characteristics, which trip at 3 to 5 times the rated current, making it ideal for protection of generators, persons, and long cable runs. Constructed for DIN rail mounting, it incorporates screw terminals for secure and fast connections. With compact dimensions of 90mm height, 76mm width, and 90mm depth, it allows easy integration within electrical panels.

Compliance with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards testifies to its reliability and safety. The toggle switch reset actuator facilitates straightforward manual reset after a trip event. This MCB is IP20 rated, protecting against ingress of solid objects exceeding 12.5 mm in size, suitable for typical electrical enclosures.

Manufactured in Germany, it reflects Siemens’s commitment to premium build quality, durability, and sustainability as a Better World Product, promising extended product life. Suitable for use in industrial setups, functional construction sectors, and residential electrical protection, it supports modular installation and can be combined with supplementary components like control current switches and fault signal contacts.

Rated 10A current with 4 poles for multi-phase circuit protection. Type B tripping curve for fast response to moderate inrush currents. 10 kA breaking capacity for reliable fault interruption. DIN rail mountable with screw terminals for secure installation.

Toggle switch actuator for user-friendly reset operation. Compact size with dimensions 90mm x 76mm x 90mm. IP20 protection class for safe operation in closed panels. Compliant to IEC/EN 60898-1, IEC/EN 60947-2, UL1077 safety standards.

Better World certified for extended product life and sustainability. Explore more Siemens Miniature Circuit Breakers and accessories on EnvMart for reliable electrical protection solutions.
