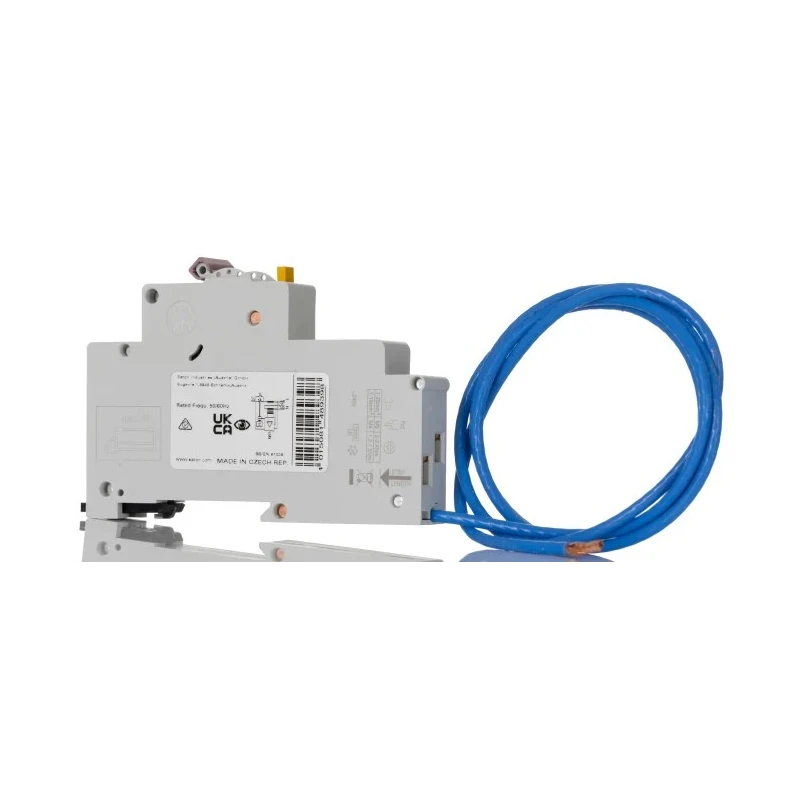

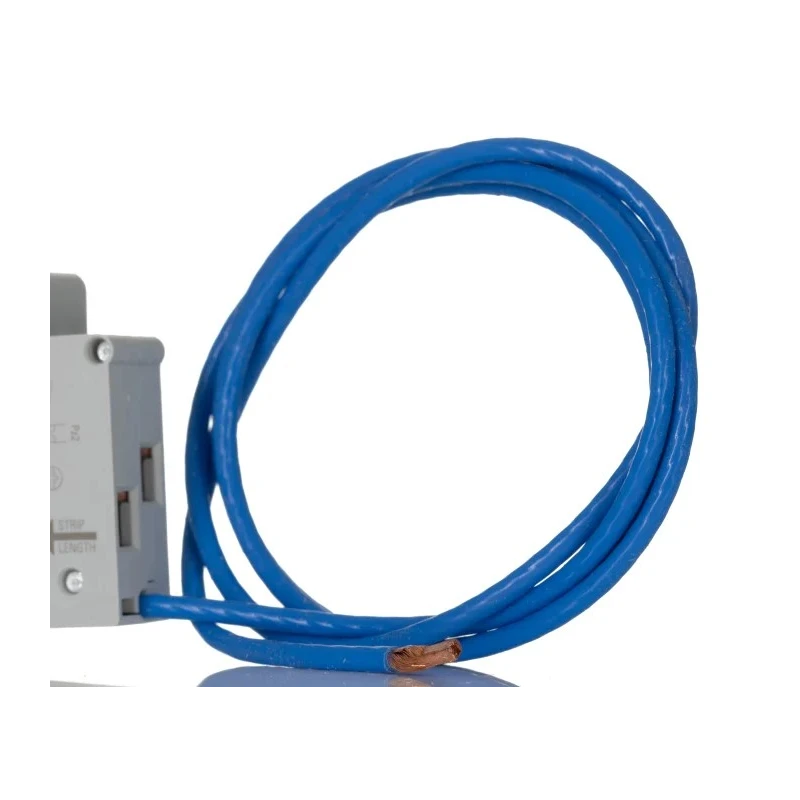

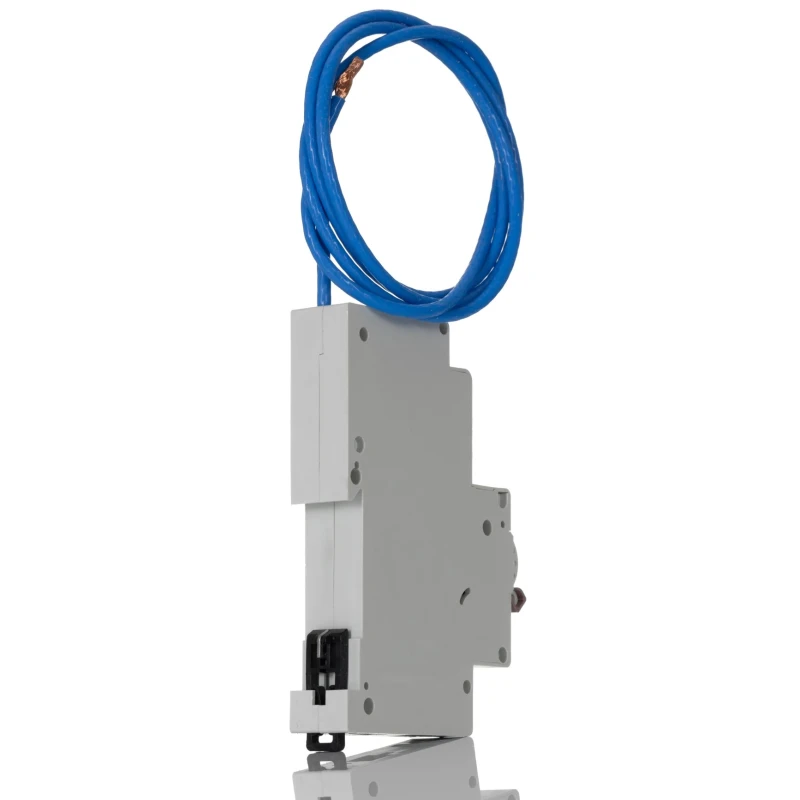

Wylex Residual Current Circuit Breaker with Overcurrent Protection 16A 1-Pole 30mA Trip EMBH116R30C ERBM-16/1/B/003-A
Specifications
| Country of Origin | India |
|---|---|
| Range | MEM Shield |
| Brand | Wylex |
| Model | EMBH116R30C ERBM-16/1/B/003-A |
| Depth | 216mm |
| Width | 17.7mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | MEMShield |
| Terminal type | Screw |
| Breaking Capacity | 15kA |
| Number of Poles | 1 |
| Standards/Approvals | CE |
| Rated AC Voltage | 240V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| Wylex RCBO, 16A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type BBrand | Wylex |
Key Features
- Designed for safe power distribution in residential and commercial applications.
- Features 1-pole design with Type B tripping characteristics for sensitive protection.
- Equipped with thermal magnetic tripping mechanism for reliable fault interruption.
- Accepts cables up to 25mm² with corrosion-resistant screw terminals.
- Includes a toggle switch reset actuator and a test button for operational verification.
- UV resistant and highly insulated to prevent fire hazards from internal faults.
- Complies with CE standards and suitable for DIN rail mounting.
Product Description
Eaton EMBH116R30C ERBM-16/1/B/003-A Residual Current Circuit Breaker with Overcurrent Protection is engineered to ensure safety and reliability in electrical power distribution systems across residential and commercial environments. Rated at 16 amperes with a 30mA trip sensitivity, this 1-pole RCBO effectively detects earth leakage currents and overcurrent conditions to prevent electrical shocks and equipment damage.
This breaker features a Type B tripping characteristic along with a thermal magnetic mechanism to deliver swift fault interruption and protect circuits against overloads and short circuits. The device is mounted on a DIN rail and includes a toggle switch reset actuator for convenient operation.
The RCBO accept cables up to 25mm² via zinc-plated screw terminals that resist corrosion, ensuring long-term durability. Its ultraviolet resistance deters degradation due to direct sunlight exposure, while high insulation standards prevent internal faults from triggering fire hazards.
Easy verification of functionality is facilitated by the integrated test button. The unit conforms to CE approval standards with a breaking capacity of 15kA, affirming suitability for robust electrical applications.
Applications include residential wiring safety, commercial power distribution protection, and integration within industrial control panels. This solution enables safety enhancements by instantly disconnecting power in fault conditions, mitigating risk of electric shock and fire hazards.
Designed for reliable overload and earth leakage protection. DIN rail mountable for flexible electrical panel installation. Screw terminals accommodate up to 25mm² cable sizes. Toggle switch actuator and test button ensure ease of use.
Complies with CE standards and provides 15kA breaking capacity. Robust thermal magnetic tripping mechanism. UV resistant housing suitable for varied environments. Explore more circuit protection devices like residual current devices and miniature Circuit Breakers at EnvMart for comprehensive electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This circuit breaker has a current rating of 16A.
The trip sensitivity of this model is 30mA.
It features a thermal magnetic tripping mechanism for reliable fault interruption.
The dimensions are 216mm in depth and 17.7mm in width.
The breaking capacity is rated at 15kA.
It is designed for DIN rail mounting.
It complies with CE standards.
It accepts cables up to 25mm² via corrosion-resistant screw terminals.
It is suitable for residential wiring safety, commercial power distribution protection, and integration within industrial control panels.
The rated AC voltage is 240V ac.
It includes a toggle switch reset actuator for convenient operation.
This circuit breaker has Type B tripping characteristics.
