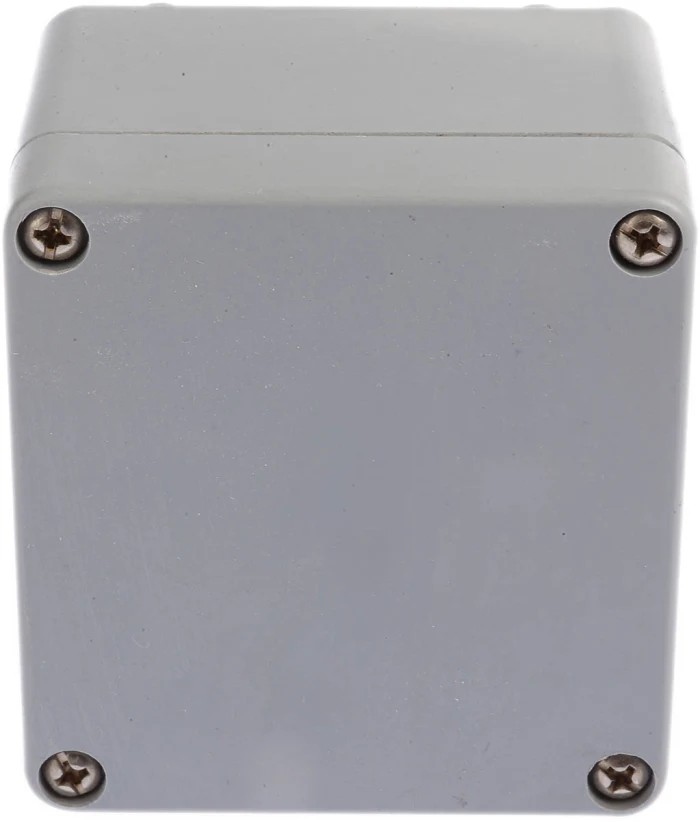

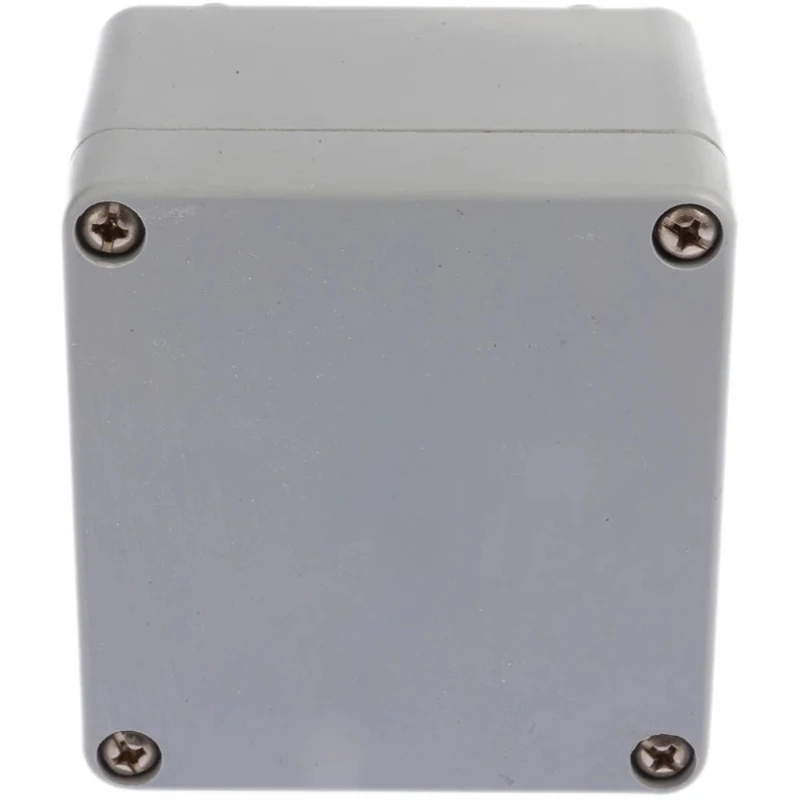

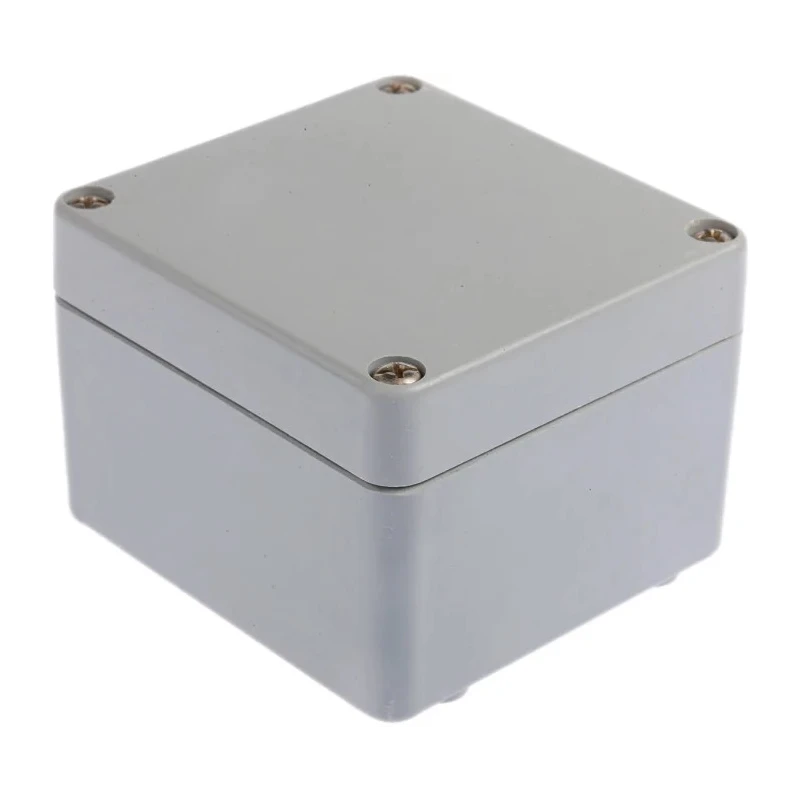

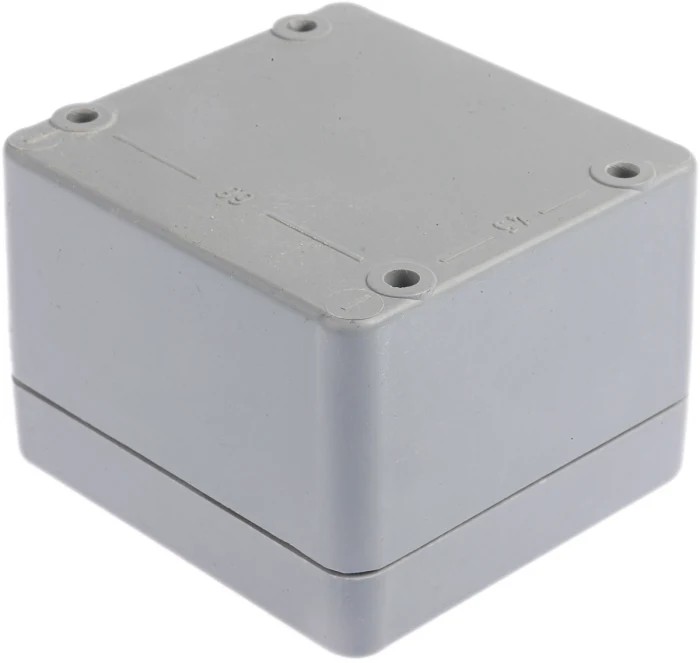

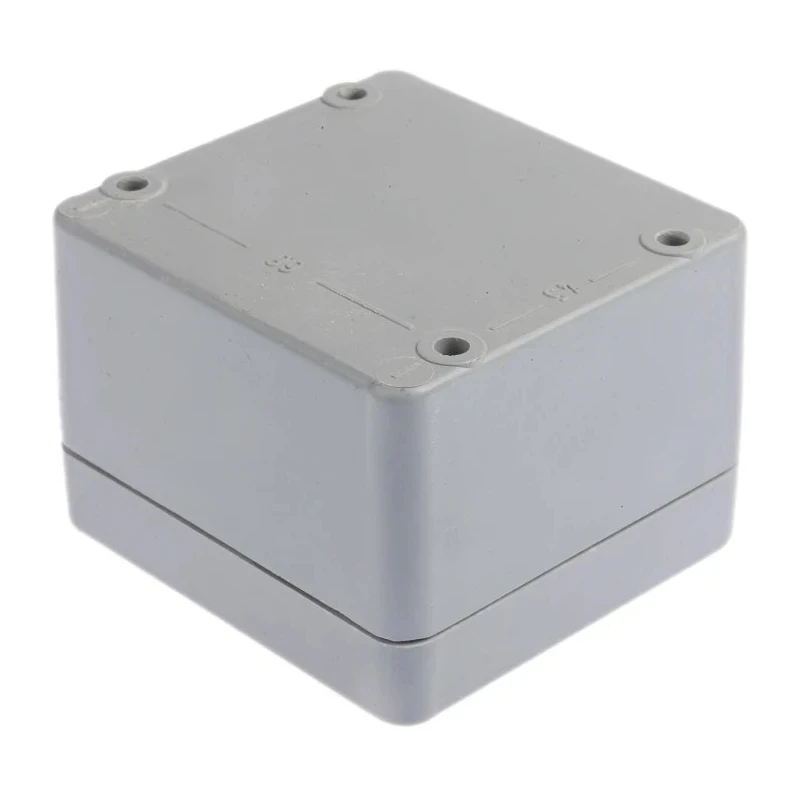

AB Controls & Technology Euronord II Series Grey Polyester IP66, IP67, IK08 Enclosure 75mm x 55mm x 80mm P 080806 ENCLOSURE

Fibox P 080806 ENCLOSURE is a robust general purpose electrical enclosure from the Euronord II series, constructed with high-quality polyester material. It is engineered specifically to house DIN Rail-mounted terminal blocks and various types of sensors commonly used in industrial, automation, and electrical applications.

The enclosure measures 75 mm in height, 55 mm in length, and 80 mm in width, offering compact yet sufficient space for electrical components. The outer surface of the enclosure is designed without gate marks, providing a smooth area that facilitates the application of labels, decals, or screen printing.

It features a grey lid and body in compliance with RAL 7001 color standards, with cover screws made from stainless steel that are captive for convenience and security, fully tightening in four revolutions. The gasket used is made from Ethylene Propylene Diene Monomer (EPDM), delivering reliable sealing to prevent ingress of dust and moisture.

This enclosure boasts an IP66 and IP67 rating which ensures excellent protection against solid objects and water ingress, making it suitable for harsh environments including outdoor installations. The IK08 rating provides sufficient mechanical impact resistance for demanding industrial environments.

The temperature tolerance ranges from -40°C to +80°C for continuous operation, and short-term exposures up to +120°C are supported, accommodating a broad range of operational conditions.

The enclosure meets industry standards including UL 508 and NEMA Type 1, 4, 4X, 12, and 13, assuring quality and reliability for electrical installations. Constructed from durable polyester with smooth surface finish. Designed for DIN Rail-mounted terminal blocks and sensors.

Compact dimensions: 75 x 55 x 80 mm (H x L x W). IP66 and IP67 protection for dust and waterproofing. IK08 rated for mechanical impact resistance. Grey lid and body with captive stainless steel cover screws. EPDM gasket ensures effective sealing.

Wide operating temperature range: -40°C to +80°C continuous. Meets UL 508 and NEMA Type 1,4,4X,12 and 13 standards.

This enclosure is ideal for electrical, industrial automation, and manufacturing applications that require a reliable, sealed housing for sensitive electrical components. It is built to withstand environmental challenges and provide secure protection for terminal blocks and sensors.
