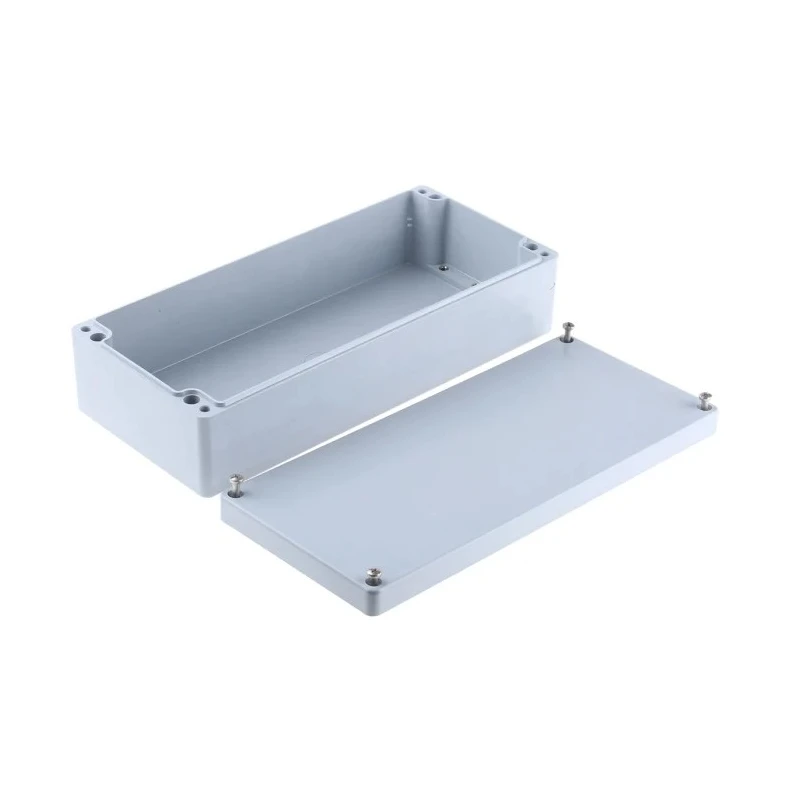

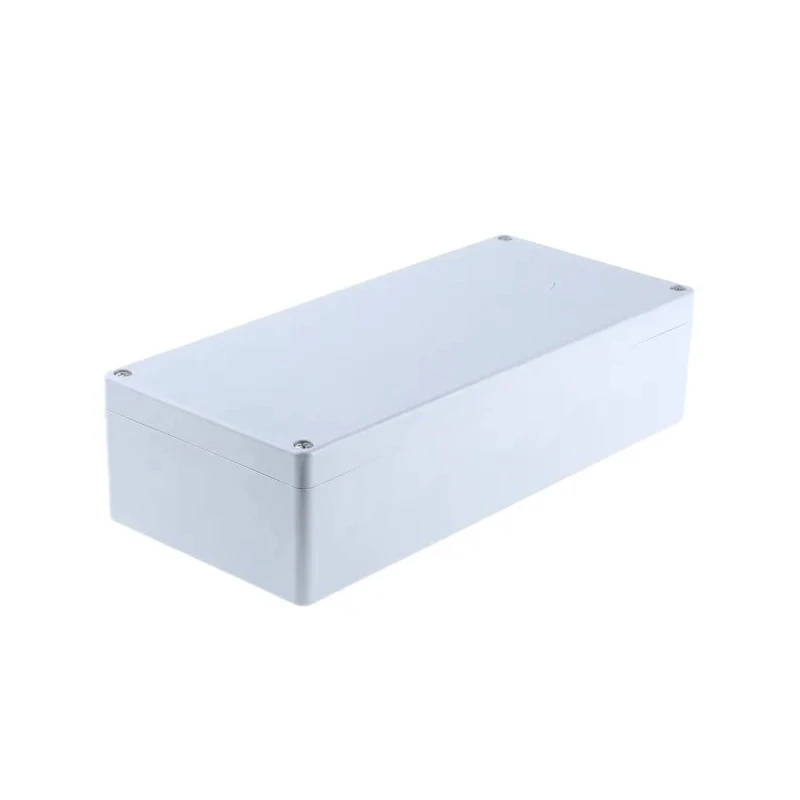

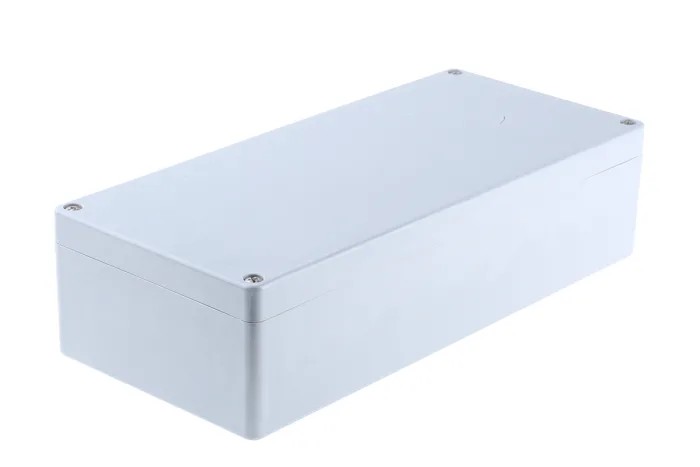

AB Controls & Technology Fibox Euronord II Series Grey Lid Polyester Enclosure IP66 IP54 IK08 90 mm x 360 P 163609 ENCLOSURE

AB Controls & Technology P 163609 ENCLOSURE Fibox Euronord II Polyester Enclosure with external dimensions 90 mm height, 360 mm length, and 160 mm width offers comprehensive protection in industrial environments. Constructed from high-quality polyester material, this enclosure is built to house DIN Rail-mounted terminal blocks and a variety of sensors with reliable mechanical and environmental protection.

The enclosure is rated with IP66 and IP54 ingress protection classifications, meaning it is highly resistant to dust ingress and protected against powerful water jets, making it suitable for outdoor and indoor industrial applications. The IK08 rating ensures robust resistance to mechanical impact, enhancing product durability.

Engineering details include a grey lid made from durable polyester, equipped with an ethylene propylene diene monomer (EPDM) gasket for effective sealing against dust and moisture, and stainless steel cover screws that remain captive with four full revolutions for secure closure. The outer surface is free of gate marks, providing a smooth finish ideal for decals, labels, or screen printing for identification or branding purposes.

Operating temperature ranges from -40°C to 80°C continuously, with short-term tolerance up to 120°C, ensuring functionality in a wide variety of environments. This enclosure complies with major industry standards including UL 508 and NEMA Type 1, 4, 4X, 12, and 13, validating its suitability for electrical protection and control within manufacturing, automation, and electrical installations.

This enclosure is manufactured in Finland, ensuring adherence to stringent quality and manufacturing processes. The product package includes the enclosure body, lid with EPDM gasket, and stainless steel screws. The Fibox Euronord II series delivers a reliable solution for electrical and sensor housing needs in industrial, commercial, and automation sectors.

Constructed from robust polyester material ensuring structural integrity. External dimensions of 90 mm height, 360 mm length, and 160 mm width for versatile installation. Ingress Protection rated IP66 and IP54 for superior resistance against dust and water ingress.

Equipped with IK08 impact rating ensuring strong mechanical protection. Features a grey lid with EPDM gasket and stainless steel cover screws for secure sealing. Temperature range spans from -40°C to +80°C continuous, with short-term tolerance up to 120°C.

Outer surface designed free of gate marks ideal for labels and screen printing. Designed to house DIN rail terminal blocks and various sensors securely. Product manufactured in Finland assuring high quality standards. Complies with standards such as UL 508 and NEMA Type 1, 4, 4X, 12, and 13.
