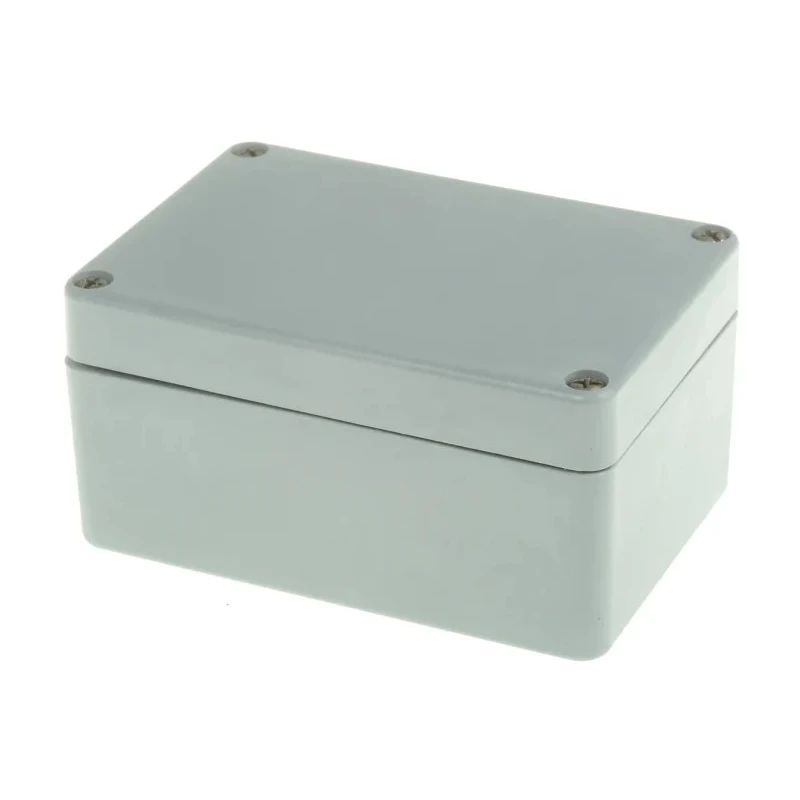

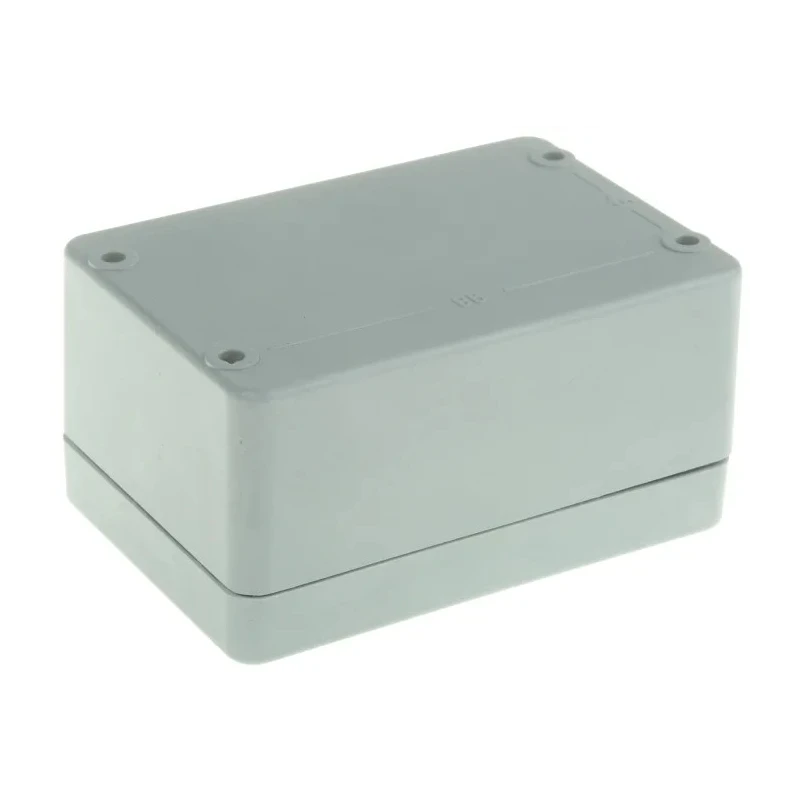

AB Controls & Technology Fibox Euronord II Series Grey Lid Polyester Enclosure IP65 IK08 55 mm x 110 mm x P 081106 ENCLOSURE

AB Controls & Technology P 081106 ENCLOSURE Fibox Euronord II Series Grey Lid Polyester Enclosure is engineered for industrial electrical and automation applications, providing reliable housing for DIN rail-mounted terminal blocks and various sensors. The enclosure's polyester body offers excellent mechanical strength and resistance to environmental elements.

The enclosure measures 55 mm in height, 110 mm in length, and 75 mm in width, suitable for compact installations. It features a grey coloured lid with an EPDM gasket ensuring a sealed enclosure that meets IP65 ingress protection standards, guarding against dust and water ingress. The IK08 rating grants impact resistance against external mechanical shocks.

Cover screws are stainless steel, captive, and fully tighten within four revolutions for ease of maintenance while ensuring secure closure. The outer surface is smooth and free from gate marks, enabling easy labelling, decals, or screen printing for identification and compliance purposes.

Designed to operate within a temperature range from -40°C to +80°C continuously, with short-term tolerance between -50°C to +120°C, this enclosure is well suited for demanding industrial, manufacturing, automation, and electrical applications requiring robust protection.

It is compliant with UL 508, NEMA Type 1, 4, 4X, 12 and 13 standards, assuring safety and durability in various environments. The enclosure is unshielded and does not come with hazardous area certification.

Package contents include the enclosure body, cover with EPDM gasket, and stainless steel cover screws. Mounting plates for the Euronord series are not sold separately. Constructed from durable polyester material providing robust protection.

External dimensions: 55 mm height x 110 mm length x 75 mm width for compact installations. IP65 ingress protection rating for dust and water resistance in industrial settings. Grey lid with an EPDM gasket and stainless steel cover screws for secure sealing.

IK08 impact resistance rating suitable for protection against mechanical shocks. Suitable for housing DIN rail-mounted terminal blocks and sensors. Wide operating temperature range from -40°C to +80°C continuous use. Compliant with UL 508 and multiple NEMA ratings ensuring industry-standard certification.

Unshielded design without hazardous area certification. Includes enclosure body, cover, gasket, and cover screws as package contents.

Ideal for electrical, automation, and general industrial applications requiring a rugged, reliable, and well-sealed enclosure solution. Explore more electrical enclosures and related accessories at EnvMart.
