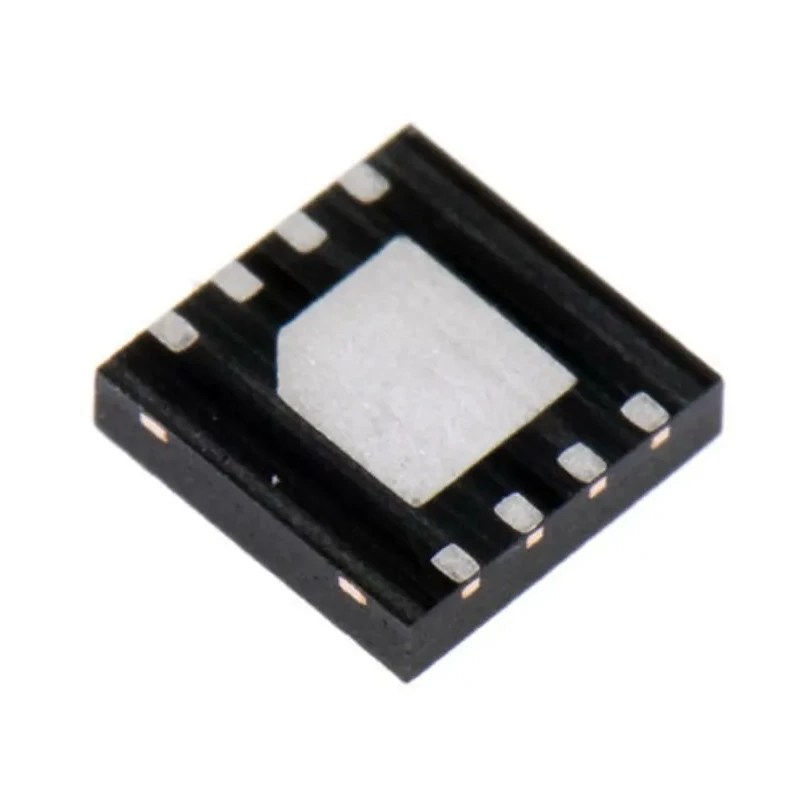

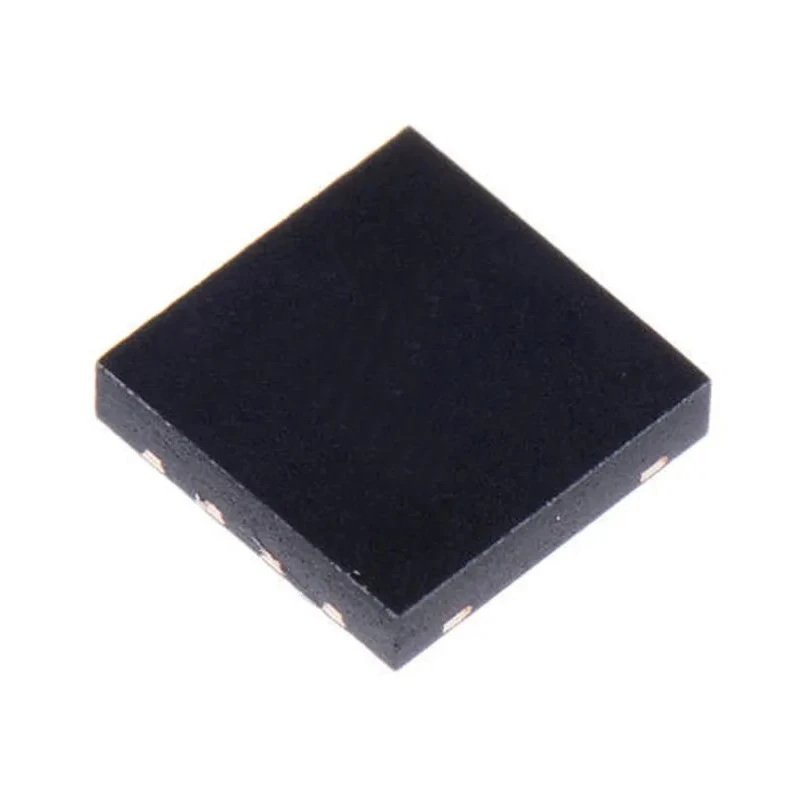

Infineon 256 kB SPI FRAM Memory 8-Pin DFN Surface Mount Package FM25V02A-DG

Free Delivery in India | Lowest Global Shipping Charges

Infineon 256 kB SPI FRAM Memory 8-Pin DFN Surface Mount Package FM25V02A-DG

Name: Infineon 256 kB SPI FRAM Memory 8-Pin DFN Surface Mount Package FM25V02A-DG
Brand: Infineon
SKU: 194847
Price: 9.71 USD
Availability: InStock



Category Memory Chips Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	750μm
Length	4.5mm
Model	FM25V02A-DG
Width	4mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	DFN
Minimum Operating Temperature	-40°C
Memory size	256kB
Interface Type	SPI
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2V
Maximum Clock Frequency	40MHz
Organisation	32K x 8 Bit
Number of Bits per Word	8
Maximum Random Access Time	16ns
Number of Words	32k

Key Features

Provides 256 kB non-volatile memory with 32K x 8 bit organization.
Supports SPI interface with an 8-bit data bus width for efficient communication.
Offers fast random access time of 16 nanoseconds enabling quick read operations.
Operates at a maximum clock frequency of 40 MHz suitable for high-speed data transfers.
Works with supply voltages ranging from 2 V to 3.6 V for low-voltage system compatibility.
Surface mount DFN package measures 4.5 mm length by 4 mm width with 750 µm height for compact board layouts.
Wide operating temperature range from -40°C to 85°C, suitable for automotive and industrial environments.
Qualified to automotive-standard AEC-Q100 ensuring reliability under demanding conditions.

Product Description

Infineon FM25V02A-DG is a 256 kB non-volatile FRAM memory device incorporating a 32K x 8 bit organization and SPI interface, housed within a compact 8-pin DFN surface mount package measuring 4.5 mm by 4 mm with a low profile of 750 µm height.

This device offers a maximum random access time of 16 nanoseconds and operates at clock frequencies up to 40 MHz, delivering fast read/write operations suitable for embedded systems requiring reliable and frequent data access and retention.

Designed to operate across a broad voltage range from 2 V to 3.6 V, the FM25V02A-DG supports low power designs in automotive, industrial, and portable metering applications.

Its wide operating temperature range from -40°C up to 85°C ensures dependable performance in harsh environments and demanding applications. The device meets automotive-grade qualification AEC-Q100, underscoring its suitability for use in vehicle electronics and industrial monitoring systems.

Typical uses include automotive sensor data logging, buffering, portable instrumentation, configuration storage in control modules, and other embedded systems necessitating fast, frequent, and non-volatile data writes.

256 kB FRAM memory size with 8-bit data bus width. SPI interface type compatible with controllers supporting serial communication. Compact surface-mount 8-pin DFN package for efficient PCB space utilization. Automotive qualified AEC-Q100 for high reliability in vehicle electronics.

Low-voltage operation from 2 V to 3.6 V supporting energy efficient designs. Fast 16 ns maximum random access time for rapid data retrieval. Operating temperature range suited to industrial and automotive environments. Applications in sensor data logging, metering, instrumentation, and configuration memory.
