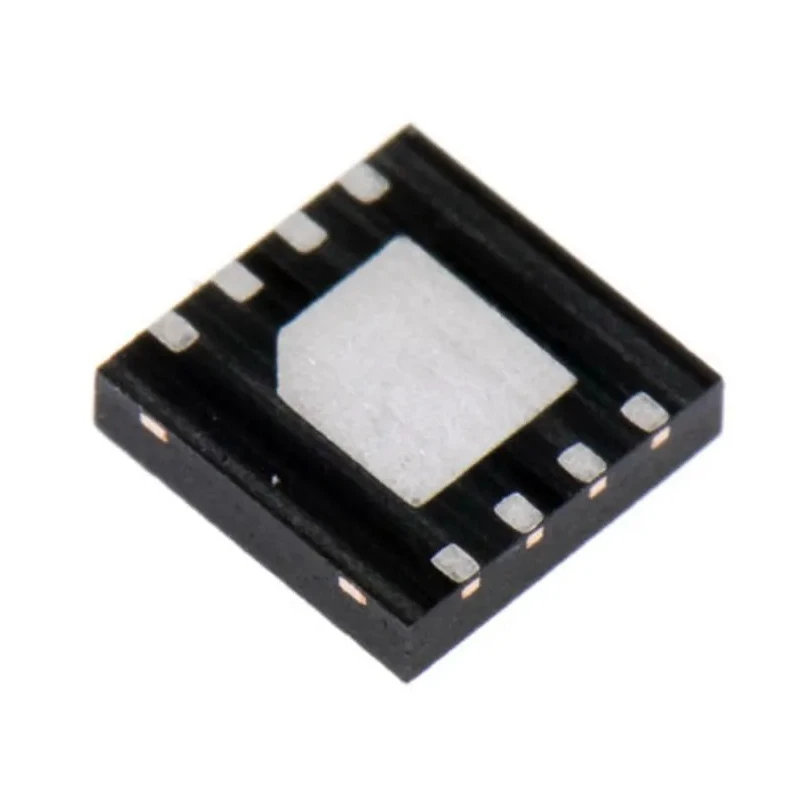

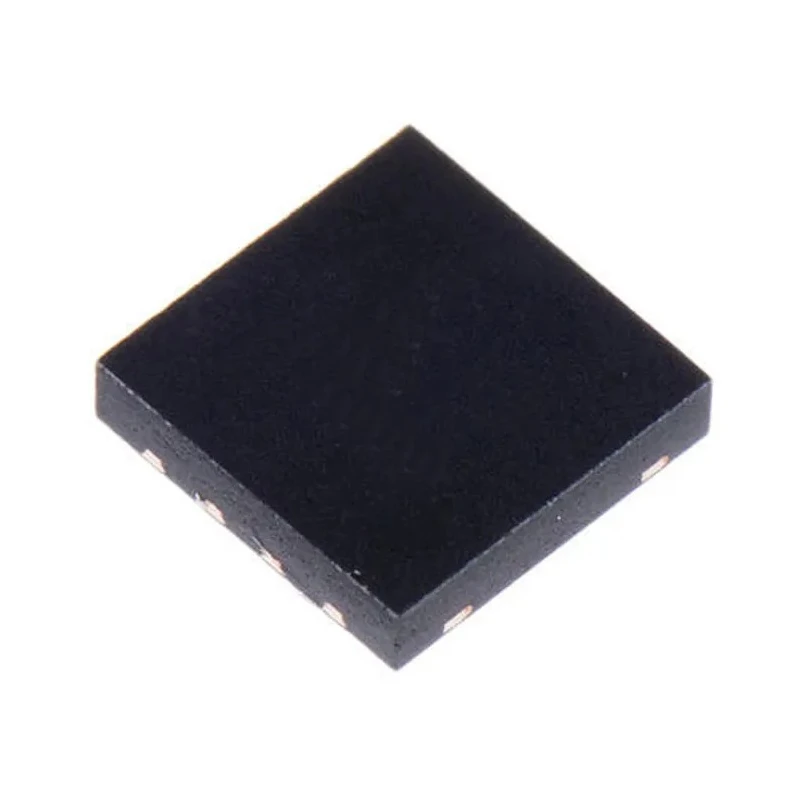

Infineon 2 MB SPI FRAM Memory 8-Pin DFN, 16ns Access Time, 40MHz Clock, AEC-Q100 FM25V20A-DG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 700μm |
| Length | 6mm |
| Model | FM25V20A-DG |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | DFN |
| Minimum Operating Temperature | -40°C |
| Memory size | 2MB |
| Interface Type | SPI |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Maximum Clock Frequency | 40MHz |
| Organisation | 256k x 8 Bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 16ns |
| Number of Words | 256K |
Key Features
- Offers 2 MB non-volatile storage with fast 16 ns maximum random access time.
- Supports SPI interface with up to 40 MHz maximum clock frequency.
- Designed to operate within -40°C to 85°C temperature range suitable for harsh environments.
- Operates at low voltages from 2 V to 3.6 V voltage supply ranges.
- Complies with AEC-Q100 automotive standard ensuring high reliability.
- Compact 8-pin DFN surface mount package with dimensions 6 mm x 5 mm and height 700 µm.
- 256K words of 8 bits each organisation allows byte-aligned addressing.
- Ideal for automotive data-logging, industrial control units, and sensor calibration memory storage.
Product Description
Infineon FM25V20A-DG is a high-reliability 2 MB SPI FRAM memory device packaged in a low-profile 8-pin DFN suitable for automotive and industrial embedded systems. This non-volatile memory provides fast data retrieval with a maximum random access time of 16 ns and supports high-speed SPI communication at up to 40 MHz clock frequency.
Operating over a wide temperature range from -40°C to 85°C and supply voltage between 2 V and 3.6 V, it meets demanding environmental and power requirements typical in automotive and industrial contexts.
The memory is organised as 256K words of 8 bits each, enabling simple, byte-oriented software addressing for efficient data storage and access. The device meets the AEC-Q100 automotive standard, ensuring qualification for use in vehicle electronics and other rigorous applications.
Physical packaging in an 8-pin DFN with dimensions 6 mm x 5 mm and height of 700 µm allows compact PCB layouts and surface mount assembly.
Common uses include automotive data-logging modules, industrial control units needing frequent non-volatile writes, microcontroller scratchpad memories, sensor calibration data storage, and power-loss-resilient transaction recording systems.
Offers 2 MB memory with SPI interface and 16 ns random access latency. Operates across automotive and industrial temperature ranges (-40°C to 85°C). Meets AEC-Q100 standard for automotive reliability. Compact 8-pin DFN surface mount package lowers PCB footprint.
Supports supply voltages between 2V and 3.6V for low power applications.
Choose Infineon's FM25V20A-DG for robust, high-performance non-volatile memory storage in demanding embedded system designs. Browse our extensive Semiconductor and Memory Chips catalog for alternative configurations and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Infineon FM25V20A-DG offers a memory size of 2 MB.
It has a maximum random access time of 16 ns.
This device supports a maximum clock frequency of 40 MHz.
The operating temperature range is from -40°C to 85°C.
It operates at supply voltages ranging from 2 V to 3.6 V.
This model comes in an 8-pin DFN package with dimensions of 6 mm x 5 mm and a height of 700 µm.
The memory is organized as 256K words of 8 bits each, allowing for byte-aligned addressing.
It complies with the AEC-Q100 automotive standard, ensuring high reliability for automotive applications.
It is suitable for automotive data-logging, industrial control units, and sensor calibration memory storage.
The mount type for this model is surface mount.
There are 8 bits per word in this memory device.
The country of origin for this product is India.
