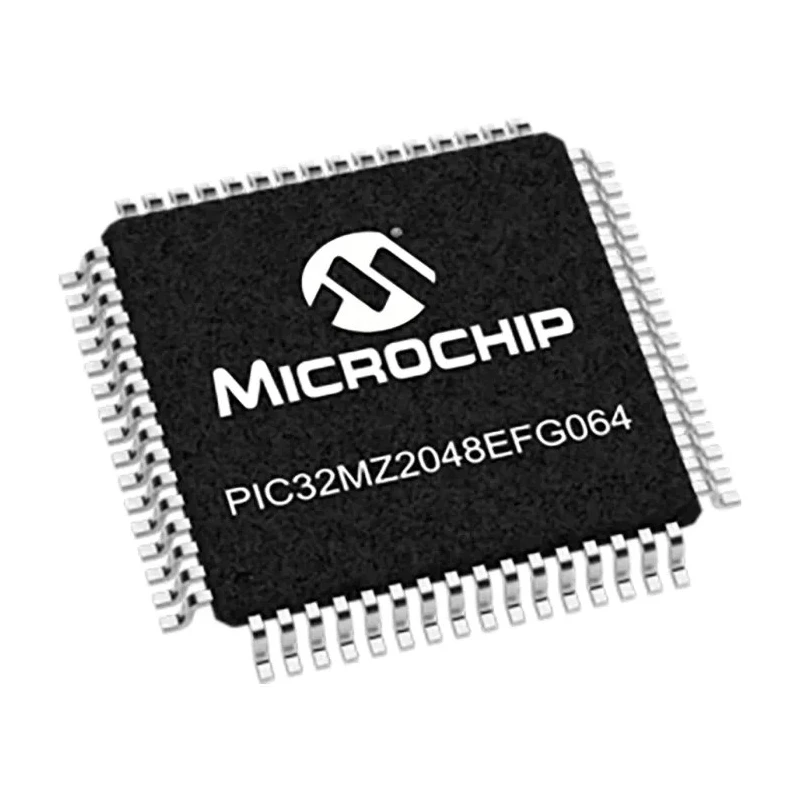

Microchip 32 bit PIC32MZ Microcontroller 252 MHz 2.048MB FLASH 64-Pin TQFP PIC32MZ2048EFG064-I/PT

Microchip PIC32MZ2048EFG064-I/PT is a high-performance 32-bit PIC microcontroller operating at 252 MHz with 2.048MB of FLASH memory housed in a 64-pin TQFP surface mount package. Designed around the advanced MIPS32 M-Class core, it incorporates a dedicated hardware Floating-Point Unit (FPU) to handle complex single and double-precision mathematical computations efficiently, making it suited for demanding embedded applications.

The microcontroller features 512kB of RAM and supports 46 programmable input/output pins enabling flexible hardware interfacing. It integrates diverse peripheral modules including USB 2.0 High-Speed On-The-Go (OTG) controller, two CAN modules, six UARTs, multiple SPI and I2C modules, and parallel master port facilitating comprehensive connectivity options. Additionally, its advanced peripherals cover high-speed ADCs, graphics, and audio interfaces compatible with I2S, LJ, RJ, and controlled via SPI and I2C protocols.

Operating voltage ranges from 2.1V to a maximum of 3.6V, supporting low-power designs with several power management modes, fail-safe clock monitoring, and watchdog timers. The device maintains reliability over a wide temperature range of -40°C to +85°C and meets AEC-Q100 automotive standard for enhanced robustness.

This microcontroller is ideal for industrial automation, high-impact graphical user interfaces, networking applications involving Ethernet/USB/CAN, multitasking embedded control, and high-speed audio processing. The MPLAB Harmony integrated software framework offers a comprehensive development environment simplifying firmware and application creation for this family.

Package dimensions are compact with a length and width of 10mm each and a height of 1.05mm, ensuring suitability for space-constrained PCB designs. Features a powerful MIPS32 M-Class 32-bit core architecture. Built-in Floating-Point Unit for efficient single and double precision math.

512kB RAM and 46 programmable I/O pins for versatile applications. Supports multiple communication interfaces including USB 2.0 OTG, CAN, UART, SPI, and I2C. Operates from 2.1V to 3.6V supply voltage facilitating low power designs.

Designed with extensive peripheral set including graphics and audio interfaces. Robust operating temperature range from -40°C to +85°C. Package measures 10mm x 10mm x 1.05mm with surface mount TQFP type. Ideal for multitasking embedded control, high-speed industrial, and automotive applications.
