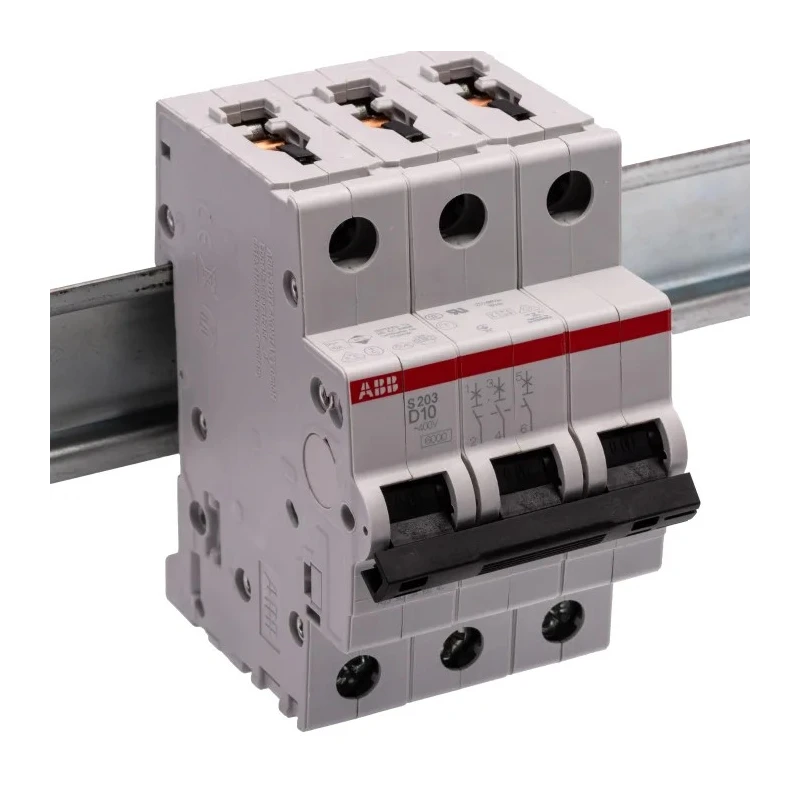

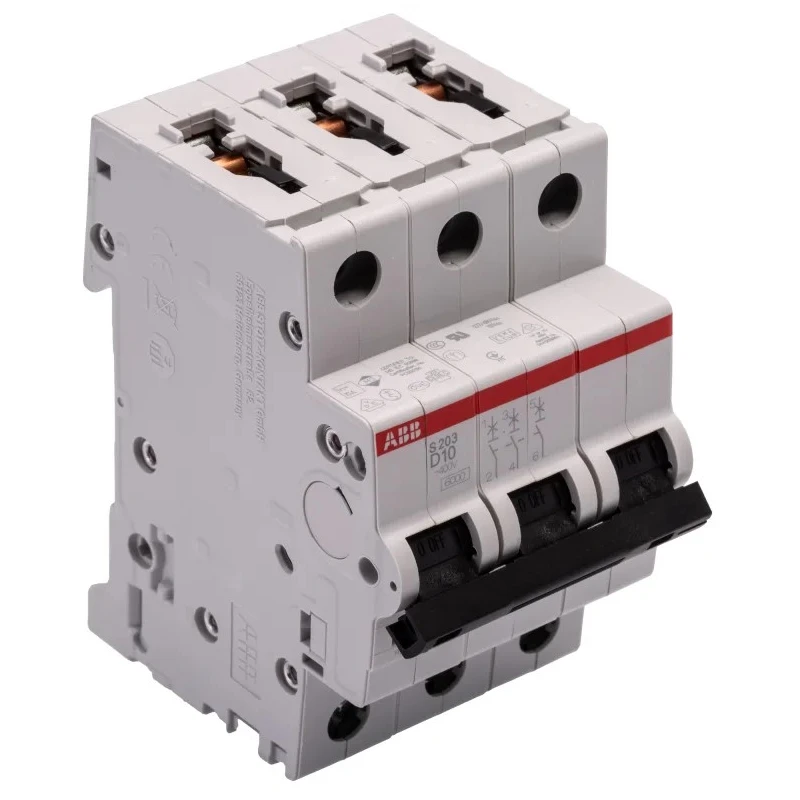

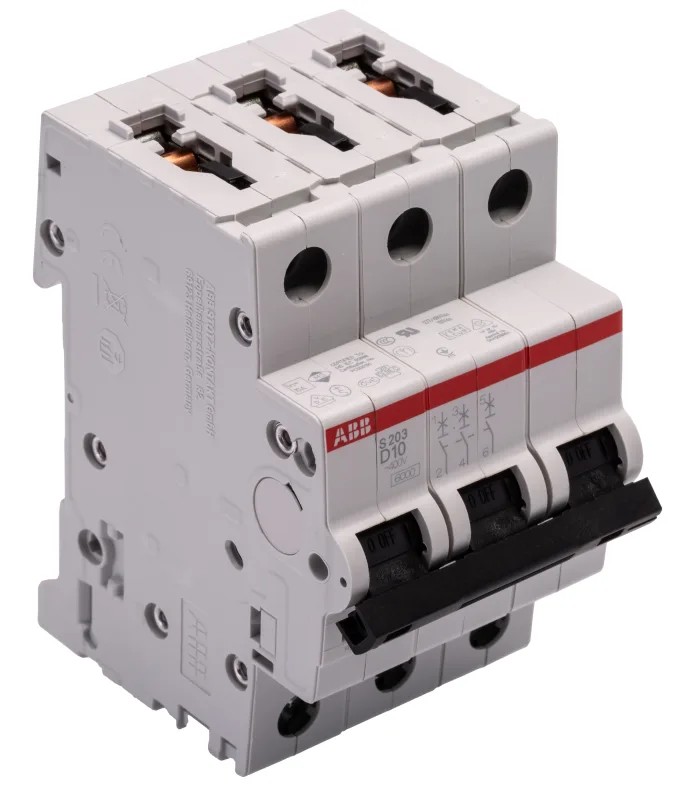

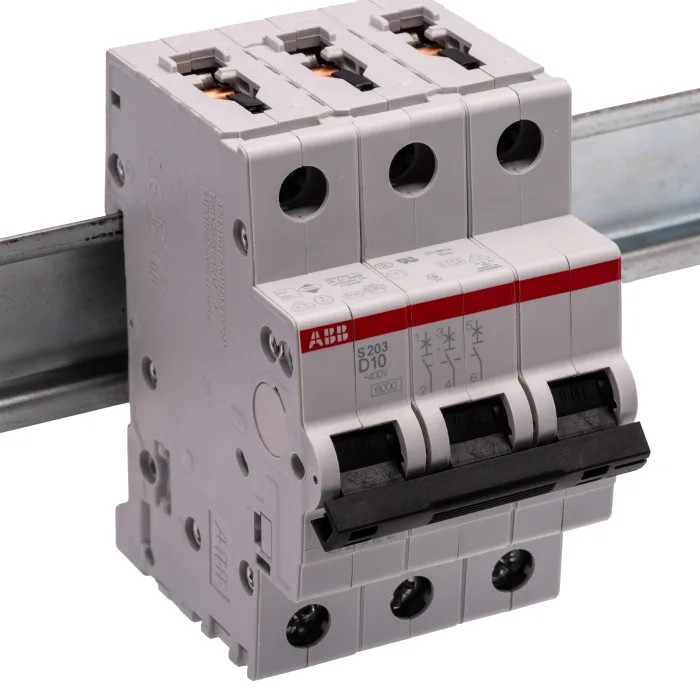

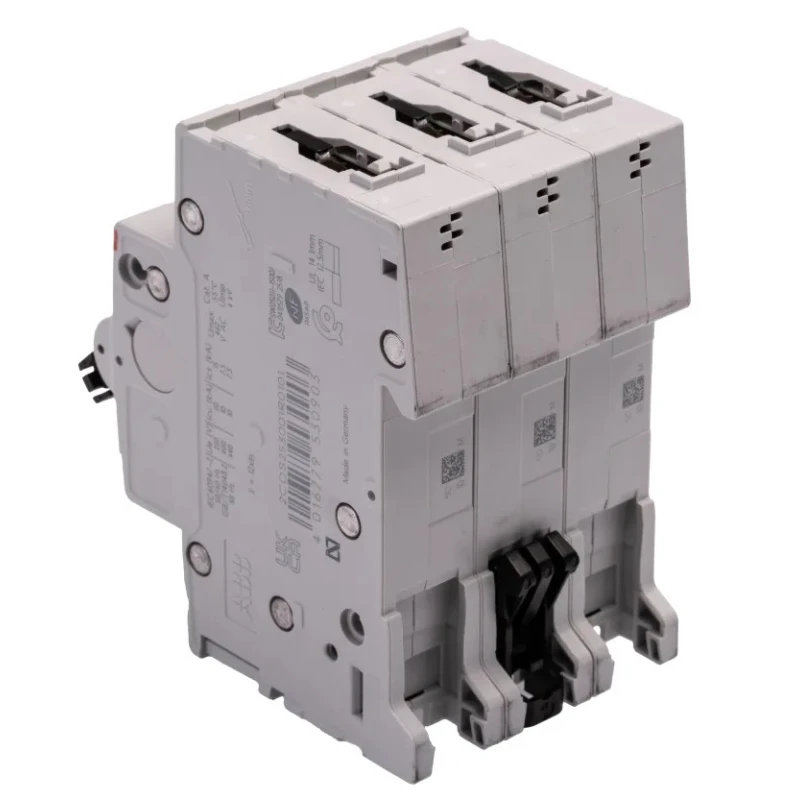

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 10A, Type D, 440V AC, 12V DC, 6kA 2CDS253001R0101 S203-D10
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253001R0101 S203-D10 |
| Depth | 88mm |
| IP Rating | IP20, IP40 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
Key Features
- This MCB supports 3 poles with a 10A current rating and Type D tripping characteristics.
- Rated for 440V AC and 12V DC with a breaking capacity of 6kA for secure fault interruption.
- Equipped with a toggle switch reset actuator and designed for DIN rail mounting.
- Features IP20 and IP40 ratings for protection against finger contact and larger debris.
- Employs thermal and electromechanical tripping for overload and short circuit protection.
- Shock-resistant design prevents accidental tripping during vibrations or jolts.
- Compact size (88mm x 52.5mm x 88mm) ensures efficient panel space utilization.
- Electrical durability rated for 20,000 AC cycles enhances long-term reliability.
Product Description
ABB 2CDS253001R0101 S203-D10 System Pro M Compact S200 Miniature Circuit Breaker provides robust electrical protection for industrial and commercial applications. This 3-pole breaker is rated at 10A with Type D tripping characteristics, making it ideal for equipment with high inrush currents such as motors and transformers.
The breaker operates reliably at 440V AC and 12V DC and offers a breaking capacity of 6kA to safely interrupt fault currents, preventing damage to electrical systems. Its thermal and electromechanical tripping mechanisms deliver both overload and short circuit protection, enhancing system safety.
Engineered for quick DIN rail mounting, the compact design (88mm height, 52.5mm width, 88mm depth) fits well in control panels and distribution boards. The IP20/IP40 ratings provide protection from finger contact and larger particles, maintaining user safety and device longevity.
With an electrical durability of 20,000 AC cycles, it is suited for demanding industrial environments and automated control systems. The toggle switch reset actuator offers intuitive manual control, and its shock resistance upholds performance in vibration-prone areas.
Standards compliance with IEC/EN 60898-1 and IEC/EN 60947-2 ensures high safety and quality benchmarks. Suitable uses include electrical distribution boxes, automated control systems, and medical imaging devices, providing reliable performance in critical setups.
This Miniature Circuit Breaker has 3 poles with 10A current rating and Type D tripping characteristics. Rated for 440V AC and 12V DC voltages with a 6kA breaking capacity to handle electrical faults safely. Features a toggle switch actuator and DIN rail mounting for convenient installation and operation.
Protected against finger contact and particulate ingress with IP20 and IP40 ratings. Thermal and electromechanical tripping mechanisms ensure comprehensive overload and short circuit protection. Designed shock-resistant to avoid nuisance trips in vibration-heavy environments.
Compact dimensions and long electrical durability of 20,000 AC cycles support robust use. Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 for assured safety standards. Suitable for industrial electrical distribution, automated systems, and sensitive medical imaging equipment.
Explore more high-quality circuit breakers and electrical protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A.
It is rated for 440V AC and 12V DC.
The breaking capacity is 6kA, allowing it to safely interrupt fault currents.
This unit features 3 poles.
It has Type D tripping characteristics, suitable for equipment with high inrush currents.
The dimensions are 88mm in height, 52.5mm in width, and 88mm in depth.
This model is designed for DIN rail mounting, facilitating quick installation.
It has IP20 and IP40 ratings, providing protection against finger contact and larger particles.
It is rated for 20,000 AC cycles, enhancing its long-term reliability.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
It features a toggle switch reset actuator for manual control.
It uses thermal and electromechanical tripping mechanisms for overload and short circuit protection.
