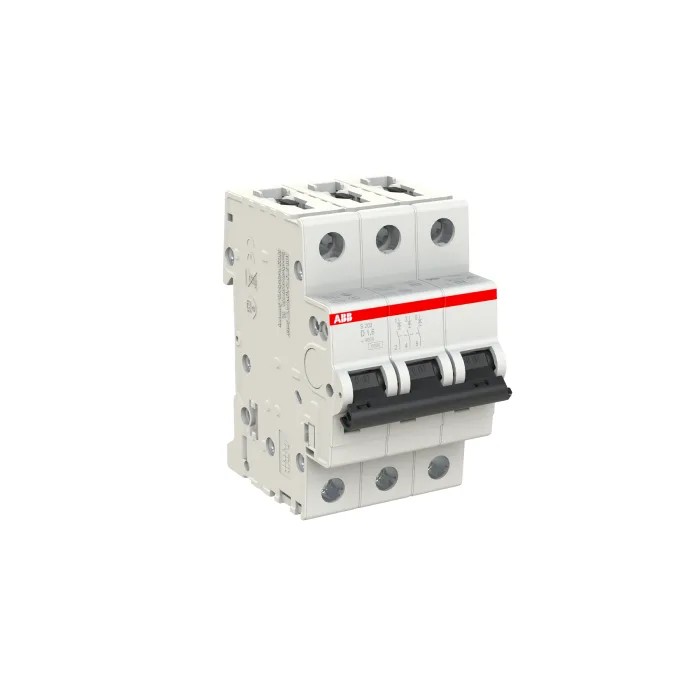

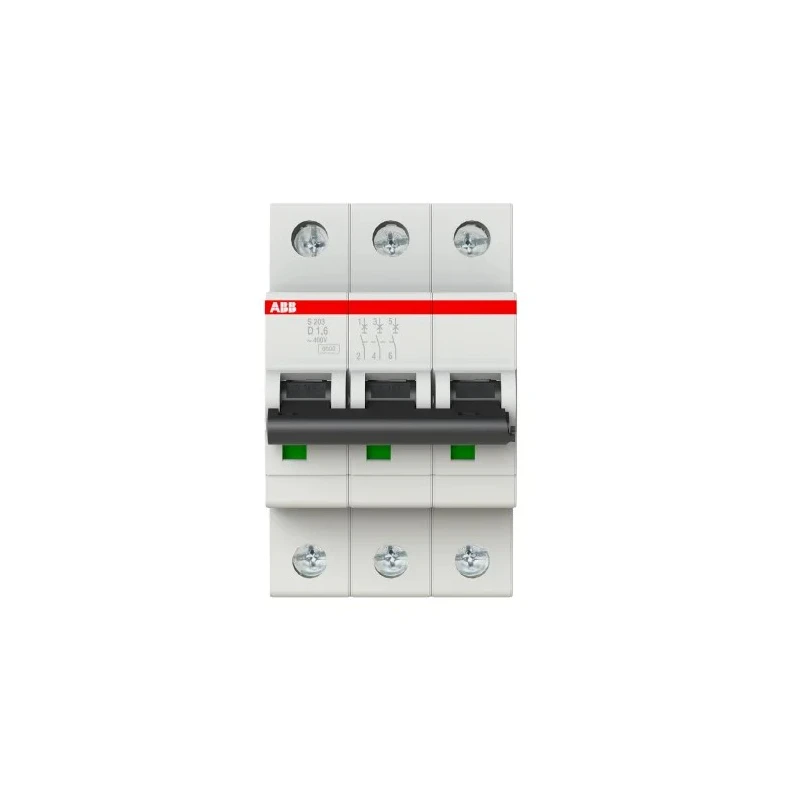

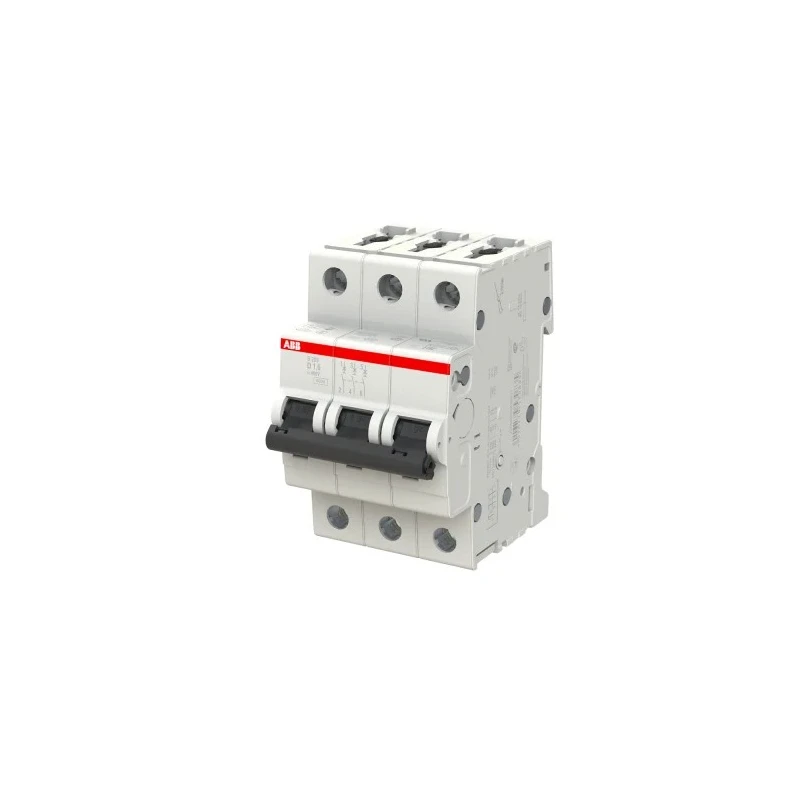

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 1.6A, Type D, 400V AC, 6 kA Breaking 2CDS253001R0971
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253001R0971 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1.6A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | UL1077, IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal, Electromechanic |
Key Features
- Designed for rated operation at 400V AC with a breaking capacity of 6 kA.
- Equipped with thermal and electromechanical tripping for overload and short circuit protection.
- Screw terminal connections ensure a secure and robust conductor fit.
- DIN rail mounting type for easy installation in electrical switchboards.
- Red/green visual indicator for ON and OFF states ensures quick status checks.
- Suitable for motor circuits with high starting currents and commercial building distribution boards.
- Operates reliably within an ambient temperature range of −25°C to +55°C.
- Complies with UL1077, IEC/EN 60947-2, and IEC/EN 60898-1 standards.
Product Description
ABB 2CDS253001R0971 System Pro M Compact S200 Miniature Circuit Breaker offers three-pole overcurrent protection rated at 1.6A and designed for operation at 400V AC with a breaking capacity of 6 kA. This device combines a delayed thermal element for overloads plus an electromechanical release for short circuit protection, ensuring highly selective interruption performance in residential, commercial, and industrial switchboards.
Constructed with screw terminals for strong conductor attachment and designed for DIN rail mounting, this breaker offers convenient installation and maintenance. The red/green indicator clearly shows ON or OFF status, facilitating quick visual confirmation by installers and technicians.
The Type D tripping characteristic is especially suited for circuits with high inrush or motor starting currents. Its robust thermal and electromechanical tripping mechanisms provide dual protection against overloads and short circuits.
Engineered for endurance, it supports 20,000 electrical switching cycles, guaranteeing durability and reliable operation. The housing complies with IP20 and IP40 ratings, providing suitable protection levels in various environments. It meets international safety standards UL1077, IEC/EN 60947-2, and IEC/EN 60898-1.
Ideal applications include motor circuit protection, distribution boards in commercial environments, and various automation control panels. The breaker’s design accounts for environmental operating temperatures ranging from −25°C to +55°C, ensuring dependable performance across temperature extremes.
Rated for 400V AC voltage with a 6 kA breaking capacity. Three poles and 1.6A current rating with Type D tripping suited for high inrush loads. Screw terminal connections and DIN rail mount installation. Red/green Visual ON/OFF indication.
Conforms to UL1077, IEC/EN 60947-2, and IEC/EN 60898-1 standards.
It provides reliable and safe electrical distribution protection for industrial, commercial, and residential applications. Browse more from the ABB System Pro M Compact series at EnvMart for advanced circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, designed for reliable interruption during fault conditions.
It is rated for operation at 400V AC, making it suitable for various electrical applications.
This unit has three poles, providing overcurrent protection for three-phase circuits.
It features Type D tripping characteristics, which are ideal for circuits with high inrush or motor starting currents.
The current rating is 1.6A, suitable for specific applications requiring this level of protection.
This model is designed for DIN rail mounting, facilitating easy installation in electrical switchboards.
The dimensions are 88mm in height, 52.5mm in width, and 69mm in depth.
It uses screw terminal connections, ensuring a secure attachment for conductors.
It operates reliably within an ambient temperature range of −25°C to +55°C.
It complies with UL1077, IEC/EN 60947-2, and IEC/EN 60898-1 standards for safety and performance.
It provides protection against overloads and short circuits through its thermal and electromechanical tripping mechanisms.
The country of origin for this model is Germany, indicating its manufacturing location.
