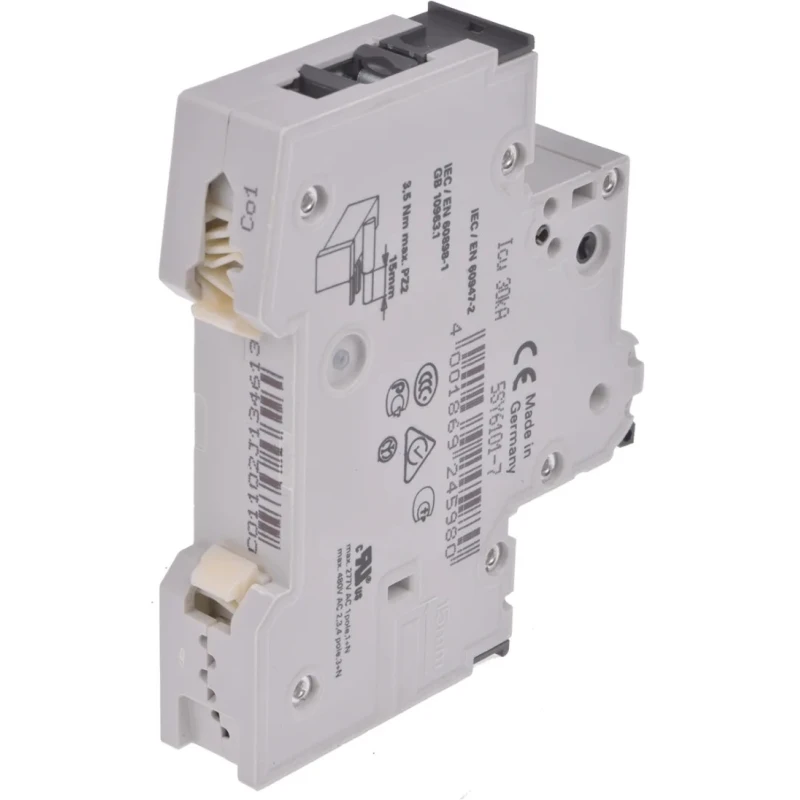

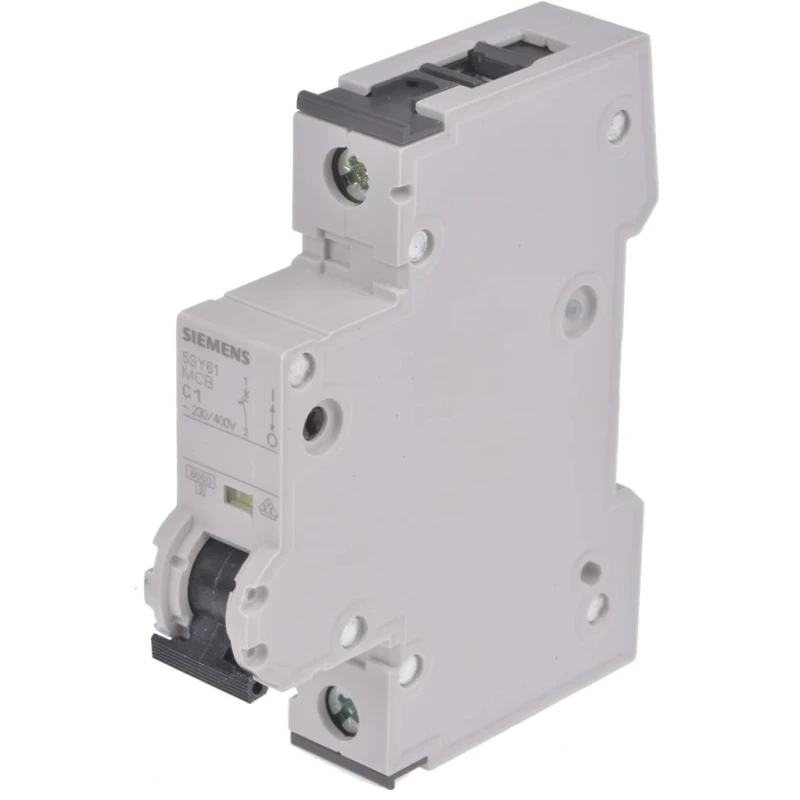

Siemens SENTRON Miniature Circuit Breaker, 1-Pole, 1A, Type C, 400V AC, 72V DC, 6 kA Breaking Capacity 5SY6101-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY6101-7 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | 5SY6 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | CCC, CE, EAC |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
Key Features
- Type C tripping characteristic suitable for inductive loads such as motors and lamps.
- Breaking capacity of 6 kA provides high fault current interruption capability.
- Compact DIN rail mount design with screw terminals for secure connection.
- Durable housing with IP20 rating protects against electric shocks and solid objects larger than 12 mm.
- Halogen-free construction enhances safety by eliminating toxic fumes in fire conditions.
- Mechanical service life of approximately 10,000 operations ensures long-lasting performance.
Product Description
Siemens 5SY6101-7 Miniature Circuit Breaker is a high-quality protective device designed for industrial, commercial, and residential electrical applications. It features a 1-pole configuration with a current rating of 1 ampere and a Type C tripping characteristic, making it ideal for protecting circuits with moderate inrush currents such as motors, lighting, and general line protection.
The breaker is rated for operation at 400 volts AC and 72 volts DC, supporting versatile use in AC and low-voltage DC circuits. It possesses a breaking capacity of 6 kiloamperes, ensuring robust interruption of short-circuit faults to safeguard wiring and connected equipment from damage.
The modular design allows for easy DIN rail mounting and quick, tool-free installation. Screw terminal connections provide a secure and reliable electrical connection, while the IP20 touch-proof housing offers protection against accidental contact with live parts and prevents ingress of solid objects greater than 12 millimeters.
Constructed with a halogen-free housing, this circuit breaker minimizes the emission of harmful fumes during fire incidents, bolstering workplace safety. Its mechanical endurance of about 10,000 operations guarantees dependable service life, reducing maintenance costs.
Rated for 400V AC and 72V DC operation. Type C tripping suitable for inductive and general loads. 6 kA breaking capacity for high fault current protection. Durable construction with halogen-free materials. Compact DIN rail mounting with secure screw terminals.
IP20 protection class for touch-safe handling. Extended mechanical service life around 10,000 cycles. Dimensions: 17.5 mm (W) × 90 mm (H) × 76 mm (D).
This mini circuit breaker is widely used in industrial control panels, public infrastructure installations, manufacturing facilities, and commercial buildings for reliable electrical circuit protection. It aligns with standards including CCC, CE, and EAC and is manufactured in Germany to ensure quality and compliance.
Explore the Siemens SENTRON series for more protection devices and related accessories on EnvMart to meet your electrical safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 6 kA, providing robust interruption of short-circuit faults.
This model is rated for operation at 400V AC and 72V DC, allowing for versatile use in different electrical circuits.
It features a Type C tripping characteristic, which is suitable for inductive loads such as motors and lighting.
It is designed for DIN rail mounting, allowing for easy and secure installation.
The dimensions are 17.5 mm (W) × 90 mm (H) × 76 mm (D).
It uses screw terminals for secure and reliable electrical connections.
It has a mechanical service life of approximately 10,000 operations, ensuring long-lasting performance.
The circuit breaker has an IP20 rating, providing protection against accidental contact with live parts and solid objects larger than 12 mm.
It complies with standards including CCC, CE, and EAC, ensuring quality and safety.
This circuit breaker is manufactured in Germany.
It is widely used in industrial control panels, public infrastructure installations, manufacturing facilities, and commercial buildings for electrical circuit protection.
It features a halogen-free housing, which enhances safety by minimizing toxic fumes in fire conditions.
