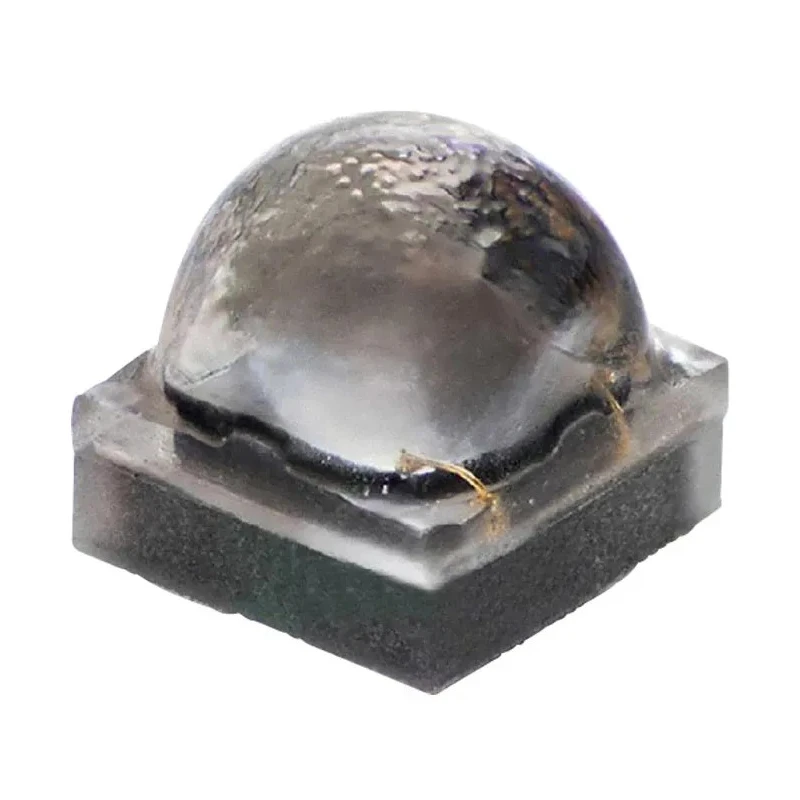

Cree LED 3.5 V Blue LED 1616 Surface Mount XLamp XQ-E XQEBLU-H0-0000-000000Z01

Cree LED XQEBLU-H0-0000-000000Z01 is a high-quality 3.5 V Blue LED from the XLamp XQ-E series designed for surface mounting. This LED provides consistent illumination with an output of 35.2 lumens, suitable for a range of electronic and lighting applications requiring compact and efficient blue light sources.

The XLamp XQ-E family represents Cree's smallest lighting class LEDs available in high density and high intensity versions. This particular model provides a balanced combination of optical symmetry, design consistency, and a tiny footprint to enable improved color mixing and optical control in LED arrays or clusters.

It supports a maximum drive current of 1 A, compliant with JEDEC J‑STD‑020C standard for moisture/reflow sensitivity. The LED’s square, diffused lens and 1616 package dimensions (1.6 x 1.6 x 1.6 mm) ensure easy integration on circuit boards requiring surface mount solutions with precise spatial constraints.

The 130° viewing angle helps deliver broad light dispersion while maintaining luminous efficacy. This LED incorporates a lens color and LED color both in blue with a dominant wavelength of 485 nm, making it suitable for indicators, displays, and electronic component backlighting applications.

Packaging via tape and reel optimizes manufacturing efficiency by facilitating automated pick-and-place mounting processes. The product fully complies with RoHS standards, ensuring adherence to environmental and safety regulations.

Industrial and laboratory use cases include electronic displays, indicator lights, optical sensors, and HVAC control panels where reliable and compact blue LED components are required. The product's country of origin is China.

This LED features a forward voltage of 3.5 V and a maximum forward current of 1000 mA. It emits blue light with a luminous flux of 35.2 lumens and a dominant wavelength of 485 nm. Compact 1616 package and surface mount design enable integration into space-sensitive devices.

The diffused, square lens with 130° viewing angle provides uniform illumination. Packaged in tape & reel format for automated assembly line compatibility. Meets RoHS standards for environmental safety compliance. Maximum drive current is 1 A, suitable for high density lighting designs.

Explore more LEDs and optoelectronics components for enhancing your electronic and industrial lighting applications with EnvMart’s comprehensive catalog.
