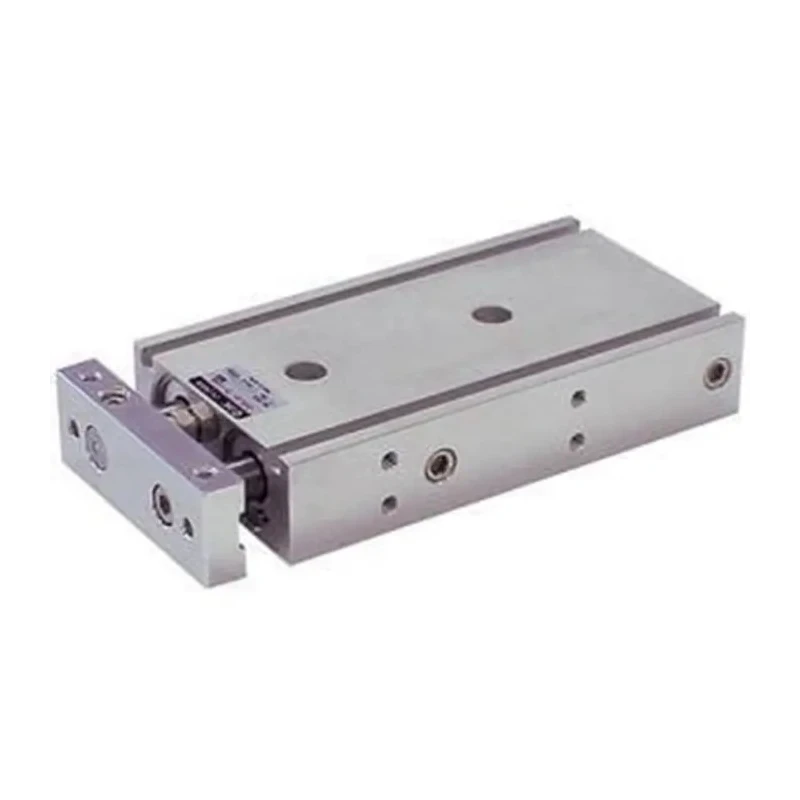

SMC Pneumatic Guided Cylinder 20mm Bore, CXSM Series, 80 mm Stroke, Double Acting, Aluminium Alloy Body, CXSM20-80
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 0.7 Mpa |
| Model | CXSM20-80 |
| Gross Weight | 590g |
| Series | CXSM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 80mm |
| Bore Diameter | 20mm |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Guide Type | Slide Bearing |
| Piston Rod Thread Size | M5 |
Key Features
- Double acting cylinder with 20mm bore diameter for accurate pneumatic control.
- Constructed from high-quality aluminium alloy ensuring lightweight and corrosion resistance.
- Slide bearing guide type for smooth linear motion and reduced wear.
- Rubber bumper cushioning protects the cylinder from impact damage during operation.
- Operating temperature range from -10°C to 60°C suitable for various industrial environments.
- Maximum operating pressure of 0.7 Mpa enabling robust pneumatic performance.
- Piston rod thread size M5 compatible with standard pneumatic fittings.
- Stroke length of 80 mm supporting compact application requirements.
Product Description
The SMC CXSM20-80 Pneumatic Guided Cylinder is engineered for precision pneumatic applications in industrial automation and manufacturing. Featuring a 20mm bore diameter and an 80 mm stroke length, this double acting cylinder delivers reliable linear motion control with effective cushioning provided by rubber bumpers. Its aluminium alloy body provides enhanced strength while maintaining a lightweight profile, making it ideal for use in constrained spaces.
This guided cylinder incorporates slide bearing guides to ensure smooth operation and high resistance to wear over long service cycles. It is designed to operate effectively within a temperature range of -10°C to 60°C and withstands a maximum operating pressure of 0.7 Mpa, making it versatile for various pneumatic system requirements. The piston rod is threaded with an M5 size, allowing standard mounting and accessory integration.
With a compact form and a gross weight of 590 grams, the CXSM20-80 is suitable for use in industrial automation setups, packaging machinery, assembly lines, and laboratory pneumatic systems. Its design ensures precision, durability, and consistent performance in demanding environments.
Double acting cylinder with 20mm bore diameter for accurate pneumatic control. Constructed from high-quality aluminium alloy ensuring lightweight and corrosion resistance. Slide bearing guide type for smooth linear motion and reduced wear.
Rubber bumper cushioning protects the cylinder from impact damage during operation. Operating temperature range from -10°C to 60°C suitable for various industrial environments. Maximum operating pressure of 0.7 Mpa enabling robust pneumatic performance.
Piston rod thread size M5 compatible with standard pneumatic fittings. Stroke length of 80 mm supporting compact application requirements. Gross weight approximately 590 grams for easy handling and installation.
This cylinder is a part of SMC’s CXSM Series, known for its compact size and reliable pneumatic actuation. It suits applications in automation, fluid power systems, manufacturing, and processing industries requiring precise guided pneumatic motion. Explore EnvMart's wide range of Pneumatic Guided Cylinders for diverse industrial setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 80 mm, making it suitable for compact application requirements.
This pneumatic guided cylinder features a bore diameter of 20 mm, allowing for precise pneumatic control.
The maximum operating pressure for this unit is 0.7 Mpa, enabling robust pneumatic performance in various applications.
It operates effectively within a temperature range of -10°C to 60°C, suitable for various industrial environments.
This model utilizes rubber bumper cushioning, which protects the cylinder from impact damage during operation.
The gross weight of this pneumatic guided cylinder is approximately 590 grams, facilitating easy handling and installation.
It incorporates a slide bearing guide type, ensuring smooth linear motion and reduced wear over time.
The piston rod thread size is M5, which is compatible with standard pneumatic fittings.
This cylinder is suitable for applications in industrial automation, packaging machinery, assembly lines, and laboratory pneumatic systems.
The body of this unit is constructed from aluminium alloy, providing a lightweight and corrosion-resistant profile.
This pneumatic guided cylinder is part of the SMC CXSM Series, known for its compact size and reliable pneumatic actuation.
The country of origin for this model is China.
