SMC Pneumatic Compact Cylinder 12mm Bore, 20mm Stroke, Double Acting, Aluminium Alloy Body CQMB12-20

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder 12mm Bore, 20mm Stroke, Double Acting, Aluminium Alloy Body CQMB12-20



Category Pneumatic Cylinders & Actuators Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Model	CQMB12-20
Gross Weight	69g
Mount Type	Through Hole
Series	CQM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	20mm
Bore Diameter	12mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M5 x 0.8

Key Features

Double acting type ensures bidirectional force application for versatile piston movement.
Constructed with aluminium alloy body for lightweight and durability.
Through hole mount type enables secure and easy installation in compact spaces.
Maximum operating pressure of 1 MPa and maximum piston speed up to 500 mm/s.
Equipped with rubber bumpers for effective cushioning reducing impact noise and vibration.
Single rod type with M5 x 0.8 metric thread for compatibility with standard fittings.
Designed for operating temperatures ranging from -10°C to 70°C, suitable for a range of industrial environments.
Provides non-rotating accuracy within ±0.2°, ensuring precise linear guide motion.

Product Description

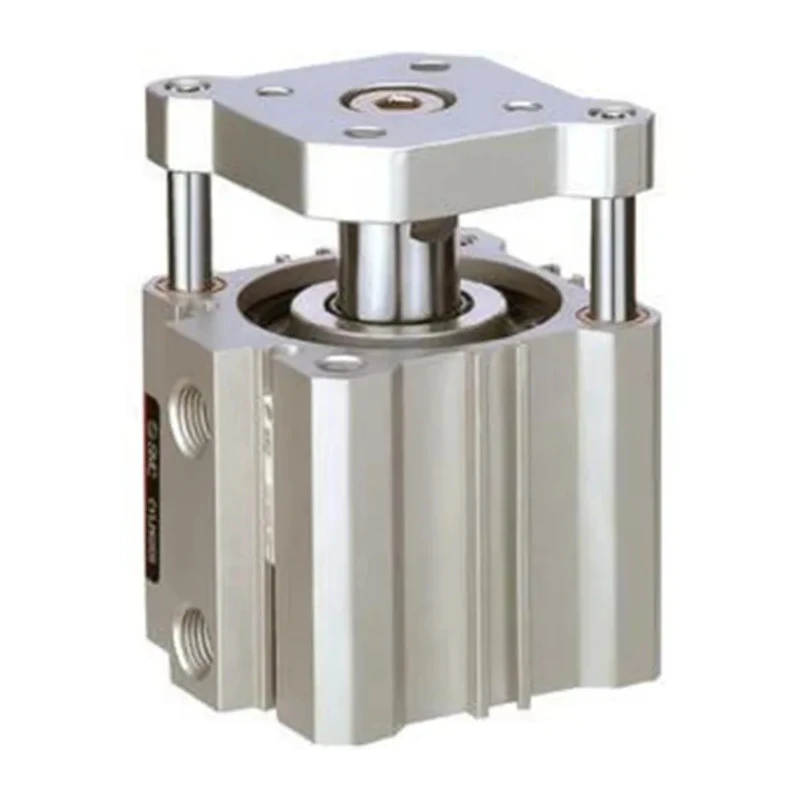

The SMC CQMB12-20 Pneumatic Compact Cylinder is engineered specifically for industrial and manufacturing applications where compactness combined with reliable performance is critical. With a bore diameter of 12mm and stroke length of 20mm, this double acting cylinder features a robust aluminium alloy body that ensures lightweight construction and corrosion resistance. Its integrated guide rod and plate provide increased lateral load resistance - approximately four times that of the similar CQ2 series - offering exceptional stability and non-rotating accuracy up to ±0.2° during operation.

The cylinder is designed with a through hole mount type ensuring straightforward installation in limited space environments. Rubber bumpers cushion the piston movement, effectively minimizing operational noise and impact wear in automated equipment. It is optimized for operating pressures up to 1 MPa and supports piston speeds as high as 500 mm/s, enabling it to meet the needs of fast-paced industrial processes.

Rated for temperature operation from -10°C to 70°C, the CQMB12-20 is suitable for diverse environments such as manufacturing assembly lines, robotic automation, packaging, and material handling systems. The single rod configuration with a metric M5 x 0.8 threaded rod enhances mounting flexibility and compatibility across various pneumatic setups.

This compact cylinder is well-suited for industrial automation, laboratory automation, packaging machinery, food and beverage processing equipment, and HVAC systems where precise and durable pneumatic actuation is required. Its high lateral load resistance and non-rotating accuracy further extend its use in machining and tooling automation.

Double acting piston design for bidirectional force. Aluminium alloy body provides strength and lightweight. Through hole mount type eases installation. Rubber bumper cushioning reduces noise and impact. Maximum operating pressure 1 MPa with piston speed 500 mm/s.

Operating temperature range -10°C to 70°C. Metric threaded piston rod M5 x 0.8. Non-rotating accuracy within ±0.2° for precise motion. Explore the wide selection of pneumatic cylinders and actuators to find solutions that match your industrial automation needs at EnvMart.

Explore more products in our Pneumatic Cylinders & Actuators category.
