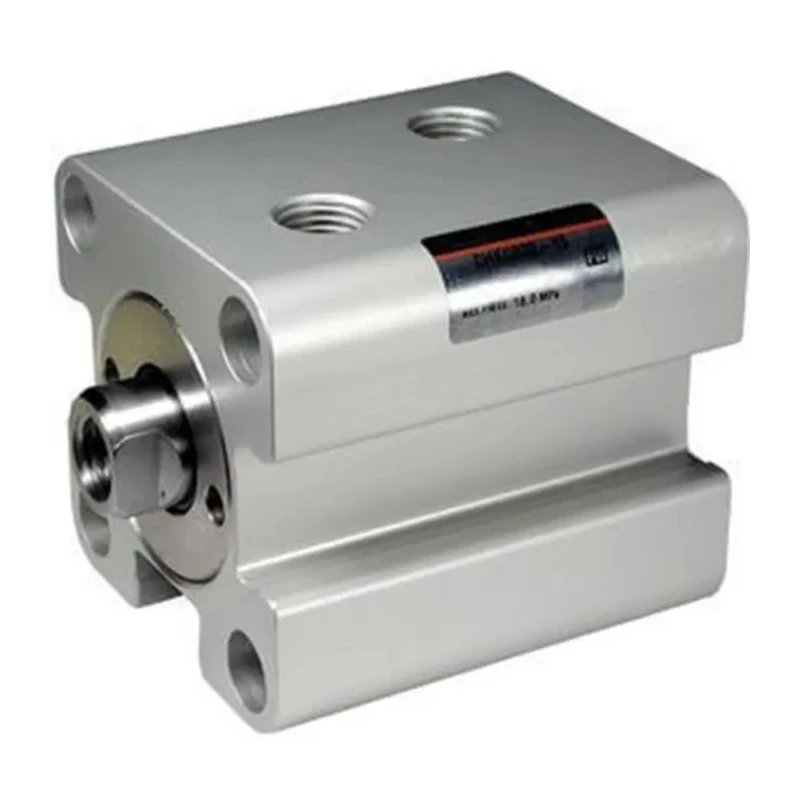

SMC Fixed Hydraulic Cylinder Double Acting Aluminium Alloy Bore 25mm Stroke 40mm 16MPa CHDKGB25-40
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Material | Aluminium Alloy |
| Maximum Operating Pressure | 16 Mpa |
| Mounting | basic type |
| Model | CHDKGB25-40 |
| Series | CHDKG |
| Sub Type | Hydraulic Cylinder |
| Stroke Length | 40mm |
| Nominal Pressure | 16MPa |
| Bore Diameter | 25mm |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Bore sizes | 20∼25 |
| Pull Force | 5.38kN |
| Push Force | 7.84kN |
| Rod Thread Size | M12 |
Key Features
- Constructed with aluminium alloy for durability and corrosion resistance.
- Double acting action type provides both push and pull force capabilities.
- Bore diameter of 25mm and stroke length of 40mm offers precise hydraulic movement.
- Maximum operating pressure rating of 16MPa ensures reliable performance under high pressure.
- Rod thread size is M12 facilitating secure mounting and connection.
- Pull force of 5.38kN and push force of 7.84kN suit demanding mechanical operations.
- Complies with RoHS standards ensuring environmental and safety compliance.
- Designed as a basic type mounting JIS standard compact hydraulic cylinder.
Product Description
The SMC CHDKGB25-40 Fixed Hydraulic Cylinder from the CHDKG series is a precision-engineered double acting cylinder designed for industrial, manufacturing, pneumatic, and hydraulic system applications where compact size and reliable force are essential. Manufactured from high-quality aluminium alloy, this hydraulic cylinder provides excellent strength and corrosion resistance suitable for demanding environments.
This cylinder features a bore diameter of 25mm and a 40mm stroke length, producing a push force of 7.84kN and a pull force of 5.38kN with a maximum operating pressure of 16MPa. The M12 rod thread size allows for secure mounting and effective integration into hydraulic systems.
The compact round body JIS standard design allows for flexible mounting options in confined spaces. It is capable of accommodating auto switches for enhanced system automation and control, making it suitable for industrial fluid power tools and equipment.
Applications include industrial machinery automation, fluid power tooling, manufacturing plants, and commercial hydraulic systems requiring precise and reliable actuation. The robust construction and compliance with RoHS ensure safe and environmentally responsible use.
Constructed with aluminium alloy for durability and corrosion resistance. Double acting action type provides push and pull force capabilities essential for versatile hydraulic operations. Bore diameter of 25mm and stroke length of 40mm offers precise hydraulic movement in a compact form factor.
Maximum operating pressure rating of 16MPa ensures the cylinder withstands high-pressure hydraulic environments. Rod thread size M12 enables easy and secure mechanical connection and mounting. Pull force of 5.38kN and push force of 7.84kN facilitate effective mechanical actuation.
Complies with RoHS environmental and safety standards. Basic mounting type suitable for a variety of installation requirements. Manufactured in Japan, ensuring superior quality and engineering standards.
An ideal choice for hydraulic and pneumatic tool setups in industries such as manufacturing, material handling, automation, and commercial fluid power applications. Explore more high-quality Hydraulic Cylinders in the Industrial Tools & Equipment category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic cylinder is 16MPa.
It generates a push force of 7.84kN and a pull force of 5.38kN.
The bore diameter is 25mm and the stroke length is 40mm.
This model utilizes a double acting action type, providing both push and pull force capabilities.
The rod thread size is M12, facilitating secure mounting and connection.
It is constructed from aluminium alloy, offering durability and corrosion resistance.
Yes, it complies with RoHS standards, ensuring environmental and safety compliance.
The country of origin is Japan.
It supports a basic type mounting, suitable for various installation requirements.
This hydraulic cylinder is suitable for applications in industrial machinery automation, fluid power tooling, and manufacturing plants.
It belongs to the CHDKG series of hydraulic cylinders.
The key dimensions include a bore diameter of 25mm and a stroke length of 40mm; specific overall dimensions are not provided.
