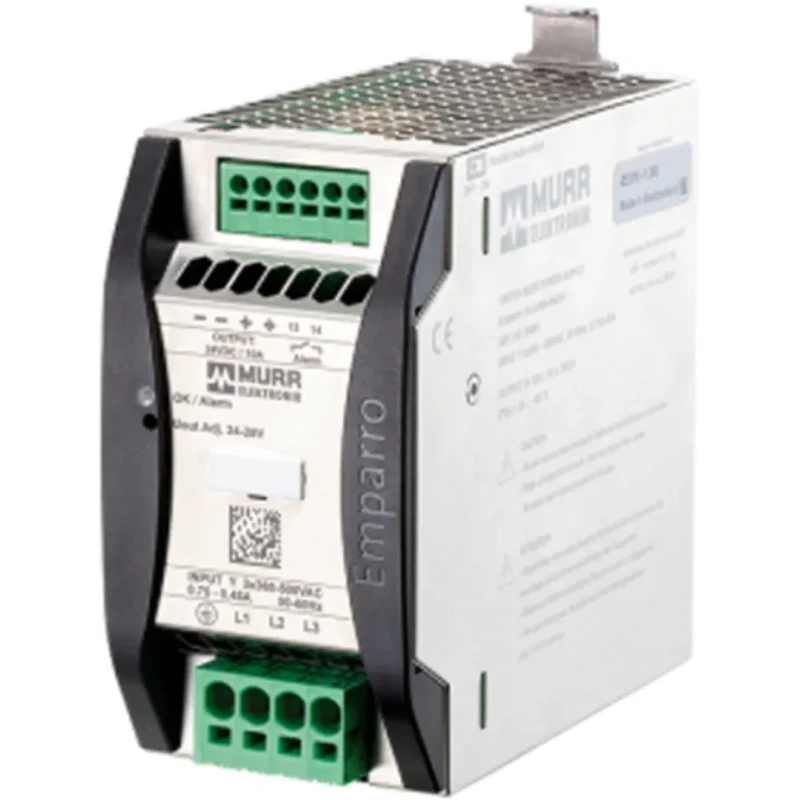

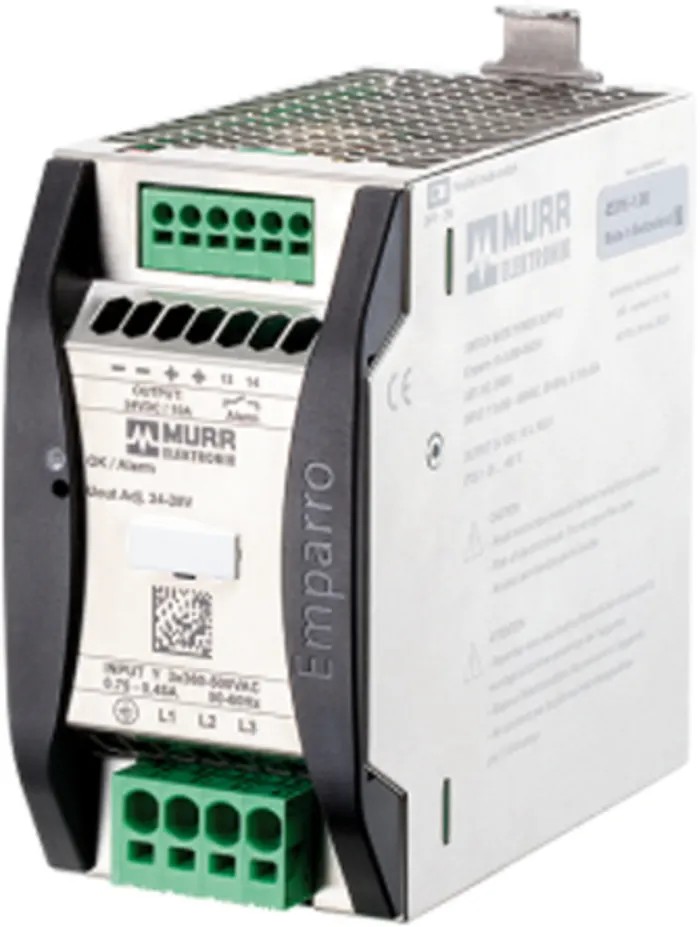

Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 572V AC/DC Input 28V DC, 10 A Output, 240 W 85691

Free Delivery in India | Lowest Global Shipping Charges

Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 572V AC/DC Input 28V DC, 10 A Output, 240 W 85691

Name: Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 572V AC/DC Input 28V DC, 10 A Output, 240 W 85691
Brand: Murrelektronik Limited
SKU: 193336



Category DIN Rail Power Supplies Brand Murrelektronik Limited Condition New

Specifications

Country of Origin	Czech Republic
Brand	Murrelektronik Limited
Power	240W
Efficiency	93.7%

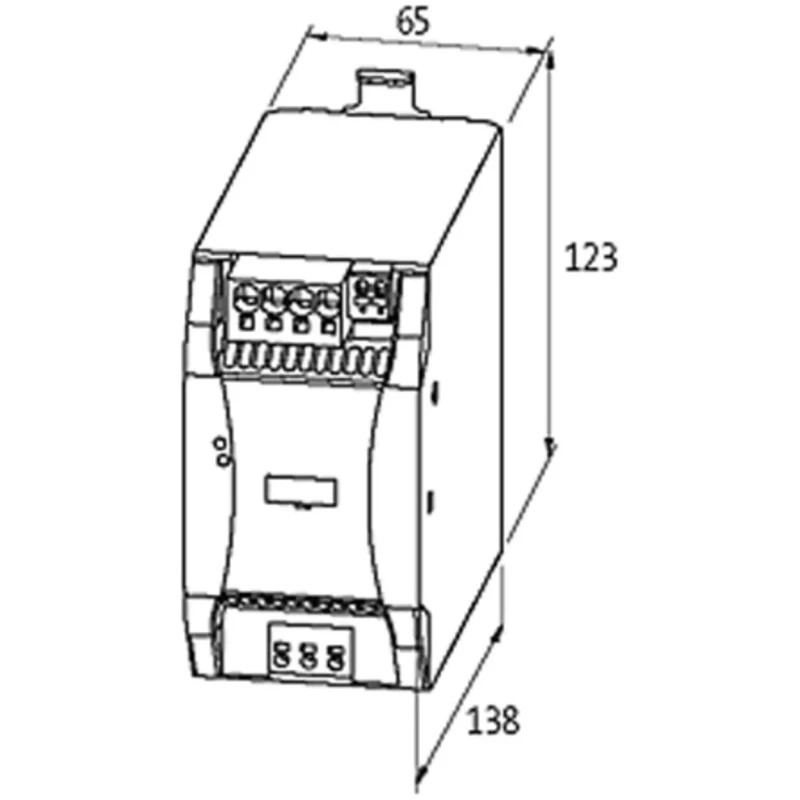

Height	143mm
Model	85691
Depth	143mm
Width	65mm
Series	EMPARRO
Output Current	10A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	572V ac
Maximum Output Voltage	28V dc
Minimum Input Voltage	324V ac

Key Features

Supports a wide input voltage range with maximum input voltage of 572V AC and minimum of 324V AC.
Provides up to 28V DC output voltage with an output current of 10 A.
Implements 150% power boost for at least 4 seconds for starting higher loads easily.
Operates efficiently up to 93.7% efficiency with low ripple factor and noise of 20mV.
Designed for operation in harsh conditions between -40°C and 70°C.
Features metal housing with protective EMC characteristics and LED status indicator.
Uses push-in terminals for easy wiring and connection.
Complies with standards including EN 61204-3, cULus, SEMI F47, EN 60715, and others for reliable performance.

Product Description

Murrelektronik Limited 85691 EMPARRO Switched Mode DIN Rail Power Supply is engineered for industrial and automation applications requiring dependable power delivery. This power supply supports universal AC/DC input voltage from 324V ac to 572V ac and up to 450V DC ensuring compatibility with diverse power environments.

With a rated output of 28V DC at 10A and maximum power of 240W, it provides constant current control, limiting overloads to nominal current levels and enabling a power boost up to 150% for short durations to handle heavy starting loads.

The device incorporates a metal housing designed for EMC protection and thermal management, allowing operation in ambient temperatures ranging from -40°C to 70°C, suitable for demanding manufacturing, factory automation, and industrial control systems.

Key features include a ripple factor and noise level of just 20mV, push-in terminals for secure and efficient wiring, and a high efficiency rating of up to 93.7% for energy-saving operation.

This power supply is certified with industry standards such as EN 61204-3, cULus recognition, SEMI F47 compliance, EN 60715 mounting compatibility, and meets EN 61000-3-2 and EN 60950-1 safety and EMC standards ensuring reliability and safety in professional installations.

Supports wide input voltage ranges with robust design. 150% power boost for at least 4 seconds to start large loads. High efficiency of up to 93.7% reduces energy loss. Compact size for versatile DIN rail mounting options.

Metal housing provides EMC protection and durability. Operating temperature range from -40°C to 70°C for harsh environments. Push-in terminal connections for easy installation. LED status indicator for operational monitoring.

Meets multiple international standards and certifications.

This power supply is ideal for industrial machinery, semiconductor fabrication, factory automation, and electro-mechanical apparatus where reliable DC power with adjustable output voltage between 24V DC to 28V DC and stable current is required.
